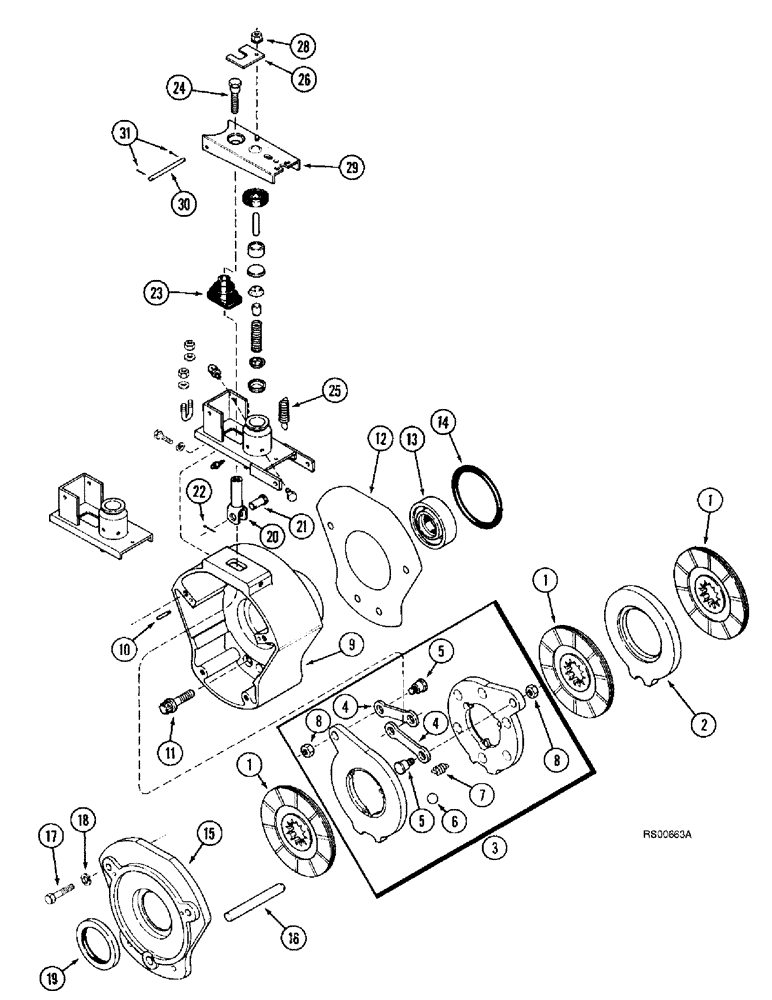

Запчасти Case IH 1680 (7-04) - MASTER BRAKES (5.1) - BRAKES

1

184204C2

DISC

- middle

6шт.

2

184203C1

DISC

- intermediate

2шт.

3

184202C93

DISC

ASSEMBLY - brake actuating, Includes: Ref. 4 - 8

2шт.

4

1276923C2

LINK

- actuating

2шт.

5

A41865

BOLT

- link

2шт.

6

211-1028

BALL,7/8" Dia

- chrome alloy steel, 7/8 inch, grade 24

5шт.

7

359859R1

SPRING

- extension

3шт.

8

425-158

JAM NUT,Jam, 1/2"-20, G5

2шт.

9

188882C92

HOUSING ASSY.

HOUSING ASSEMBLY - brake, Includes: Ref. 10

2шт.

10

37-1516

DOWEL,5/16" x 1"

PIN - dowel, 5/16 x 1 inch, hardened

2шт.

11

380-21028

12 PT SCREW,Flg, 5/8" - 11 x 1 3/4", Full Thd

SCREW - 12 point flange, 5/8 x 1-3/4 inch

8шт.

12

401898R1

SHIM

- brake housing, .003 inch thick

1шт.

12

401899R1

SHIM

- brake housing, .005 inch thick

1шт.

12

401900R1

SHIM

- brake housing, .007 inch thick

1шт.

13

184072C1

OIL SEAL,55.88mm ID x 76.2mm OD x 9.5mm Thk

- oil

2шт.

14

238-5427

O-RING,0.275" Thk x 4.725" ID, -427, Cl 5, 75 Duro

2шт.

15

184330C92

CAP ASSY.

COVER ASSEMBLY - brake housing, Includes: Ref. 16

2шт.

16

37-11496

DOWEL,7/8" x 6"

PIN - dowel, 7/8 x 6 inch, hardened

1шт.

17

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

8шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

19

401872R91

SEAL,73.03mm ID x 110.24mm OD x 11.1mm Thk

- brake housing cover

2шт.

20

1321923C1

CLEVIS

YOKE - 1/2-20 ID x 7/8 inch OD

2шт.

21

27-10137

CLEVIS PIN,5/8" x 1 3/8"

PIN - clevis, 5/8 x 1-3/8 inch

2шт.

22

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.

23

184321C1

COVER

BOOT - brake housing

2шт.

24

1321973C1

ROD

- brake pull

2шт.

25

312824R1

SPRING

- brake lever return

2шт.

26

184282C2

BAR

- brake adjustment

2шт.

28

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

29

1277200C2

LEVER

- brake

2шт.

30

1308992C1

PIN,9.53mm OD x 102mm L

- lever

2шт.

31

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

4шт.
