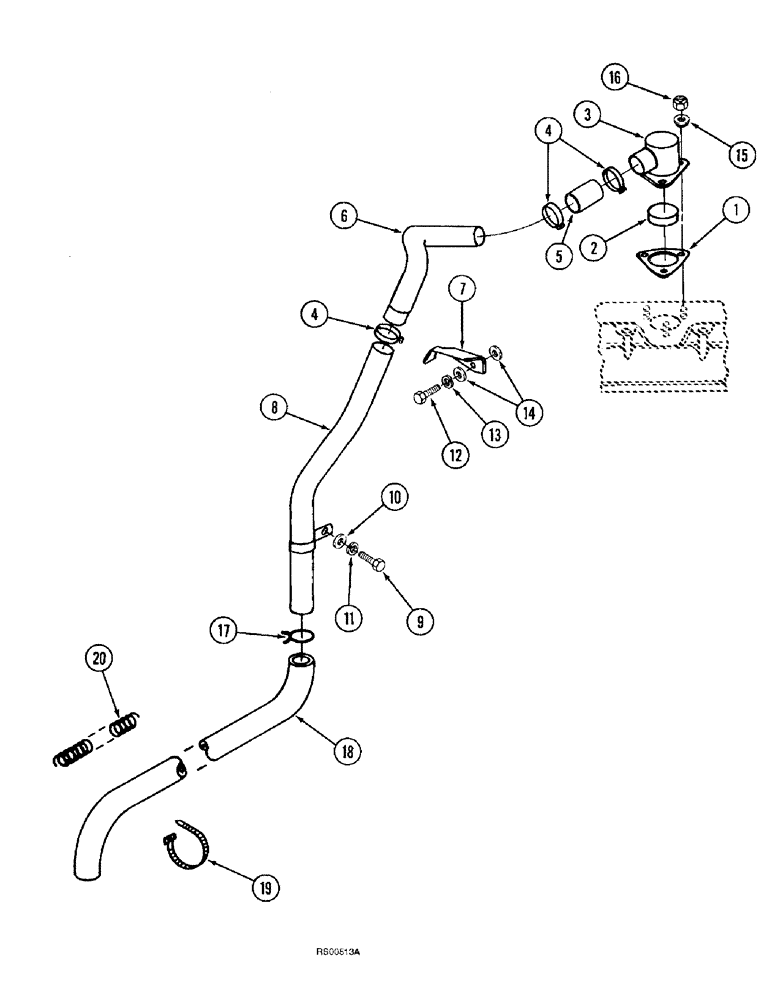

Запчасти Case IH 1680 (2-30) - ENGINE BREATHER HOSE, DTI-466C DIESEL ENGINE (01) - ENGINE

1

1342832C1

GASKET

- breather housing

1шт.

2

690233C1

FILTER, ELEMENT

ELEMENT - breather

1шт.

3

690354C1

BODY

HOUSING - breather

1шт.

4

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

CLAMP, HOSE, , Adjustable #24, 1.06/2.00 Type F Worm

3шт.

5

690460C1

HOSE

Breather Tube

1шт.

6

690457C1

HOSE

TUBE - upper breather

1шт.

7

690458C1

SUPPORT

- breather tube

1шт.

8

690594C1

BREATHER,18.31, 1.1" Length

TUBE - lower breather

1шт.

9

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, grade 8

1шт.

10

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- flat, 11/32 x 11/16 x 3/32 inch, hardened

1шт.

11

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

12

326-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

13

492-11038

LOCK WASHER,3/8"

1шт.

14

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

2шт.

15

691644C1

RUBBER WASHER

- rubber bonded, 5/16 inch

3шт.

16

231-1435

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

3шт.

17

610320C1

CLAMP

- spring type, No. 30

1шт.

18

183616C1

HOSE,38.1 mm ID x 1168.40 mm, SAE 20R1

- 1168 mm (46 inch) long

1шт.

19

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

2шт.

20

1301436C1

SPRING

- breather hose internal support

1шт.
