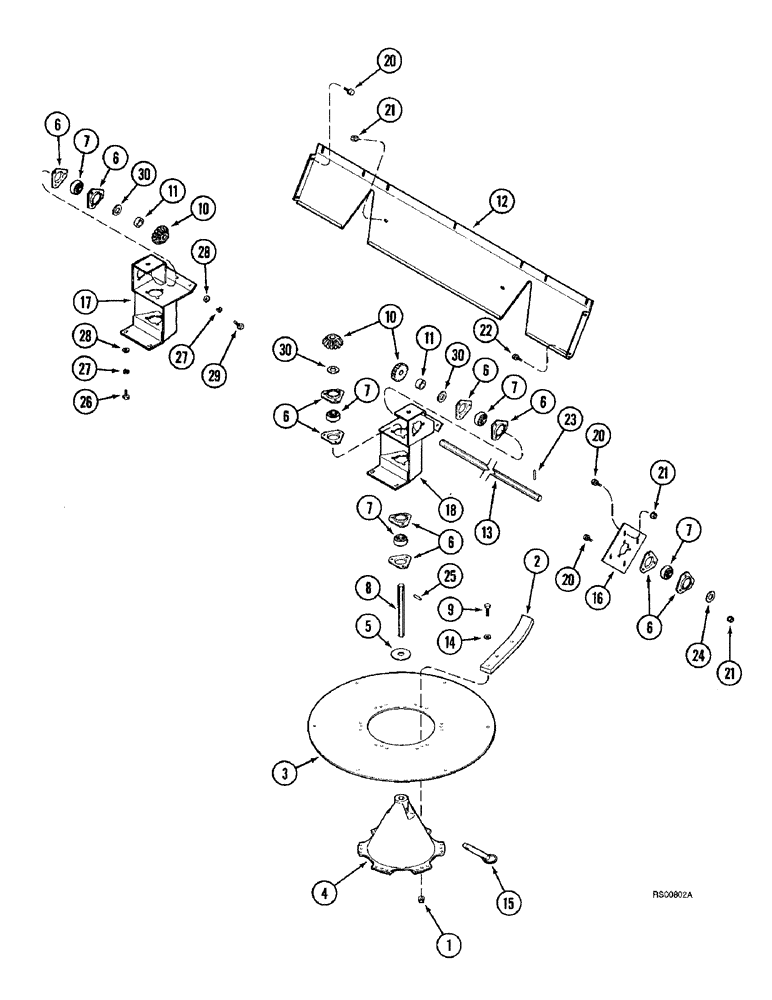

Запчасти Case IH 1680 (9F-02) - STRAW SPREADER (19) - STRAW SPREADER & CHOPPER

1

231-5315

FLANGE NUT,Flg, 5/16"-18

NUT, LOCK, Flg, 5/16"-18

24шт.

2

194197C2

STRIP,50mm W x 363mm L

- rubber (Corn and Grain)

12шт.

2

1302790C1

STRIP

- rubber (Rice)

12шт.

3

192254C1

DISC

RETAINER - strip (Corn and Grain)

2шт.

3

1302791C1

RETAINER

- strip (Rice)

2шт.

4

188218C6

CONE,Spreader Support

SUPPORT - straw spreader cone

2шт.

5

183041C1

WASHER

WASHER - flat, special

2шт.

6

571424R1

FLANGE

- bearing

14шт.

7

195293C91

BALL BEARING,0.89" ID x 2.04" OD x 1"

BEARING - straw spreader

7шт.

8

192240C1

SHAFT

- straw spreader, 10-1/2 inch long

2шт.

9

326-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 8

24шт.

9

326-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 8

12шт.

9

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

12шт.

10

194194C1

GEAR

SET - spreader drive, replaces 185410C1 gear set

2шт.

11

152261C1

SPACER,1 1/4" Tube x 1 7/8"

- 1-1/4 x 5/8 inch

2шт.

12

195144C5

SHEET

SUPPORT - dust shield

1шт.

13

192241C4

SHAFT

- cross, shaft

1шт.

14

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

28шт.

15

1319303C1

PIN

- spreader retaining

2шт.

16

186506C1

SUPPORT

PLATE - bearing

1шт.

17

1317897C2

BRACKET

SUPPORT - spreader drive

1шт.

18

1345025C1

SUPPORT

- speader drive, right-hand, replaces 1317898C1 support

1шт.

20

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

28шт.

21

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

29шт.

22

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

23

38-32424

PIN,3/8" x 1 1/2", Coiled

1шт.

24

495-81068

WASHER,1 1/32" x 1 1/2" x .030"

- flat, 1-1/32 x 1-1/2 x 1/32 inch

7шт.

25

38-31624

ROLL PIN,1/4" x 1 1/2", Coiled

PIN, ROLL, 1/4" x 1 1/2", Coiled

2шт.

26

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

27

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

28

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

8шт.

29

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

30

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

- flat, 1-1/32 x 1-1/2 x 1/16 inch

6шт.
