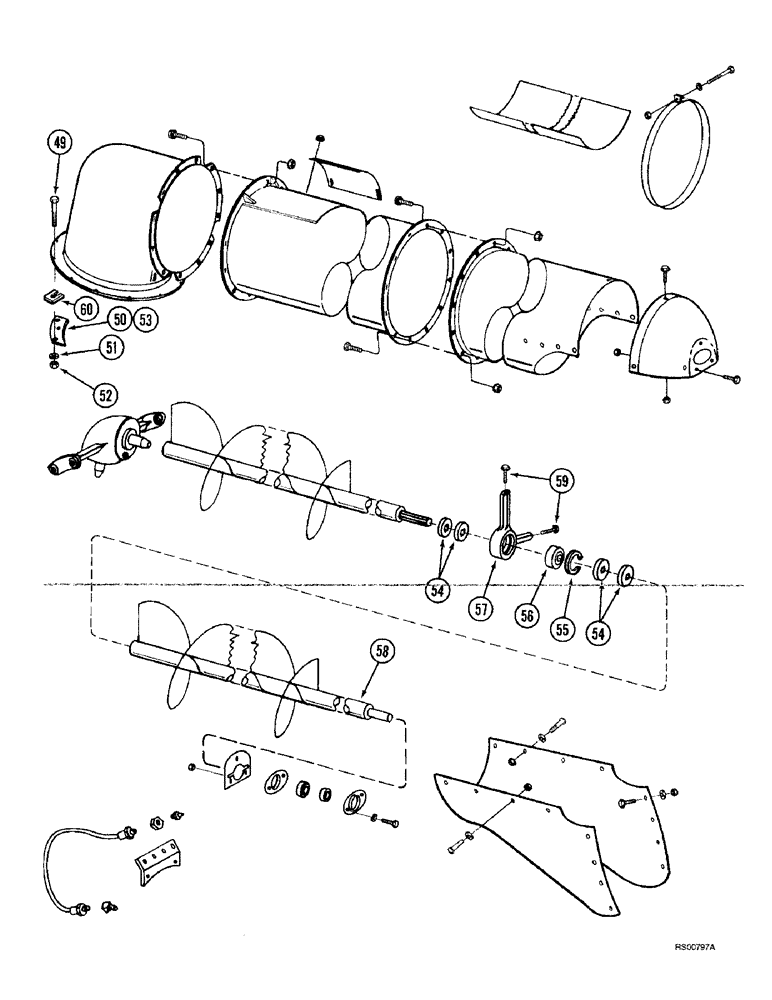

Запчасти Case IH 1680 (9E-22) - UNLOADER, UPPER TUBE AND AUGER (CONTD) (17) - GRAIN TANK & UNLOADER

49

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

4шт.

50

186657C2

SUPPORT

- front keeper

1шт.

51

492-11038

LOCK WASHER,3/8"

4шт.

52

425-106

NUT,3/8"-16, Cl 5

4шт.

53

193472C2

PLATE

BAR - unloader tube keeper

1шт.

54

1277949C1

SPACER

- split auger

4шт.

55

360936R1

RING

- snap (split auger only)

1шт.

56

203389C91

BALL BEARING,25.43mm Hex x 62mm OD x 24mm W

BEARING - ball (split auger only)

1шт.

57

1317859C1

SUPPORT

- bearing (split auger only)

1шт.

58

1317680C2

AUGER

- unloader, rear split, 172 inch (split auger only)

1шт.

58

1321147C2

AUGER

- unloader, rear split, 208 inch (split auger only)

1шт.

59

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch (split auger only)

2шт.

60

151670C1

SHIM

SHIM - .036 inch

1шт.
