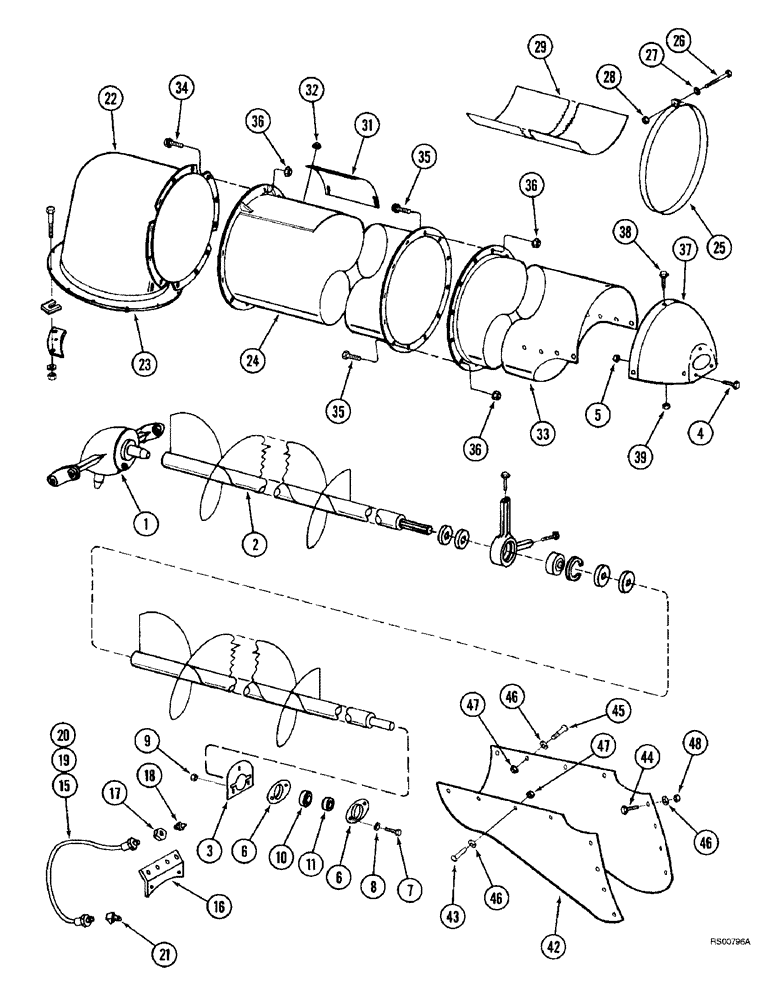

Запчасти Case IH 1680 (9E-20) - UNLOADER, UPPER TUBE AND AUGER (17) - GRAIN TANK & UNLOADER

1

1324931C91

HOUSING

ASSEMBLY - unloader upper gear, See Figure 9E-30

1шт.

1324931C91R

REMAN-GEARBOX

1680 PRIOR TO S/N JJC0045689 (1/86-12/92)

1шт.

1324931C91C

CORE-GEARBOX

Return Number

1шт.

2

1317935C1

AUGER

- unloader, one piece, 172 inch

1шт.

2

1317891C1

AUGER

- unloader, front split, 172 inch

1шт.

3

182838C1

SUPPORT

- bearing

1шт.

4

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

3шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

3шт.

6

F9417

FLANGE

- bearing

2шт.

7

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

2шт.

8

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

10

160796C91

BALL BEARING,25.4mm ID x 51.99mm OD x 16.56mm W

BEARING - ball, unloader outer

1шт.

11

564853R11

COLLAR

- locking, bearing

1шт.

15

937779R91

HOSE,1/8" ID x 22" L

FLEXIBLE HOSE, , Grease 0.14" ID x 22.00"

2шт.

16

185134C1

SUPPORT

- lubrication hose

1шт.

17

F53473

LOCK NUT,1/8-27 NPSM

- special, hose adapter

4шт.

18

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

4шт.

19

937781R92

HOSE,3.02mm ID x 686mm L

Grease 3.56 mm ID x 686.00 mm

1шт.

20

937782R92

HOSE,3.02mm ID x 787mm L

Grease 3.56 mm ID x 787.00 mm

1шт.

21

219-438

ADAPTER,45 Degree, 1/4"-1/8 NPTF

FITTING - grease, 45 degree, 1/4-28 taper x 13/16 inch

4шт.

22

193417C94

ELBOW

ASSEMBLY - unloader upper tube, Includes: Ref. 23

1шт.

23

193418C3

FLANGE

- unloader elbow

1шт.

24

1317738C1

TUBE,2285 mm Length

- unloader, plain, front, 89.96 in.

1шт.

24

1317873C1

UNLOADING TUBE,2285 mm Length

TUBE - unloader, perforated, front, 89.96 in.

1шт.

25

178166C1

CLAMP

- tube retaining

4шт.

26

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

4шт.

27

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

28

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

29

178165C2

COVER

- auger tube, perforated, use with 1317935C1 auger

1шт.

31

178158C1

PLATE

- inspection, front tube

1шт.

32

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

33

1317783C4

TUBE,2084 mm Length

- unloader, rear, 82.47 inch

1шт.

33

1317899C3

TUBE,2998 mm Length

- unloader, rear, 118.031 inch

1шт.

34

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

18шт.

35

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, self-locking, special, 3/8 NC x 1 inch

6шт.

36

231-5146

FLANGE NUT,3/8"-16

24шт.

37

182837C2

CAP

- end, unloader tube

1шт.

38

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

39

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

42

113488A1

SPOUT, DISCHARGE

SPOUT - down, unloader tube

1шт.

43

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

4шт.

44

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

4шт.

45

477-73120

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/4"

4шт.

46

106969R1

WASHER

- flat, 11/32 x 1-1/4 x 1/16 inch

16шт.

47

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

8шт.

48

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

4шт.
