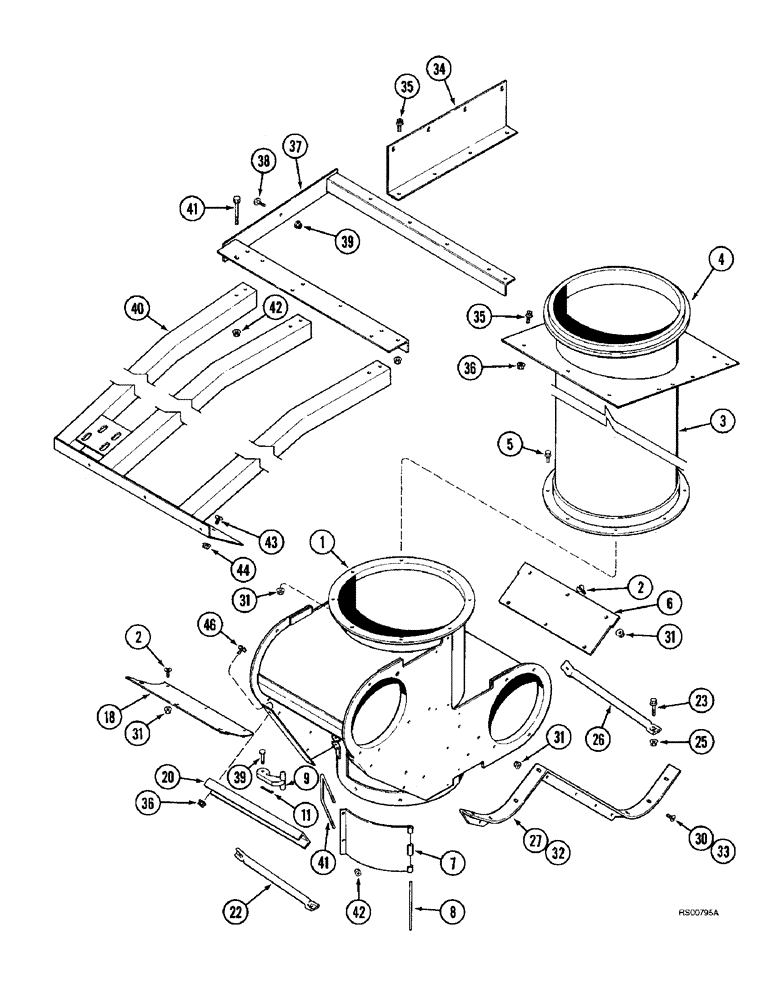

Запчасти Case IH 1680 (9E-18) - UNLOADER, LOWER HOUSING (17) - GRAIN TANK & UNLOADER

1

192475C3

HOUSING

- unloader, lower

1шт.

2

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

28шт.

3

192830C92

TUBE

ASSEMBLY - auger, Includes: Ref. 4

1шт.

4

178134C2

RING

- tube

1шт.

5

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

8шт.

6

191087C1

PLATE

COVER - unloader housing, front bottom

1шт.

7

1970539C1

FLAP

DOOR - auger, lower, with decal

1шт.

8

393069R1

PIN,6.35mm OD x 147.3mm L

ROD - pivot, door

1шт.

9

155909C1

LATCH

- door

1шт.

10

439-1420

HEADED PIN,1/4" x 1 1/4"

PIN - headed, 1/4 x 1-1/4 inch, grade 2

1шт.

11

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

12

195332C1

U-BOLT,1/4" - 20 x 2 1/2", Low Carbon Steel

BOLT - U-type

1шт.

13

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.

18

191110C1

COVER

COVER - unloader housing, rear bottom

1шт.

20

192834C1

CHANNEL

- support

1шт.

21

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

2шт.

22

191112C1

ROD

- support, rear housing

1шт.

23

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

2шт.

25

231-5146

FLANGE NUT,3/8"-16

2шт.

26

191111C1

ROD

- support, front housing

1шт.

27

192828C1

SUPPORT

- housing, left-hand

1шт.

30

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

20шт.

31

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

40шт.

32

192829C1

SUPPORT

- housing, right-hand

1шт.

33

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

2шт.

34

191189C1

SUPPORT

BRACKET - support

1шт.

35

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

11шт.

36

231-5146

FLANGE NUT,3/8"-16

11шт.

37

1327543C1

SUPPORT

- housing, auger

1шт.

38

1319406C1

SERRATED SCREW,Cross Rec Truss Hd, 3/8" - 16 x 1", Spcl

- self-locking, truss head Phillips, special, 3/8 NC x 1 inch

3шт.

39

231-5146

FLANGE NUT,3/8"-16

3шт.

40

1327507C1

SUPPORT

- cylinder

1шт.

41

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

6шт.

42

231-5146

FLANGE NUT,3/8"-16

6шт.

43

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch

7шт.

44

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

7шт.
