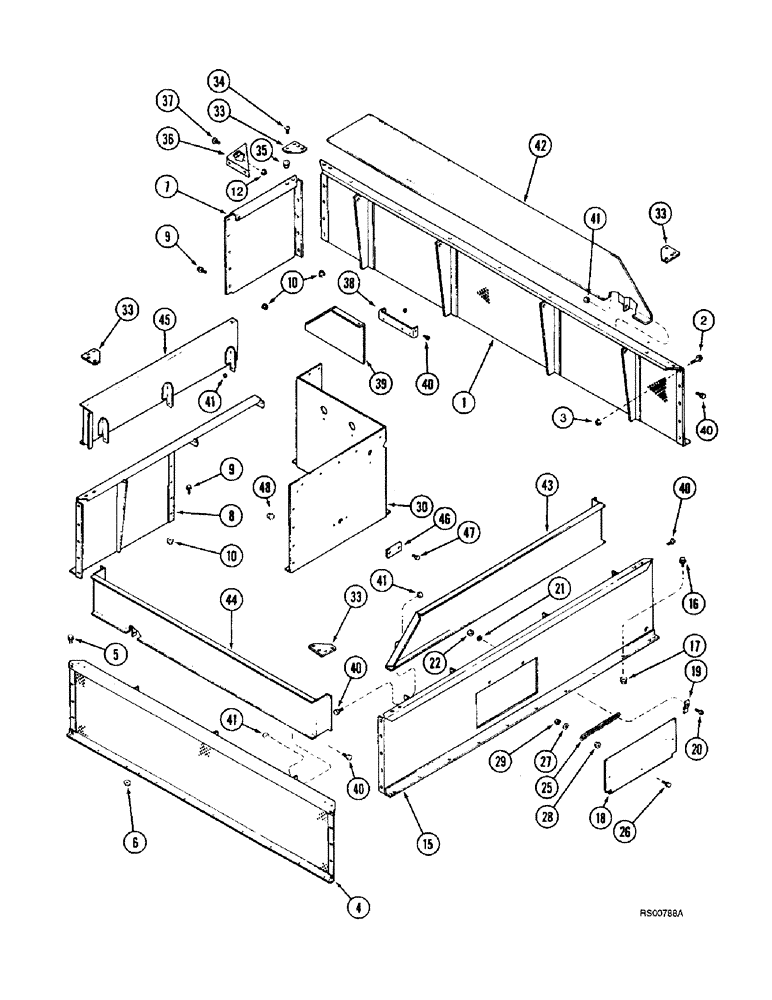

Запчасти Case IH 1680 (9E-04) - GRAIN TANK, EXTENSIONS (17) - GRAIN TANK & UNLOADER

1

1327652C4

SHIELD

EXTENSION - grain tank, front

1шт.

2

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

25шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

25шт.

4

1327593C3

SHIELD

EXTENSION - grain tank, rear

1шт.

5

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

21шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

21шт.

7

1321775C1

EXTENSION

- grain tank, left-hand front

1шт.

8

1321771C1

EXTENSION

- grain tank, left-hand rear

1шт.

9

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

23шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

23шт.

12

231-5146

FLANGE NUT,3/8"-16

4шт.

15

1327640C1

EXTENSION

- grain tank, right-hand

1шт.

16

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

12шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

12шт.

18

1327644C2

PLATE

DOOR - extension

1шт.

19

167800C1

CLIP

- door retaining clip

2шт.

20

470-11012

SCREW,Pan HD, #10 - 24 x 3/4"

- machine, pan head slotted, No. 10 NC x 3/4 inch

2шт.

21

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

22

225-14110

NUT,#10-24

2шт.

25

167570C1

CHAIN,203.2mm L

- latch

1шт.

26

409-7416

BOLT,Hex Flg, 1/4" - 20 x 1", Spcl

2шт.

27

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

28

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

29

232-4114

LOCK NUT,1/4"-20, GC

NUT, LOCK, 1/4"-20, GC

2шт.

30

1317635C2

SHEET

SUPPORT - center extension, left-hand

1шт.

33

1321757C1

PLATE

BAR - extension

4шт.

34

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

16шт.

35

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

16шт.

36

1327510C1

SUPPORT

- center extension gusset

1шт.

38

1321802C1

CHANNEL

- flip-up, left-hand front

1шт.

39

1321829C1

EXTENSION

- flip-up, left-hand front

1шт.

40

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

16шт.

41

231-1435

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

16шт.

42

1321779C2

EXTENSION

- flip-up, upper front

1шт.

43

1979256C1

EXTENSION

- flip-up, right-hand

1шт.

44

1979230C3

EXTENSION

- flip-up, rear

1шт.

45

1979232C1

CABLE EXTENSION

EXTENSION - flip-up, left-hand rear

1шт.

46

1317645C2

PLATE

COVER - bearing hole

1шт.

47

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

48

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

37

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

4шт.
