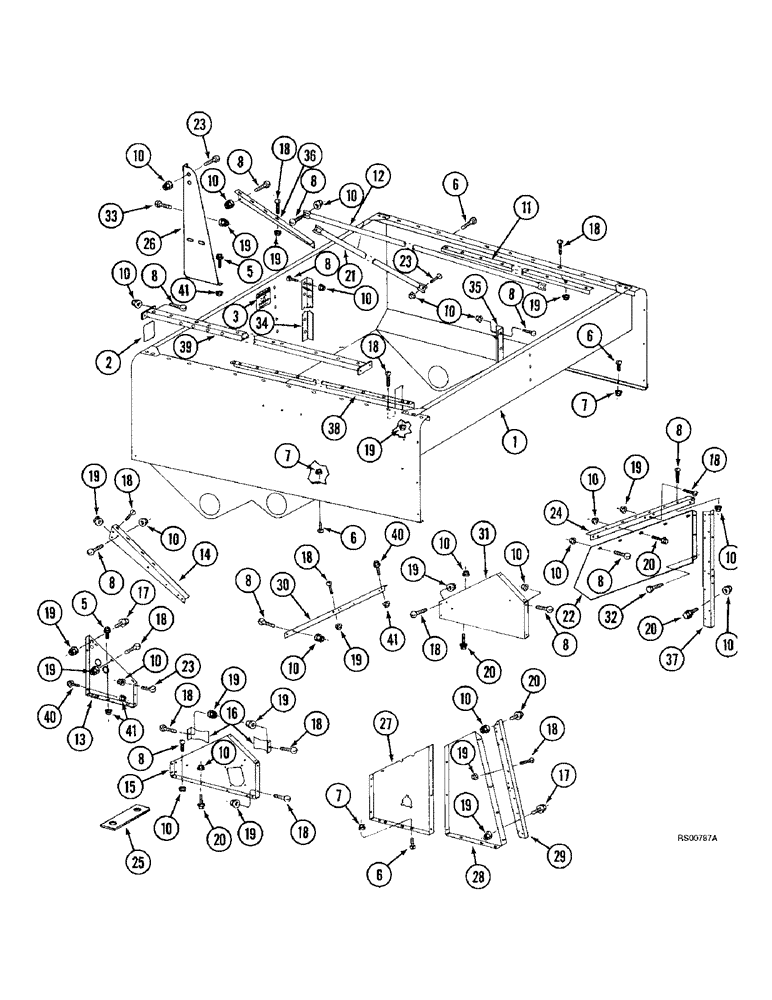

Запчасти Case IH 1680 (9E-02) - GRAIN TANK (17) - GRAIN TANK & UNLOADER

1

1321917C93

TANK

- grain, includes decals, Includes: Ref. 2 & 3

1шт.

2

REF

INSTRUCTION

DECAL - danger, grain tank, small, See Figure 9H-34

1шт.

3

REF

INSTRUCTION

DECAL - danger, grain tank, large, See Figure 9H-34

1шт.

5

409-7824

BOLT,Hex Flg, 1/2" - 13 x 1 1/2", Spcl

- hex serrated flange, 1/2 NC x 1-1/2 inch

6шт.

6

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

1шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

8

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

29шт.

10

231-5146

FLANGE NUT,3/8"-16

55шт.

11

195398C3

SUPPORT

ANGLE - grain tank, top right-hand

1шт.

12

192767C6

ANGLE BAR

ANGLE - grain tank tie

1шт.

13

193429C2

SUPPORT

- grain tank, left-hand front

1шт.

14

192768C2

SUPPORT

- grain tank, diagonal left-hand

1шт.

15

192771C2

SUPPORT

- grain tank, center left-hand

1шт.

16

193531C1

SUPPORT

- filler

4шт.

17

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

6шт.

18

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

56шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

64шт.

20

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

17шт.

21

188414C3

ROD

ANGLE - grain tank tie

1шт.

22

193465C1

SUPPORT

- grain tank, rear right-hand

1шт.

24

193470C1

SUPPORT

ANGLE - grain tank, rear bottom right-hand

1шт.

25

1302549C1

SHIM

BAR - grain tank, front left post

1шт.

26

193430C1

SUPPORT

- grain tank, front right-hand

1шт.

27

193471C1

SUPPORT

- grain tank, rear left-hand

1шт.

28

193464C1

SUPPORT

- grain tank, rear left-hand

1шт.

29

193462C3

SUPPORT

- grain tank, rear vertical left-hand

1шт.

30

193469C1

SUPPORT

ANGLE - grain tank, rear bottom left-hand

1шт.

31

192772C2

SUPPORT

- grain tank, center right-hand

1шт.

32

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

17шт.

33

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch

2шт.

34

188417C1

ANGLE

- grain tank front

1шт.

35

1329777C1

SUPPORT

- grain tank

1шт.

36

192769C2

SUPPORT

- grain tank, diagonal right-hand

1шт.

37

181394C1

SUPPORT

- grain tank, rear vertical right-hand

1шт.

38

195397C3

ANGLE

- grain tank, top left-hand

1шт.

39

192855C1

SUPPORT

- grain tank tie

1шт.

40

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

- hex serrated flange, 1/2 NC x 1 inch

4шт.

41

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

10шт.

23

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

9шт.
