Запчасти Case IH 1680 (9D-27) - KIT UNLOADING GEARBOX (16) - GRAIN ELEVATORS & AUGERS

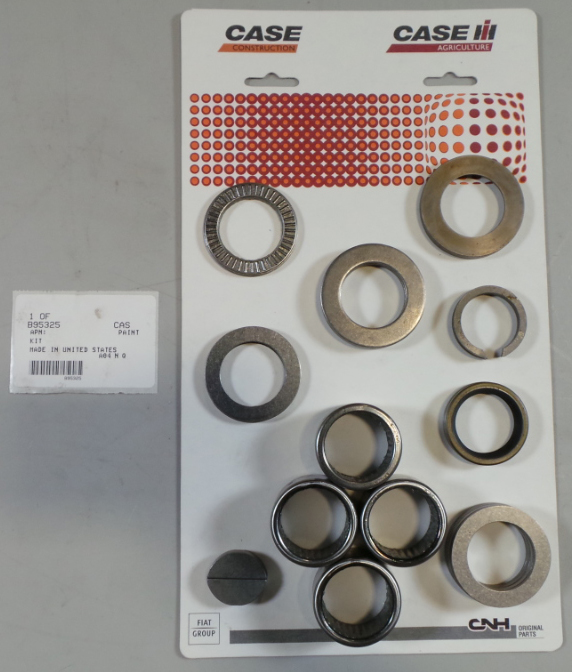

Схема запчастей Case IH 1680 - (9D-27) - KIT UNLOADING GEARBOX (16) - GRAIN ELEVATORS & AUGERS

Артикул

Название

Примечание

Количество

1

B95325

KIT

Incl 2 - 11

1шт.

2

87831

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

2шт.

3

1327731C1

THRUST WASHER

2шт.

4

1327732C1

THRUST WASHER,34.92mm ID x 52.37mm OD x 2.42mm Thk

6шт.

5

157724C91

OIL SEAL

2шт.

6

183490C1

WASHER

1шт.

7

188126C91

NEEDLE BEARING,Needle, 34.91mm ID x 44.46mm OD x 25.4mm W

4шт.

8

188354C1

WASHER,35.71mm ID x 57.15mm OD x 3.05mm Thk

3шт.

9

188446C1

WASHER,35.71mm ID x 50.8mm OD x 0.76mm Thk

2шт.

10

607146R91

THRUST BEARING,35.04mm ID x 51.99mm OD x 1.98mm W

2шт.

11

A21619

CIRCLIP

3шт.

Выбрано товаров: 11
