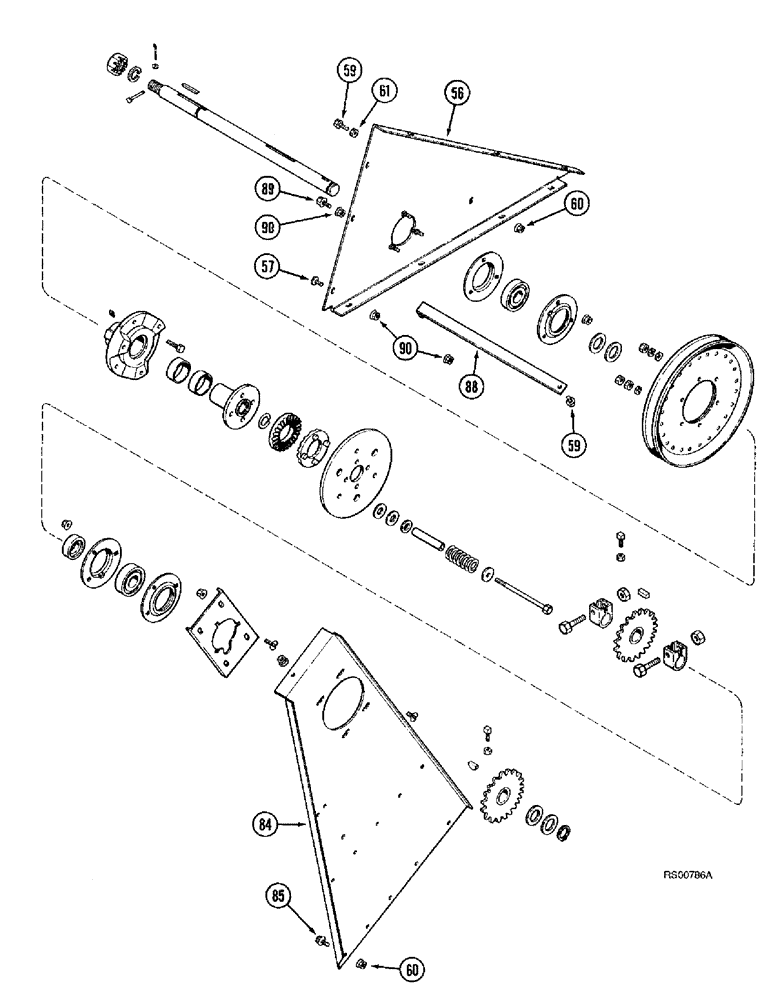

Запчасти Case IH 1680 (9D-26) - ELEVATOR DRIVE JACKSHAFT (CONTD) (16) - GRAIN ELEVATORS & AUGERS

56

183206C1

SUPPORT

- jackshaft, inner

1шт.

57

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

6шт.

58

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

6шт.

59

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, self-locking, special, 3/8 NC x 1 inch

2шт.

60

231-5146

FLANGE NUT,3/8"-16

2шт.

61

329-146

JAM NUT,Jam, 3/8"-16, G5

1шт.

84

192190C2

SUPPORT

- jackshaft, outer

1шт.

85

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

10шт.

87

231-5146

FLANGE NUT,3/8"-16

10шт.

88

192230C1

SUPPORT

BRACE - outer support

1шт.

89

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

90

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.
