Запчасти Case IH 1680 (9D-22) - TAILINGS ELEVATOR DRIVE (16) - GRAIN ELEVATORS & AUGERS

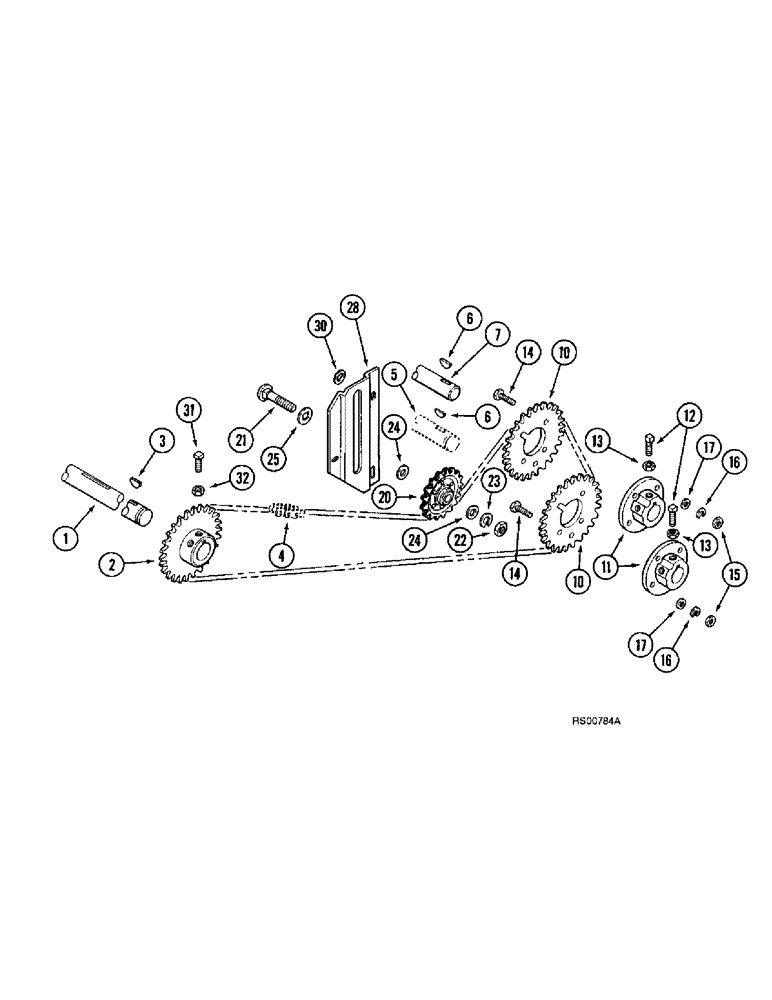

Схема запчастей Case IH 1680 - (9D-22) - TAILINGS ELEVATOR DRIVE (16) - GRAIN ELEVATORS & AUGERS
13
14
24
11
20
1
10
4
31
17
17
6
24
6
12
2
5
32
14
15
22
16
16
10
7
23
30
28
25
21
3
13

Артикул

Название

Примечание

Количество

1

1319247C1

SHAFT

- drive

1шт.

2

192139C2

SPROCKET

- drive, 25 teeth

1шт.

3

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

1шт.

4

REF

INSTRUCTION

CHAIN ASSEMBLY - tailings drive

1шт.

Use 153 links from 1791D (10 ft roll) and one connecting link 1310D.

1шт.

5

REF

INSTRUCTION

AUGER - delivery, See Figure 9D-17

1шт.

6

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

7

191785C1

SHAFT

- head, elevator

1шт.

10

188188C1

SPROCKET ASSY.

SPROCKET - drive, 27 teeth

2шт.

11

1302217C1

HUB

- sprocket

2шт.

12

385-13820

SET SCREW,3/8" - 16 x 1-1/4"

SCREW - set, square head, 3/8 NC x 1-1/4 inch, cup point

4шт.

13

329-146

JAM NUT,Jam, 3/8"-16, G5

4шт.

14

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

8шт.

15

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

8шт.

16

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

17

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

8шт.

20

631905R91

SPROCKET

- idler drive, 17 teeth

1шт.

21

411-1040

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 2

BOLT - carriage, 5/8 NC x 2-1/2 inch, grade 2

1шт.

22

425-1010

NUT,5/8"-11, G5

1шт.

23

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

24

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

4шт.

25

N11720

WASHER

- square hole, 21/32 x 1-1/2 x 3/32 inch

2шт.

28

1302069C2

SUPPORT

BRACKET - support

1шт.

30

495-81113

WASHER,0.34" ID x 0.75" OD x 0.18" Thk

- flat, 11/32 x 3/4 x 3/16 inch

3шт.

31

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

SCREW - set, square head, 3/8 NC x 1 inch, cup point

1шт.

32

425-106

NUT,3/8"-16, Cl 5

1шт.

Выбрано товаров: 26
