Запчасти Case IH 1680 (9D-18) - TAILINGS ELEVATOR (16) - GRAIN ELEVATORS & AUGERS

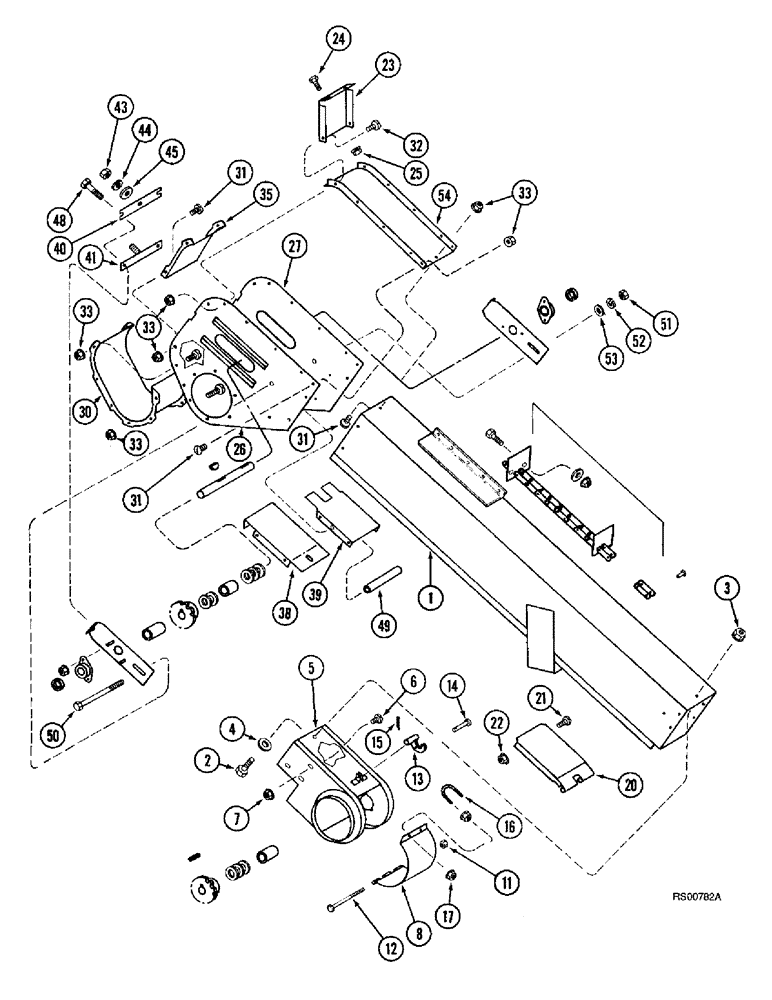

Схема запчастей Case IH 1680 - (9D-18) - TAILINGS ELEVATOR (16) - GRAIN ELEVATORS & AUGERS
8
7
5
45
53
16
20
38
21
17
33
31
27
51
48
35
12
30
14
50
1
32
41
4
24
54
40
26
33
33
44
33
39
2
6
15
22
52
13
11
3
49
25
31
23
31
43

Артикул

Название

Примечание

Количество

1

192430C2

ELEVATOR TUBE

HOUSING - elevator

1шт.

2

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, self-locking, special, 3/8 NC x 1 inch

2шт.

3

231-5146

FLANGE NUT,3/8"-16

2шт.

4

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

8шт.

5

183160C1

BOOT

- elevator

1шт.

6

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

8шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

8шт.

8

156910C1

DOOR

- boot, non-perforated

1шт.

8

174193C1

DOOR

- boot, perforated

1шт.

11

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

1шт.

12

413-5104

BOLT,Hex, 5/16" - 18 x 6-1/2", Gr 5

- hex, 5/16 NC x 6-1/2 inch

1шт.

13

155909C1

LATCH

- door

1шт.

14

439-1420

HEADED PIN,1/4" x 1 1/4"

PIN - headed, 1/4 x 1-1/4 inch, grade 2

1шт.

15

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

16

664360R1

BOLT,U, 1/4" - 20 x 69.65"

U-BOLT - door

1шт.

17

13-14176

BOLT,Hex, 7/8" - 9 x 11", Gr 5

NUT - hex lock, 1/4 inch NC

4шт.

20

191790C2

END

HINGE - bottom

1шт.

21

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

4шт.

22

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

23

192426C1

SUPPORT

- elevator upper

2шт.

24

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

2шт.

25

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

26

181366C1

SIDE PLATE

COVER - head, left-hand

1шт.

27

181367C1

SIDE PLATE

COVER - head, right-hand

1шт.

30

188119C1

TROUGH

- head

1шт.

31

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

20шт.

32

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

11шт.

33

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

35шт.

35

191776C1

COVER

COVER - head

1шт.

38

191782C1

SUPPORT

COVER - head, lower

1шт.

39

181327C1

BOTTOM

COVER - head, lower

1шт.

40

181376C1

CLAMP

- tightener

1шт.

41

181375C1

SUPPORT

BAR - tightener

1шт.

43

425-106

NUT,3/8"-16, Cl 5

1шт.

44

492-11038

LOCK WASHER,3/8"

1шт.

45

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

- flat, 13/32 x 1-1/4 x 3/32 inch

1шт.

48

667486R1

BOLT

BOLT - hex, 1/2 NC x 3-1/2 inch

2шт.

49

27829R1

SPACER,9.2mm ID x 13.72mm OD x 147.6mm L

1шт.

50

424-5112

BOLT,Hex, 5/16" - 18 x 7", Gr 2

- hex, 5/16 NC x 7 inch, grade 2

1шт.

51

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

52

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

53

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

2шт.

54

191783C1

TOP COVER

COVER - head, top

1шт.

Выбрано товаров: 43
