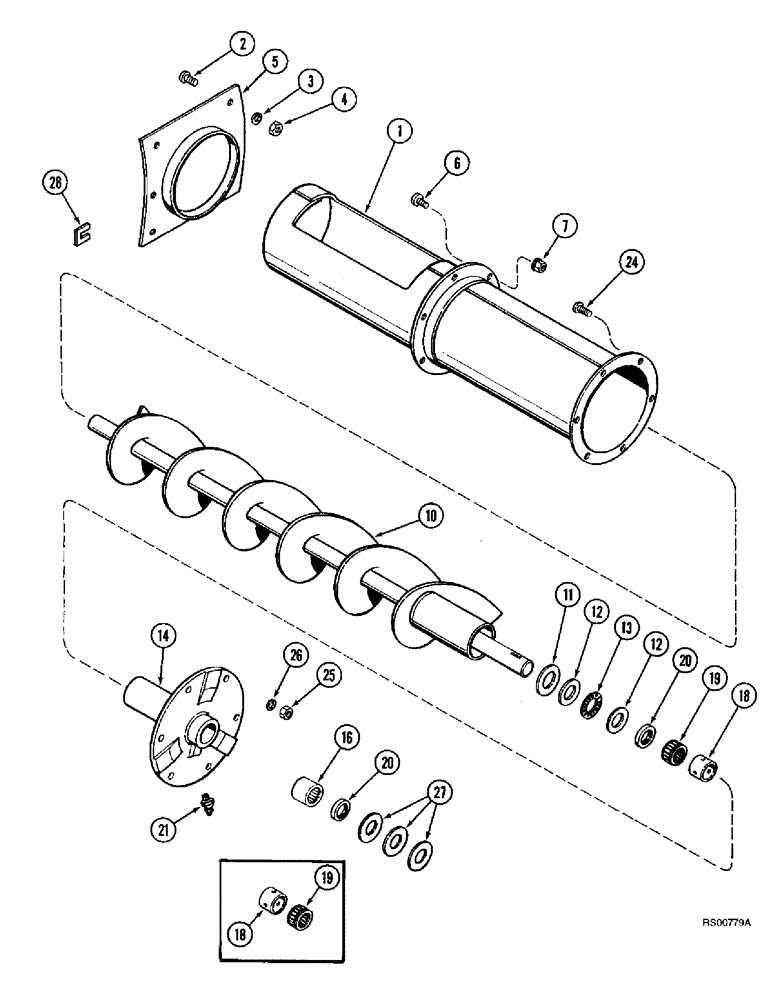

Запчасти Case IH 1680 (9D-12) - TAILINGS DELIVERY AUGER (16) - GRAIN ELEVATORS & AUGERS

1

191854C1

TUBE,356.9 mm Length

- delivery auger

1шт.

2

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

6шт.

3

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

4

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

6шт.

5

186700C1

COVER

FLANGE - tube

1шт.

6

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

6шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

12шт.

10

192563C1

AUGER

- delivery

1шт.

Key shown in 2388 book 9D-32 is 126-124 Woodruff key.

1шт.

11

496-21106

WASHER,1 1/16" x 2" x .209", HDN

- flat, 1-1/16 x 2 x 13/64 inch, Hardened

1шт.

12

T38017

WASHER,25.45mm ID x 39.42mm OD x 2.41mm Thk

- thrust

2шт.

13

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST - Needle, auger

1шт.

14

1324840C1

BEARING HOUSING,36.525 mm ID x 50 mm OD x 43, 160 mm

- bearing, replaces 192783C1

1шт.

15

496-21106

WASHER,1 1/16" x 2" x .209", HDN

- flat, 1-1/16 x 2 x 7/64 inch

4шт.

16

574940R91

NEEDLE BEARING,Needle, 25.39mm ID x 33.35mm OD x 25.4mm W

BEARING - needle, used with 1324840C1 hub only

2шт.

18

588997R1

BUSHING,34.99mm ID x 36.55mm OD x 25.27mm L

- bearing hub

2шт.

Used with 192783C1 hub assembly, prior to P.I.N. JJC0028717.

1шт.

19

568029R91

BEARING ASSY,25.4mm ID x 35mm OD x 25.4mm W

BEARING - auger hub

2шт.

Used with 192783C1 hub assembly, prior to P.I.N. JJC0028717.

1шт.

20

564592R91

SEAL,23.5mm ID x 36.6mm OD x 6.5mm Thk

- hub bearing

2шт.

21

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

FITTING - grease, 45 degree, 1/4-28 special taper x 13/16 inch

1шт.

24

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

25

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

6шт.

26

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

27

495-81078

WASHER,1 1/32" x 2" x .179"

- flat, 1-1/32 x 2 x 11/64 inch

1шт.

28

151670C1

SHIM

SHIM - .036 inch

1шт.
