Запчасти Case IH 1680 (9D-10) - GRAIN ELEVATOR DRIVE (16) - GRAIN ELEVATORS & AUGERS

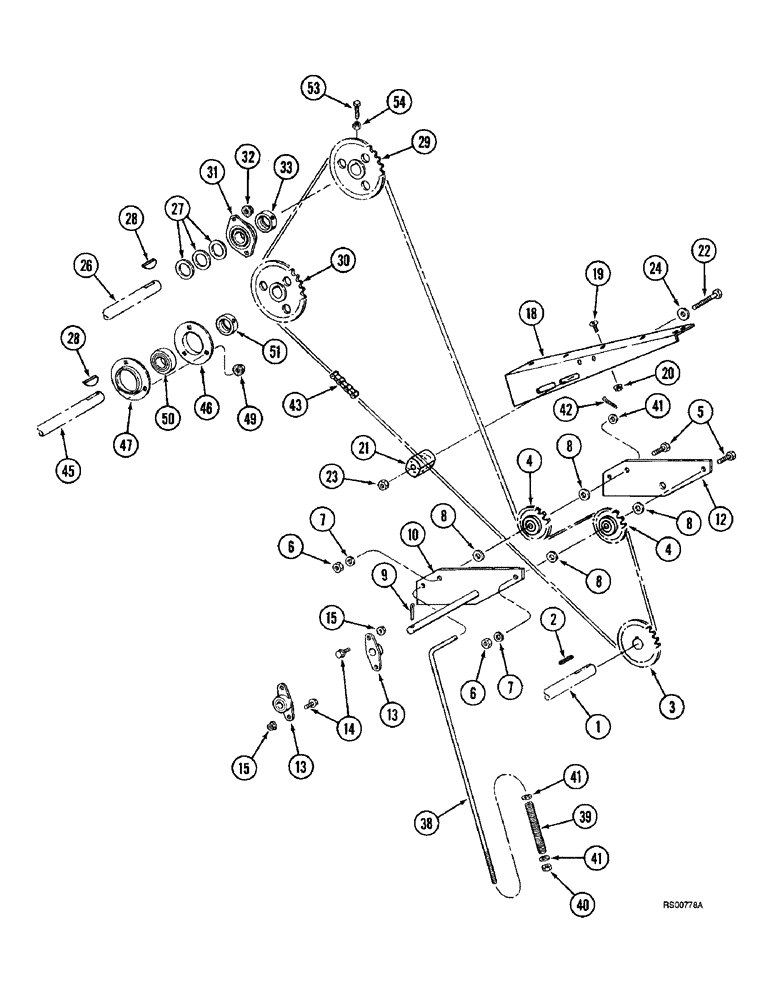

Схема запчастей Case IH 1680 - (9D-10) - GRAIN ELEVATOR DRIVE (16) - GRAIN ELEVATORS & AUGERS
15
46
13
32
3
21
6
54
27
12
23
8
8
39
2
22
6
53
8
24
47
1
50
40
13
29
5
4
41
45
4
10
20
43
31
41
42
8
18
26
7
14
19
7
30
51
49
9
41
28
28
33
38
15

Артикул

Название

Примечание

Количество

1

1319247C1

SHAFT

- drive, elevator

1шт.

2

581306R1

KEY,5/16" Sq x 1 1/4", Par

2шт.

3

192139C2

SPROCKET

- drive, 25 teeth

2шт.

4

631905R91

SPROCKET

- idler drive, 17 teeth

2шт.

5

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- hex, 5/8 NC x 2-3/4 inch

2шт.

6

425-1010

NUT,5/8"-11, G5

2шт.

7

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

8

495-81175

WASHER,21/32" x 1" x .120"

- flat, 21/32 x 1 x 7/64 inch

4шт.

9

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

1шт.

10

1321226C1

SUPPORT

- pivot

1шт.

12

1317670C1

PLATE

BAR - tightener

1шт.

13

A63366

SPHERICAL BEARING,19mm ID

BEARING - pivot

2шт.

14

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

4шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

18

1317476C3

ANGLE BAR

STIFFENER - block

1шт.

19

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

6шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

6шт.

21

582018R1

BLOCK

- tightener

1шт.

22

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

23

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

24

495-81175

WASHER,21/32" x 1" x .120"

- flat, 21/32 x 1 x 7/64 inch

1шт.

26

1317470C1

SHAFT

- elevator head

1шт.

27

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

- flat, 1-9/32 x 1-3/4 x 1/16 inch

6шт.

28

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

1шт.

29

1317412C1

SPROCKET

- headshaft, 32 teeth

1шт.

30

1321039C1

SPROCKET

- driven, 29 teeth

1шт.

31

1317250C91

FLANGED BEARING,31.75mm ID

BEARING - headshaft

1шт.

32

231-5146

FLANGE NUT,3/8"-16

4шт.

33

557995R11

COLLAR

- bearing, with set screw, Only one used on inclined elevator

2шт.

38

1317666C2

ROD

- tightener

1шт.

39

523677R1

SPRING

- tightener

1шт.

40

9411655

LOCK NUT,3/8"-16, GB

NUT - hex, self locking, 3/8 inch NC

1шт.

41

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

3шт.

42

432-616

COTTER PIN,3/32" x 1"

3/32" x 1"

1шт.

43

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - drive

1шт.

Use 261 links from 1791D (10 ft. roll); 3 connector links 1301D and 2 offset links 1315D.

1шт.

45

REF

INSTRUCTION

AUGER - delivery, See Figure 9D-3

1шт.

46

939460R91

FLANGE

- bearing

1шт.

47

939461R1

FLANGE

- bearing

1шт.

49

231-5146

FLANGE NUT,3/8"-16

3шт.

50

156011C92

BALL BEARING

BEARING - ball, auger

1шт.

51

557995R11

COLLAR

- bearing, with set screw

1шт.

53

385-13820

SET SCREW,3/8" - 16 x 1-1/4"

SCREW - set, square head, 3/8 NC x 1-1/4 inch, cup point

2шт.

54

329-146

JAM NUT,Jam, 3/8"-16, G5

2шт.

Выбрано товаров: 44
