Запчасти Case IH 1680 (9D-06) - INCLINED GRAIN ELEVATOR HEAD (16) - GRAIN ELEVATORS & AUGERS

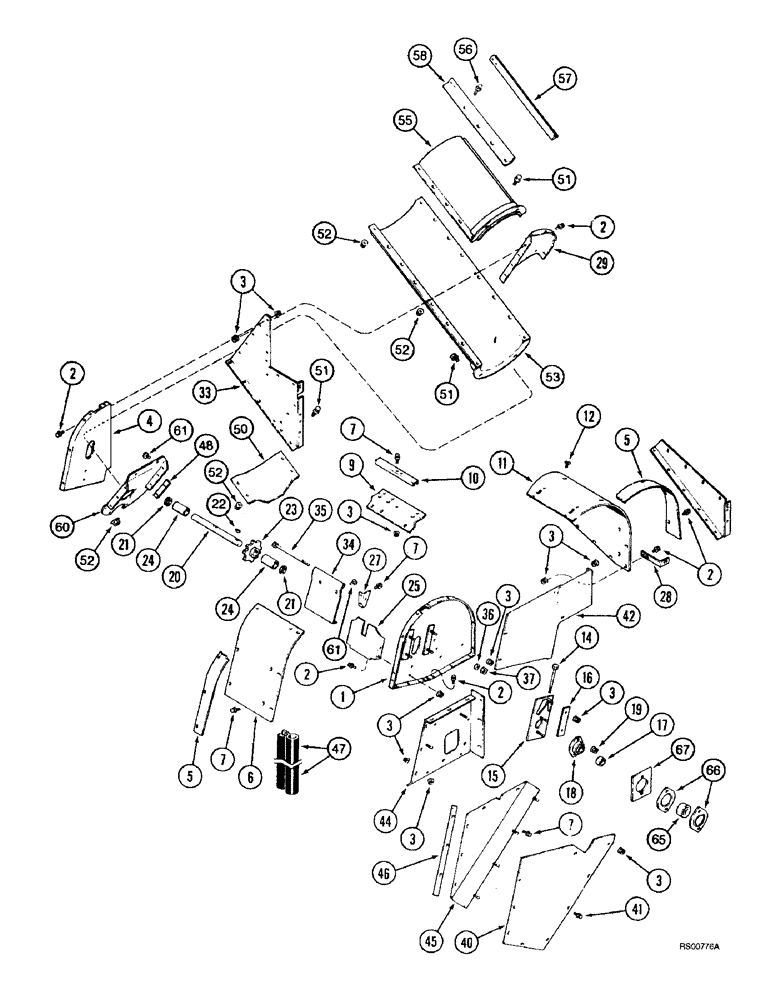

Схема запчастей Case IH 1680 - (9D-06) - INCLINED GRAIN ELEVATOR HEAD (16) - GRAIN ELEVATORS & AUGERS
10
2
65
3
51
35
52
36
45
20
7
7
52
9
2
24
3
19
6
44
15
3
3
16
42
37
11
47
51
17
55
12
28
21
3
23
21
52
4
3
25
3
56
22
34
66
41
5
46
27
61
57
2
51
48
53
3
7
52
40
18
5
29
2
1
2
14
58
67
7
60
33
50
24
61

Артикул

Название

Примечание

Количество

1

1319908C1

SIDE PLATE

SIDE - elevator head, right-hand

1шт.

2

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

53шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

76шт.

4

1319901C1

SIDE PLATE

SIDE - elevator head, left-hand

1шт.

5

1321230C1

PLATE

SEAL - rear cover

2шт.

The side front plate that is not identifed behind item no. 5, seal is part no. 1321552c2 cam djo 2/18/99

1шт.

6

1319940C1

COVER

- rear

1шт.

7

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

28шт.

9

1319959C1

SUPPORT

ANCHOR - chain tightener, conveyer

1шт.

10

1317474C1

CHANNEL

- lock, tightener

1шт.

11

1319941C1

COVER

- head, front

1шт.

12

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

4шт.

14

820430C1

BOLT,Hex, 1/2" - 13 x 5 1/2", Full Thd

- hex, special, 1/2 NC x 5-1/2 inch

2шт.

15

1317251C2

SUPPORT

- headshaft

2шт.

16

1310040C1

BAR

- guide, headshaft

4шт.

17

557995R11

COLLAR

- bearing, with set screw

2шт.

18

1317250C91

FLANGED BEARING,31.75mm ID

BEARING - headshaft

2шт.

19

231-5146

FLANGE NUT,3/8"-16

4шт.

20

1317470C1

SHAFT

- elevator head

1шт.

21

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

- flat, 1-9/32 x 1-3/4 x 1/16 inch

6шт.

22

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

1шт.

23

1317192C1

SPROCKET

- drive

1шт.

24

1317471C1

SPACER

- sprocket

2шт.

25

1318476C1

PLATE

- extension

1шт.

27

1321553C1

BRACKET

ANGLE - support

1шт.

28

1321833C1

STRAP

BRACKET - brace, head

1шт.

29

121370A1

PLATE

- side, left-hand front, includes decal, replaces 1321070C1 plate

1шт.

33

1321550C2

SUPPORT

PANEL - support, rear

1шт.

34

1319954C1

BRACKET

SECTION - cut-off

1шт.

35

413-5144

BOLT,Hex, 5/16" - 18 x 9", Gr 5

- hex, 5/16 NC x 9 inch

1шт.

36

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

37

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

40

1321095C1

PANEL

SHEET - side, right-hand

1шт.

41

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

42

1321097C2

COVER

- auger

1шт.

44

1321060C1

SUPPORT

- mounting

1шт.

45

1321497C1

PANEL

SHEET - side, left-hand

1шт.

46

1321155C1

SPACER

BAR - spacer

1шт.

47

1321263C1

RUBBER SEAL,1137mm L

- flange

2шт.

48

1321554C1

PLATE

BAR - filler

1шт.

50

1321556C1

COVER

- U-joint, auger

1шт.

51

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

12шт.

52

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

18шт.

53

1321557C2

TUBE,887 mm Length

TROUGH - tube, lower

1шт.

55

1321560C2

TROUGH

- tube, upper

1шт.

56

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

6шт.

57

1321568C3

ANGLE

BRACKET - support, front

1шт.

58

1321569C3

ANGLE

BRACKET - support, rear

1шт.

60

1979134C1

SUPPORT

PLATE - support, auger bearing, replaces 1321555C1 plate

1шт.

61

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

2шт.

64

1321552C2

SUPPORT

PLATE - side, front

1шт.

65

156011C92

BALL BEARING

BEARING - ball, headshaft

2шт.

66

581469R1

FLANGE,Bearing

- bearing retainer

4шт.

67

1979642C1

SPACER

- bearing flange

2шт.

Выбрано товаров: 54
