Запчасти Case IH 1680 (9D-02) - GRAIN AUGER TROUGH (16) - GRAIN ELEVATORS & AUGERS

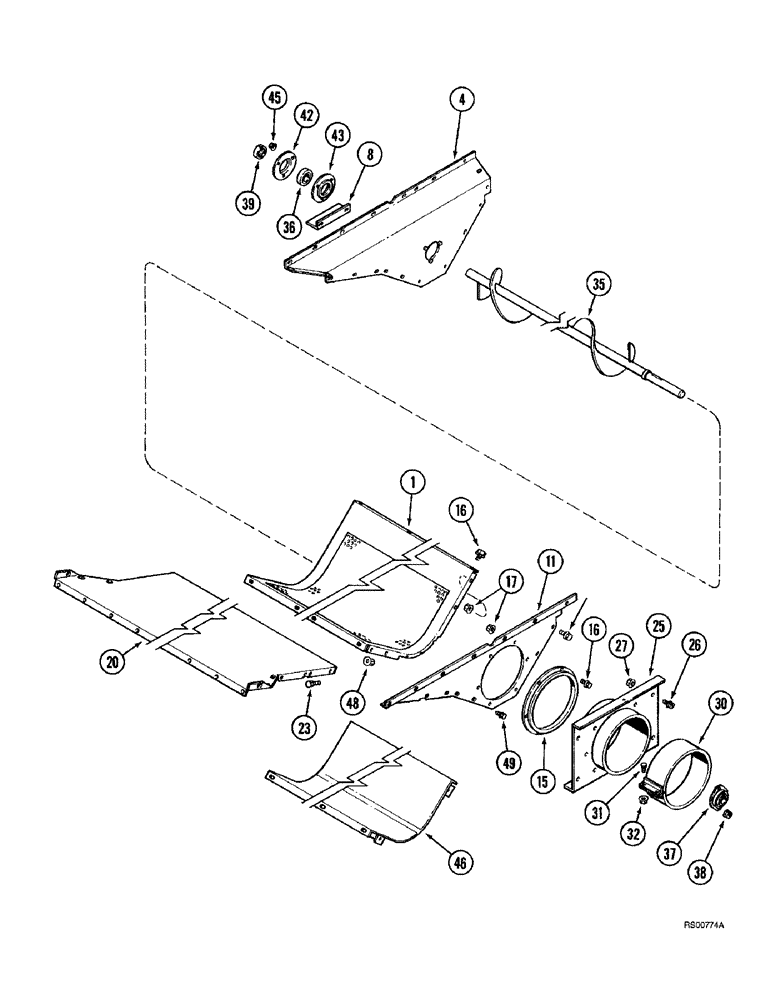

Схема запчастей Case IH 1680 - (9D-02) - GRAIN AUGER TROUGH (16) - GRAIN ELEVATORS & AUGERS
48
8
35
43
30
37
27
16
15
42
25
46
23
4
16
49
31
38
17
32
39
36
26
11
20
45
1

Артикул

Название

Примечание

Количество

1

1317420C1

TROUGH

- bottom, perforated

1шт.

1

1317392C1

TROUGH

- bottom, non-perforated

1шт.

If curved portion of auger trough is too short, dealer may need to order auger trough out of 2100 series book if using a cross flow fan - order P/N 87395607

1шт.

2

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

12шт.

3

231-5315

FLANGE NUT,Flg, 5/16"-18

NUT, LOCK, Flg, 5/16"-18

12шт.

4

1317393C1

SUPPORT

- trough, left-hand

1шт.

5

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

7шт.

6

231-5315

FLANGE NUT,Flg, 5/16"-18

NUT, LOCK, Flg, 5/16"-18

7шт.

8

1317407C1

BRACKET

ANGLE - support, trough, left-hand

1шт.

11

1317395C1

SUPPORT

- trough, right-hand

1шт.

12

231-5315

FLANGE NUT,Flg, 5/16"-18

NUT, LOCK, Flg, 5/16"-18

7шт.

13

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

7шт.

15

1317401C1

RETAINER

- support, trough, right-hand

1шт.

16

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

6шт.

17

231-5315

FLANGE NUT,Flg, 5/16"-18

NUT, LOCK, Flg, 5/16"-18

6шт.

20

191984C2

PLATE

SUPPORT - extension, trough

1шт.

21

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

12шт.

22

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

12шт.

23

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

19шт.

24

231-5315

FLANGE NUT,Flg, 5/16"-18

NUT, LOCK, Flg, 5/16"-18

19шт.

25

1317398C1

SUPPORT

- through tube

1шт.

26

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

- hex flange, special, 1 inch

9шт.

26

1302142C1

BOLT,Flng, 1/2" - 13 x 1-1/4"

BOLT - hex flange, special, 1/2 NC x 1-1/4 inch

1шт.

27

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

10шт.

30

1317442C1

CLAMP

- auger trough

1шт.

31

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

32

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

35

1317409C1

AUGER

- grain

1шт.

36

156011C92

BALL BEARING

BEARING - ball, auger, left-hand

1шт.

37

1317250C91

FLANGED BEARING,31.75mm ID

BEARING - auger, right-hand

1шт.

38

231-5146

FLANGE NUT,3/8"-16

2шт.

39

557995R11

COLLAR

- bearing, with set screw

2шт.

42

939460R91

FLANGE

- bearing, with 45 degree lube fitting

1шт.

43

939461R1

FLANGE

- bearing, grooved

1шт.

45

231-5146

FLANGE NUT,3/8"-16

3шт.

46

1317422C1

COVER

- grain trough, use with perforated trough bottom

1шт.

47

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

14шт.

48

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

14шт.

49

281-14816

SELF-TAP SCREW,HWH, 5/16" - 18 x 1"

SCREW - self-tapping, hex washer head, 5/16 NC x 1 inch

4шт.

Выбрано товаров: 39
