Запчасти Case IH 1680 (9C-12) - CLEANING FAN DRIVE (15) - BEATER & CLEANING FANS

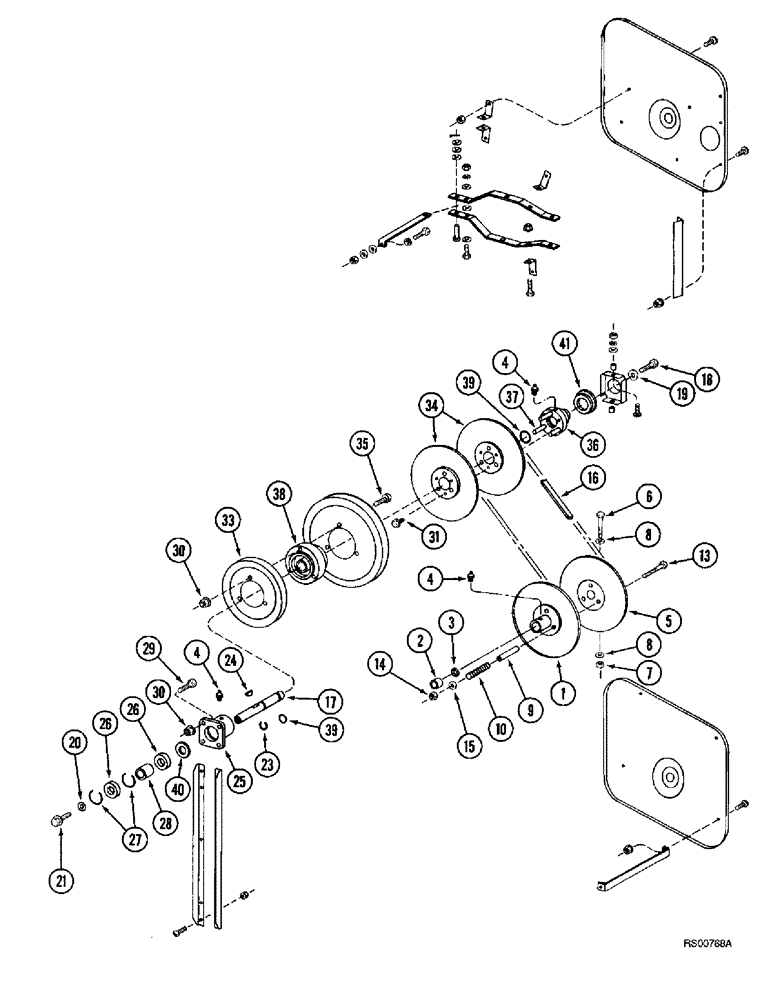

Схема запчастей Case IH 1680 - (9C-12) - CLEANING FAN DRIVE (15) - BEATER & CLEANING FANS
39
25
6
28
4
24
40
34
2
37
20
10
31
13
8
3
15
1
36
9
26
8
4
30
21
5
29
26
39
30
14
38
4
33
41
35
18
17
7
16
27
23
19

Артикул

Название

Примечание

Количество

1

1324948C1

PULLEY ASSY.

PULLEY ASSEMBLY - fan drive adjustable, replaces 185023C93 pulley assembly, Includes: Ref. 2 & 3

1шт.

2

629232R1

BUSHING,31.8mm ID x 34.92mm OD x 25.4mm L

- pulley

2шт.

3

238-5218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

1шт.

4

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

4шт.

5

1324949C1

PULLEY ASSY.

PULLEY - fan driven fixed, 11-1/4 inch (285 mm) OD, replaces 1309014C1 pulley

1шт.

6

326-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 8

1шт.

7

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

1шт.

8

396-31053

WASHER,17/32" x 1 1/16" x .188", HDN

- flat, 17/32 x 1-1/16 x 3/16 inch, hardened

2шт.

9

1302180C2

BUSHING,8.2mm ID x 14.27mm OD x 101.6mm L

SPACER - adjustment spring

3шт.

10

1302181C2

SPRING

- adjustment

3шт.

13

413-580

BOLT,Hex, 5/16" - 18 x 5", Gr 5

3шт.

14

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

3шт.

15

495-81117

WASHER,.344" x 1" x .120"

- flat, 11/32 x 1 x 7/64 inch

3шт.

16

195396C2

BELT,31.80 mm W x 1881.58 mm L

V-BELT , Drive, Over center 31.80 mm W x 1881.58 mm L

1шт.

17

194853C3

SHAFT

- elevator and fan drive

1шт.

18

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

1шт.

19

495-81122

WASHER,.344" x 1 1/2" x .120"

- flat, 11/32 x 1-1/2 x 7/64 inch

1шт.

20

185129C1

WASHER,13.46mm ID x 38.1mm OD x 4.57mm Thk

WASHER - flat, special, 17/32 x 1-1/2 x 3/16 inch

1шт.

21

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

- hex flange, special, 1 inch

1шт.

23

100-16125

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

1шт.

24

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

1шт.

25

192418C1

HUB

- elevator and fan drive

1шт.

26

1302725C91

BALL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING - self-aligning adapter

2шт.

27

360936R1

RING

- snap

2шт.

28

152926C1

SPACER

- 1-15/16 x 1-5/8 x 1-7/8 inch

1шт.

29

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

30

231-5146

FLANGE NUT,3/8"-16

4шт.

31

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

6шт.

33

193948C1

PULLEY,39.61mm W x 254mm OD

- drive, 9-3/4 inch OD

1шт.

34

183288C1

PULLEY

- driven, 11-1/4 inch OD

2шт.

35

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

6шт.

36

185286C91

HUB

ASSEMBLY - fan driven pulley, Includes: Ref. 37

1шт.

37

37-1856

DOWEL,1/2" x 3 1/2"

Hardened 1/2" x 3 1/2"

3шт.

38

183333C1

HUB

- fixed pulley

1шт.

39

238-5218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

1шт.

40

183274C2

WASHER,32.51mm ID x 47.75mm OD x 4.57mm Thk

WASHER - flat, special, 1-9/32 x 1-7/8 x 3/16 inch

1шт.

41

185094C92

BALL BEARING,50.8mm ID x 93.66mm OD x 20.5mm W

BEARING - fan jackshaft

1шт.

Выбрано товаров: 37
