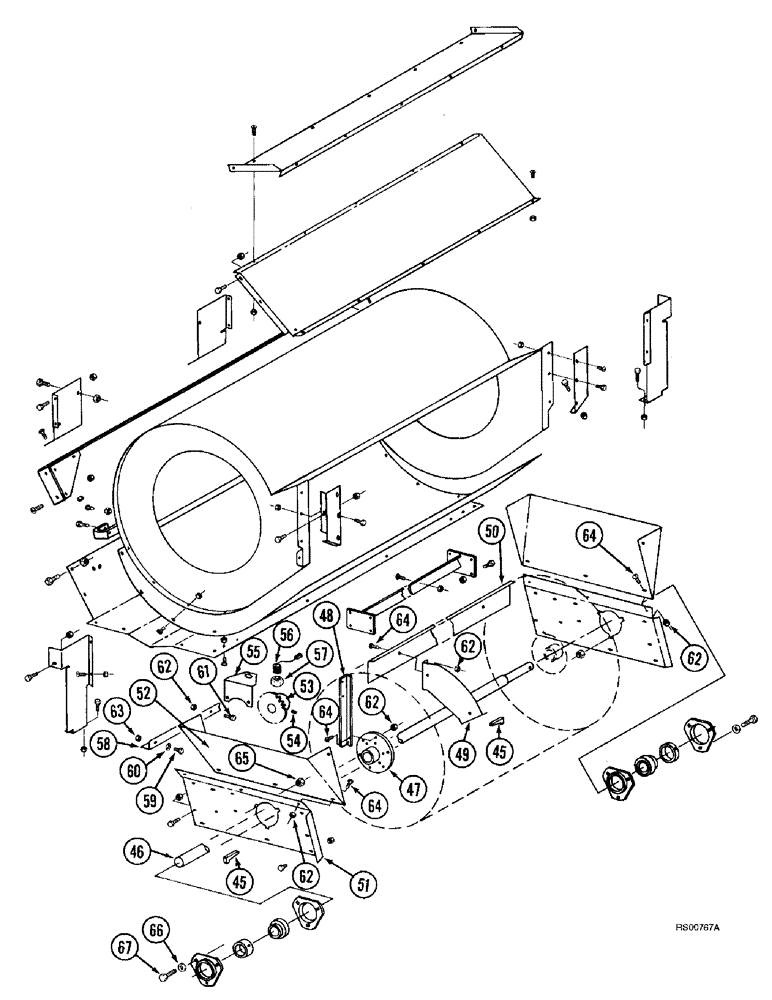

Запчасти Case IH 1680 (9C-10) - CLEANING FAN AND SUPPORTS (CONTD) (15) - BEATER & CLEANING FANS

45

Q1497

KEY,Gib, 3/8" Sq x 2"

- square gib, 3/8 x 2 inch

3шт.

46

1309015C2

SHAFT

- cleaning fan

1шт.

47

185480C1

HUB ASSY.

HUB - fan

3шт.

48

185483C1

BAR

- fan

18шт.

REF #48 P/N 185483C1-PICTORIALLY THIS PART IS ILLUSTRATED INCORRECTLY. PER PRINT, PART IS A FLAT STRIP. SEE 1680 S/N AND AFTER FOR CORRECT ILLUSTRATION. JBEDFORD 10/4/99.

1шт.

49

185484C1

SUPPORT

- cleaning fan blade

18шт.

50

182927C2

PADDLE

BLADE - cleaning fan

6шт.

51

194395C1

SUPPORT

- fan shaft bearing, left-hand

1шт.

52

194397C2

BRACKET

SUPPORT - fan intake, left-hand

1шт.

53

1979818C1

PINION

SPROCKET - fan speed tachometer

1шт.

54

483-13812

SET SCREW,Hex Soc, 3/8"-16 x 3/4"

SCREW - headless cup point, 3/8 NC x 3/4 inch

1шт.

55

1301240C2

SUPPORT

- transmitter

1шт.

56

245193C2

SENSOR

- reluctance pickup, Includes: Ref. 57

1шт.

57

84116C1

NUT

- hex, self-locking, 3/4 inch NC

1шт.

58

186025C1

BRACKET

ANGLE - main sill center cross (For rice)

1шт.

59

426-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

- hex, 1/2 NC x 1-3/4 inch, grade 8

2шт.

60

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

2шт.

61

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

62

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

98шт.

63

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex flange, self-locking, special, 1/2 inch NC, grade 8

2шт.

64

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

98шт.

65

231-5146

FLANGE NUT,3/8"-16

3шт.

66

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

- flat, 13/32 x 1-1/4 x 3/32 inch

3шт.

67

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, self-locking, special, 3/8 NC x 1 inch

3шт.
