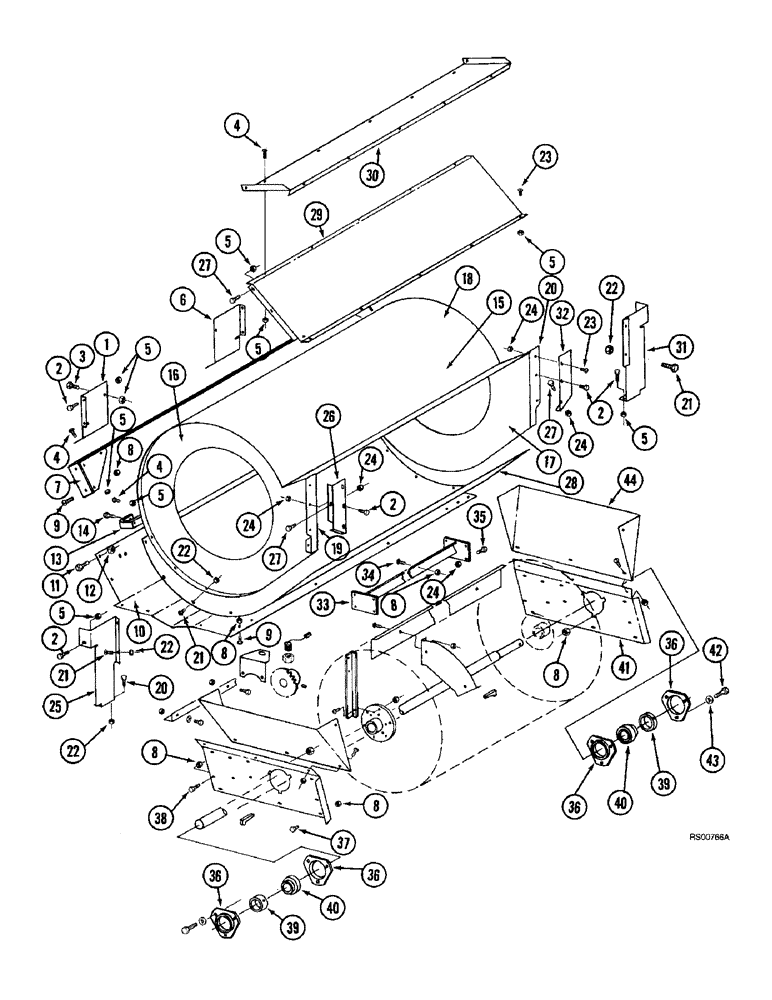

Запчасти Case IH 1680 (9C-08) - CLEANING FAN AND SUPPORTS (15) - BEATER & CLEANING FANS

1

188112C2

SUPPORT

- fan intake front, left-hand

1шт.

2

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

18шт.

3

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

2шт.

4

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

25шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

54шт.

6

188113C2

SUPPORT

- fan intake front, right-hand

1шт.

7

194715C2

SUPPORT

- fan, bottom shield

1шт.

8

231-5146

FLANGE NUT,3/8"-16

22шт.

10

194718C1

SUPPORT

- bottom, fan

1шт.

11

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

- hex serrated flange, 1/2 NC x 1 inch

8шт.

12

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

13

191930C1

STRIP

SUPPORT - front support, fan

1шт.

14

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

15

1324002C91

KIT

- housing, cleaning fan, Includes: Ref. 16 - 24

1шт.

16

NSS

NOT SOLD SEPARAT

HOUSING - fan, left section

1шт.

17

NSS

NOT SOLD SEPARAT

HOUSING - fan, right section

1шт.

18

NSS

NOT SOLD SEPARAT

SHEET - top

1шт.

19

186713C2

KIT

EXTENSION - filler, left-hand

1шт.

20

186714C2

EXTENSION

- filler, right-hand

1шт.

21

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

BOLT - serrated slotted truss head, 1/4 NC x 1/2 inch

32шт.

22

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

34шт.

23

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

13шт.

24

231-5315

FLANGE NUT,Flg, 5/16"-18

NUT, LOCK, Flg, 5/16"-18

33шт.

25

188114C2

SUPPORT

- fan intake rear, left-hand

1шт.

26

186715C1

SUPPORT

- fan side sheet, left-hand

1шт.

27

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

8шт.

28

191927C1

SUPPORT

- fan housing bottom

1шт.

29

192067C1

SUPPORT

- pan to auger bed

1шт.

30

192065C1

SUPPORT

- chaffer front seal

1шт.

31

188115C2

SUPPORT

- fan intake rear, right-hand

1шт.

32

186716C1

SUPPORT

- fan side sheet, right-hand

1шт.

33

191928C1

SUPPORT

- fan housing, rear

1шт.

34

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

12шт.

35

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

6шт.

36

180955C1

FLANGED BEARING,0.375"

FLANGE - bearing

4шт.

37

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

6шт.

38

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

2шт.

39

455104R11

COLLAR

- locking, bearing

2шт.

40

485259R91

BEARING ASSY,1.2505" ID x 72 mm OD x 1.4844"

- fan

2шт.

41

194396C1

SUPPORT

- fan shaft bearing, right-hand

1шт.

42

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, self-locking, special, 3/8 NC x 1 inch

3шт.

43

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

- flat, 13/32 x 1-1/4 x 3/32 inch

3шт.

44

194398C2

SUPPORT

- fan intake, right-hand

1шт.

9

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

13шт.
