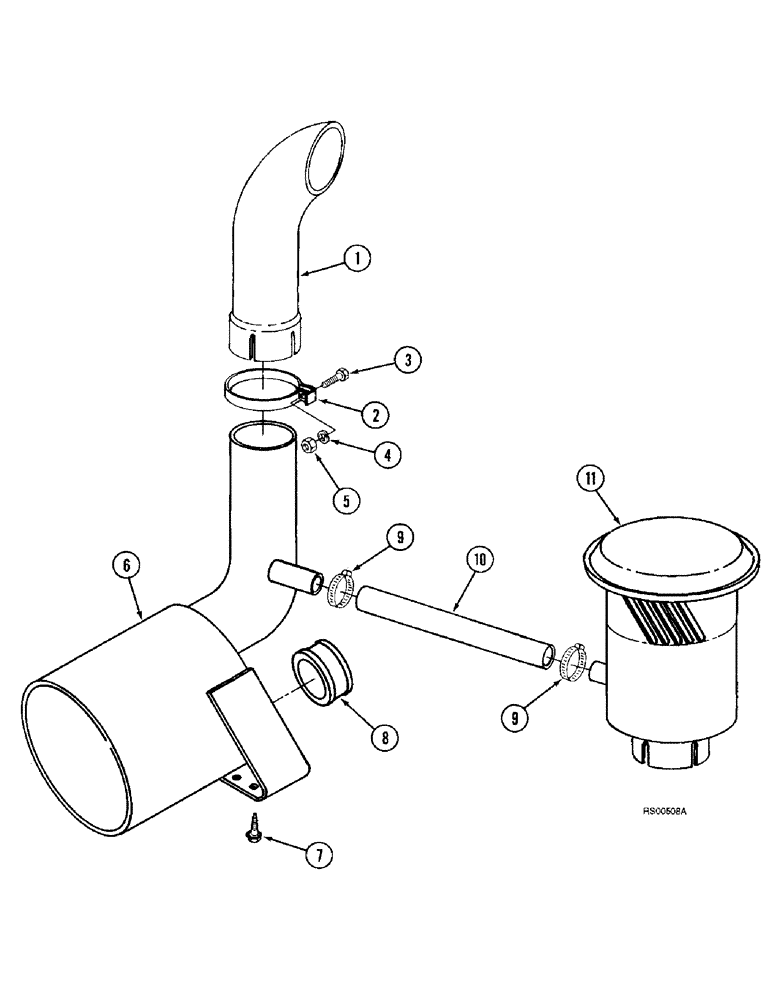

Запчасти Case IH 1680 (2-20) - EXHAUST MUFFLER AND PRE-CLEANER, DTI-466C DIESEL ENGINE (01) - ENGINE

1

1275833C2

TUBE,89.92 mm ID, 88.9 mm OD

ELBOW - exhaust

1шт.

2

1321280C2

CLAMP,92mm

- exhaust pipe

1шт.

3

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

4

492-11038

LOCK WASHER,3/8"

1шт.

5

425-106

NUT,3/8"-16, Cl 5

1шт.

6

1275826C1

MUFFLER

- exhaust

1шт.

7

1327799C2

FLANGE BOLT,Hex, 3/8" - 16 x 1.25", Gr 5, Coated

BOLT - hex washer head, special, 3/8 NC x 1-1/4 inch

4шт.

8

107594C1

SPACER

- turbocharger exhaust

1шт.

9

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj., Replaces 681896C1 clamp #16, 0.81/1.50 Type F Worm

2шт.

10

NSS

NOT SOLD SEPARAT

HOSE - 381 mm (15 inch) long, cut from 407001R1 bulk hose, see below, exhaust ejector

1шт.

11

REF

INSTRUCTION

PRE-CLEANER ASSEMBLY - air, See Figure 2-14 or 2-16

1шт.

407001R1

HOSE,31.75mm ID x 914.4mm L, SAE 20R1

- bulk, 32 (1-1/4) ID x 914 mm (36 inch) long

1шт.
