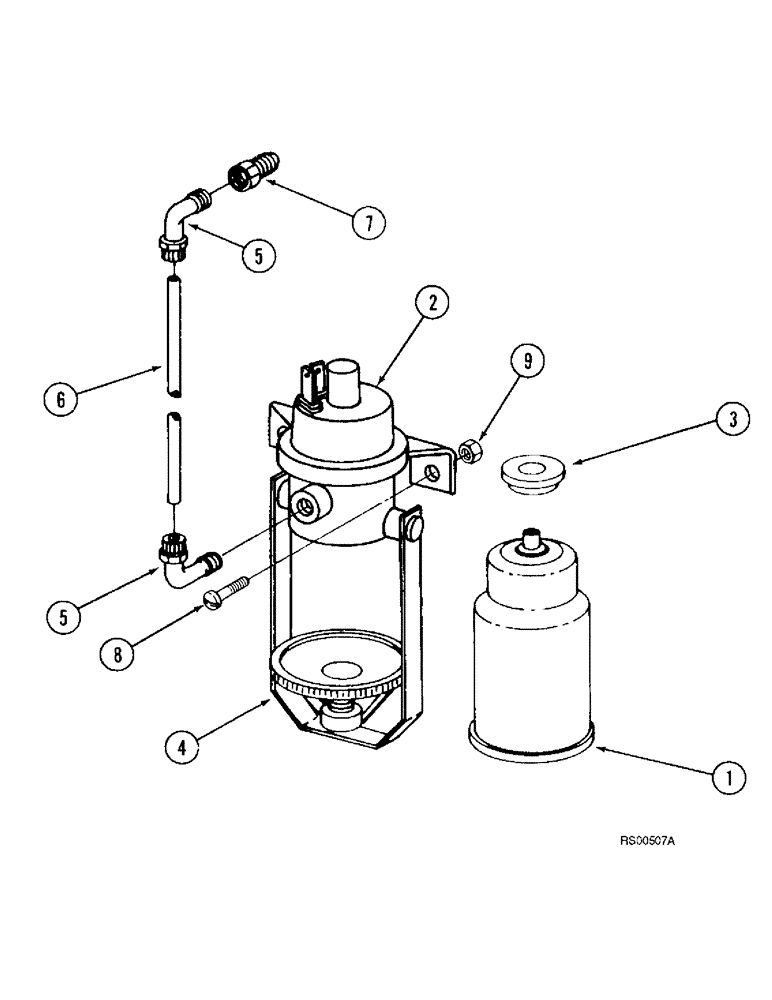

Запчасти Case IH 1680 (2-18) - ETHER STARTING SYSTEM, DTI-466C DIESEL ENGINE (01) - ENGINE

1

NSS

NOT SOLD SEPARAT

FLUID - ether starting (Order ZAD3 from Ship Direct Central)

1шт.

2

185552A1

SOLENOID

- ether injection, 12 volt, replaces 121842C91 solenoid, Includes: Ref. 3 & 4

1шт.

3

395686R1

GASKET

- injector solenoid, 15/64 inch diameter (If Equipped)

1шт.

3

1963571C1

GASKET

GASKET - injector solenoid, 19/32 inch diameter (If Equipped)

1шт.

4

NSS

NOT SOLD SEPARAT

RETAINER - ether start fluid container

1шт.

5

289970C91

FITTING

ELBOW - 90 degree, special, 1/8-27 PT x 1/8 inch tube

2шт.

6

NSS

NOT SOLD SEPARAT

TUBE - 1270 mm (50 inch) long, cut from 1954063CX bulk tube, see below, Serial Range: solenoid-manifold

1шт.

7

269635R91

NOZZLE CAP

NOZZLE - starting fluid

1шт.

8

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch

2шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

1954063CX

TUBE

- bulk, 3 (1/8) OD x 30480 mm (1200 inch) long

1шт.
