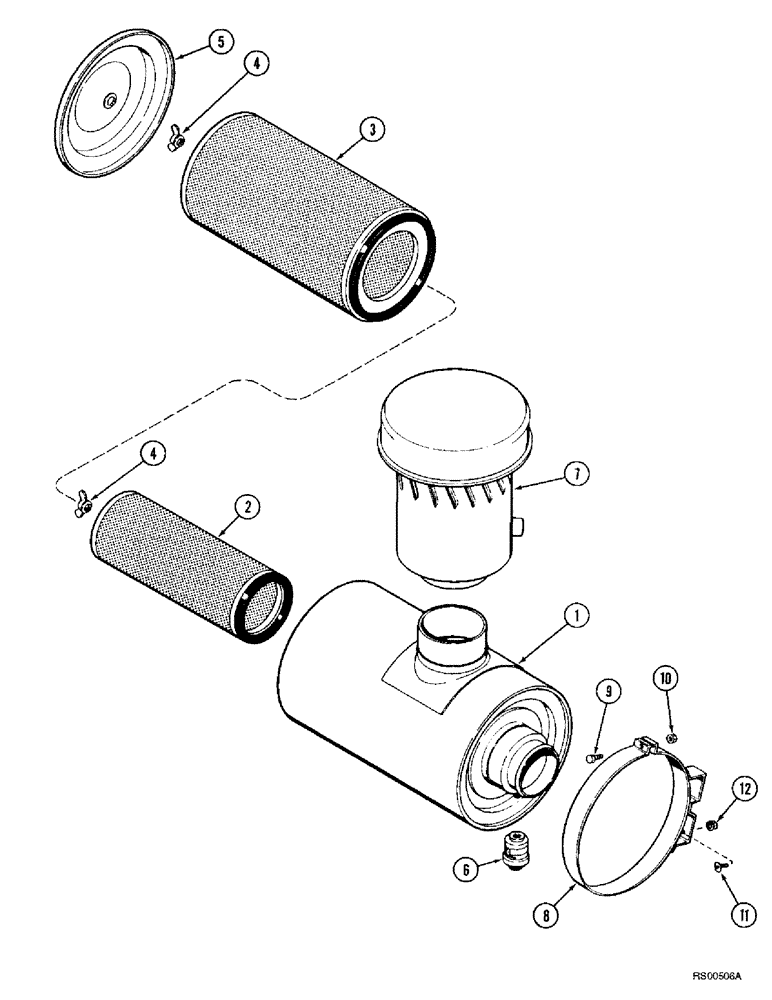

Запчасти Case IH 1680 (2-16) - AIR CLEANER SYSTEM, DTI-466C DIESEL ENGINE, WITH 1541611C1 AIR CLEANER ASSEMBLY (01) - ENGINE

1541611C1

AIR CLEANER

CLEANER ASSEMBLY - air, replaces 84586C91 cleaner assembly, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

2

932390C1

AIR FILTER

ELEMENT - safety, secondary

1шт.

3

932391C2

AIR FILTER

ELEMENT - primary

1шт.

4

L35499

NUT

- wing

2шт.

5

A189038

COVER

- air cleaner

1шт.

6

1541610C1

INDICATOR

- air restriction

1шт.

7

1275728C3

PRECLEANER

- air induction

1шт.

8

A56089

SUPPORT

BAND - air cleaner mounting

1шт.

9

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

3шт.

10

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

11

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

4шт.

12

231-5146

FLANGE NUT,3/8"-16

4шт.
