Запчасти Case IH 1680 (9B-54) - CHAFFER SIEVE (CONTD) (14) - ROTOR, CONCANVES & SIEVE

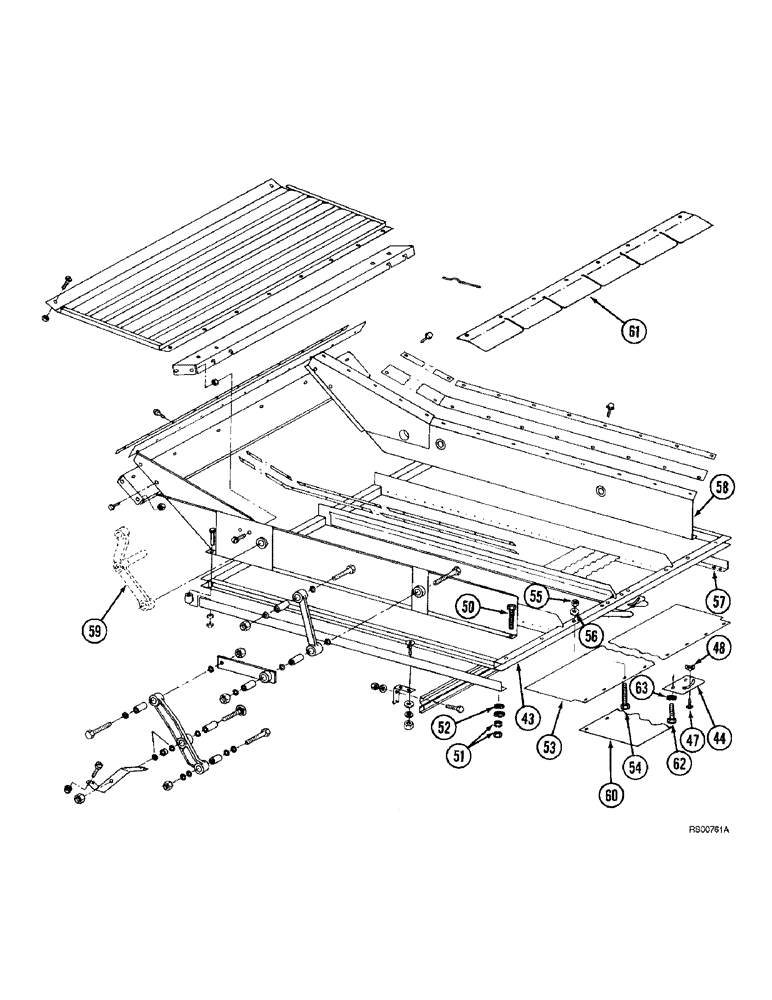

Схема запчастей Case IH 1680 - (9B-54) - CHAFFER SIEVE (CONTD) (14) - ROTOR, CONCANVES & SIEVE
55
61
56
53
47
43
60
62
63
59
48
52
54
44
58
57
51
50

Артикул

Название

Примечание

Количество

43

1330688C3

SIEVE

ASSEMBLY - 1-5/8 close slat chaffer, standard for corn; optional for rice and grain, Includes: Ref. 44

1шт.

43

1330689C3

SIEVE

ASSEMBLY - 1-5/8 corn chaffer, standard for corn; optional for rice and grain, Includes: Ref. 44

1шт.

43

1330687C4

SIEVE

ASSEMBLY - 1-1/8 inch, Includes: Ref. 44

1шт.

43

1319093C6

SIEVE

ASSEMBLY - Peterson chaffer, Includes: Ref. 44

1шт.

44

186675C1

ADJUSTING PLATE

- shoe lever

1шт.

47

412-48

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 1/2", Gr 2

BOLT - carriage, 1/4 NC x 1/2 inch, grade 2

1шт.

48

86627130

WING NUT,1/4"-20

NUT - wing, 1/4 inch NC

1шт.

50

326-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

2шт.

51

429-106

NUT,3/8"-16, G8

- hex, 3/8 inch NC, grade 8

4шт.

52

492-11038

LOCK WASHER,3/8"

2шт.

53

195184C2

SEAL SHEET

- chaffer

1шт.

54

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

14шт.

55

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

14шт.

56

495-81119

WASHER,8.74mm ID x 31.75mm OD x 1.7mm Thk

- flat, 11/32 x 1-1/4 x 1/16 inch

14шт.

57

186370C1

ANGLE

- chaffer support, right-hand

1шт.

58

192040C3

RAIL

- chaffer, right-hand

1шт.

59

1321374C91

LEVER ASSY.

LEVER ASSEMBLY - chaffer drive hanger, see item 1, Figure 9B-44

2шт.

60

1302785C2

EXTENSION

- chaffer

1шт.

61

1319259C1

COVER

- chaffer finger

1шт.

62

1327799C2

FLANGE BOLT,Hex, 3/8" - 16 x 1.25", Gr 5, Coated

BOLT - hex washer head, special, 3/8 NC x 1-1/4 inch

2шт.

63

492-11038

LOCK WASHER,3/8"

2шт.

Выбрано товаров: 21
