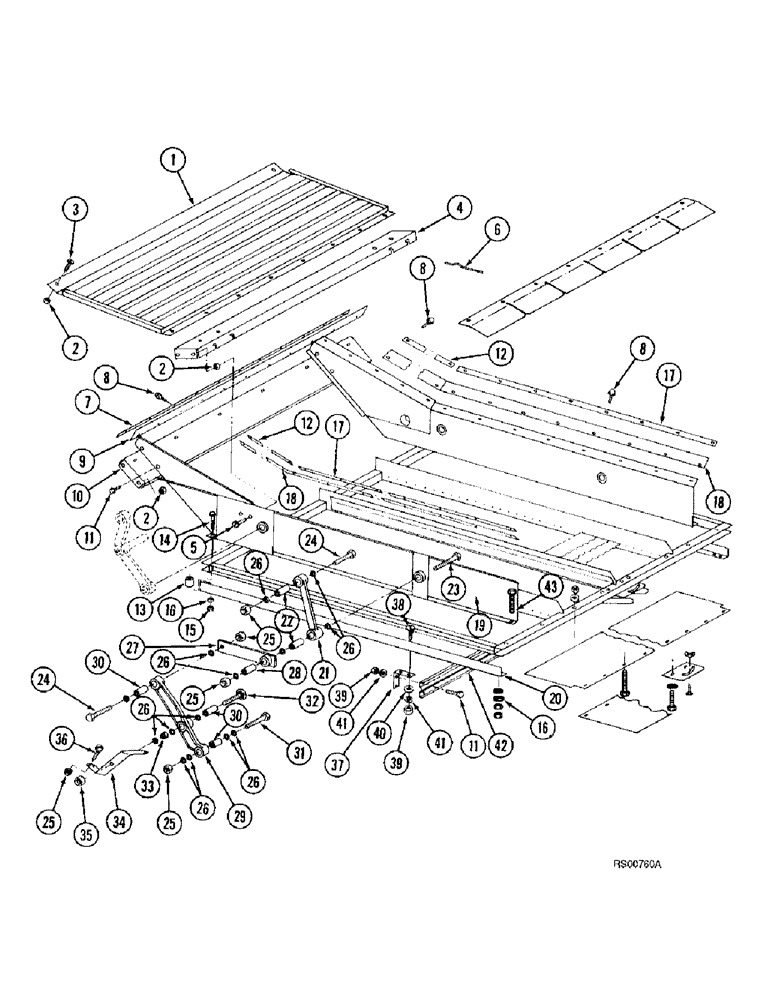

Запчасти Case IH 1680 (9B-52) - CHAFFER SIEVE (14) - ROTOR, CONCANVES & SIEVE

1

192057C1

GRAIN PAN

PAN - grain

1шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

24шт.

3

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

20шт.

4

192061C1

SUPPORT

- chaffer pan

1шт.

5

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

4шт.

6

175114C1

FINGER,Formed, 1 Prong, 264mm L

- auger bed, short

18шт.

7

192050C2

BAR

- front chaffer frame seal

1шт.

8

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - self-tapping, hex head, 1/4 NC x 1/2 inch

51шт.

9

192049C1

SEALING STRIP

- chaffer frame front, sealing

1шт.

10

192045C1

SUPPORT

- chaffer frame

1шт.

11

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

8шт.

12

192052C3

BAR

- chaffer frame seal, short

2шт.

13

186646C1

SPACER,5/8" Tube x 15/16"

- 5/8 x 15/16 inch

2шт.

14

426-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

- hex, 3/8 NC x 2-1/4 inch, grade 8

2шт.

15

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

16

495-81138

WASHER,10.31mm ID x 25.4mm OD x 4.93mm Thk

- flat, 13/32 x 1 x 11/64 inch

4шт.

17

192053C2

BAR

- chaffer frame seal

2шт.

18

192051C3

SEALING STRIP

- chaffer frame

2шт.

19

192039C3

RAIL

- chaffer, left-hand

1шт.

20

186369C1

ANGLE

- chaffer support, left-hand

1шт.

21

175131C91

ARM ASSY.

ARM ASSEMBLY - rear hanger, Includes: Ref. 22

2шт.

22

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

- hanger arm

2шт.

23

426-10104

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 8

- hex, 5/8 NC x 6-1/2 inch, grade 8

2шт.

24

426-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

- hex, 5/8 NC x 3-1/2 inch, grade 8

8шт.

25

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

10шт.

26

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

- flat, special, 41/64 x 1-1/2 x 1/8 inch

28шт.

27

188010C91

ARM ASSY.

ARM ASSEMBLY - shoe, rear, Includes: Ref. 28

2шт.

28

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

- shoe arm

1шт.

29

192941C92

LEVER ASSY.

LEVER ASSEMBLY - shoe, Includes: Ref. 30

2шт.

30

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

- shoe lever

3шт.

31

426-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

- hex, 5/8 NC x 4-1/2 inch, G8

2шт.

32

411-1064

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4", Gr 2

BOLT - carriage, 5/8 NC x 4 inch, grade 2

2шт.

33

168250C1

RING

SPACER - shoe and chaffer lever

2шт.

34

193107C2

SUPPORT

- shoe lever, left-hand

1шт.

34

193108C2

SUPPORT

- shoe lever, right-hand

1шт.

35

231-5146

FLANGE NUT,3/8"-16

8шт.

36

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

8шт.

37

186674C1

ANGLE

- rear deflector

2шт.

38

156466

SCREW,Cross Flat Hd, 5/16" - 18 x 1"

4шт.

39

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

8шт.

40

495-81112

WASHER,.344" x 3/4" x .120"

- flat, 11/32 x 3/4 x 7/64 inch

4шт.

41

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

42

193970C1

CHANNEL

- rear

1шт.

43

326-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

1шт.
