Запчасти Case IH 1680 (9B-50) - SHOE SIEVE (CONTD) (14) - ROTOR, CONCANVES & SIEVE

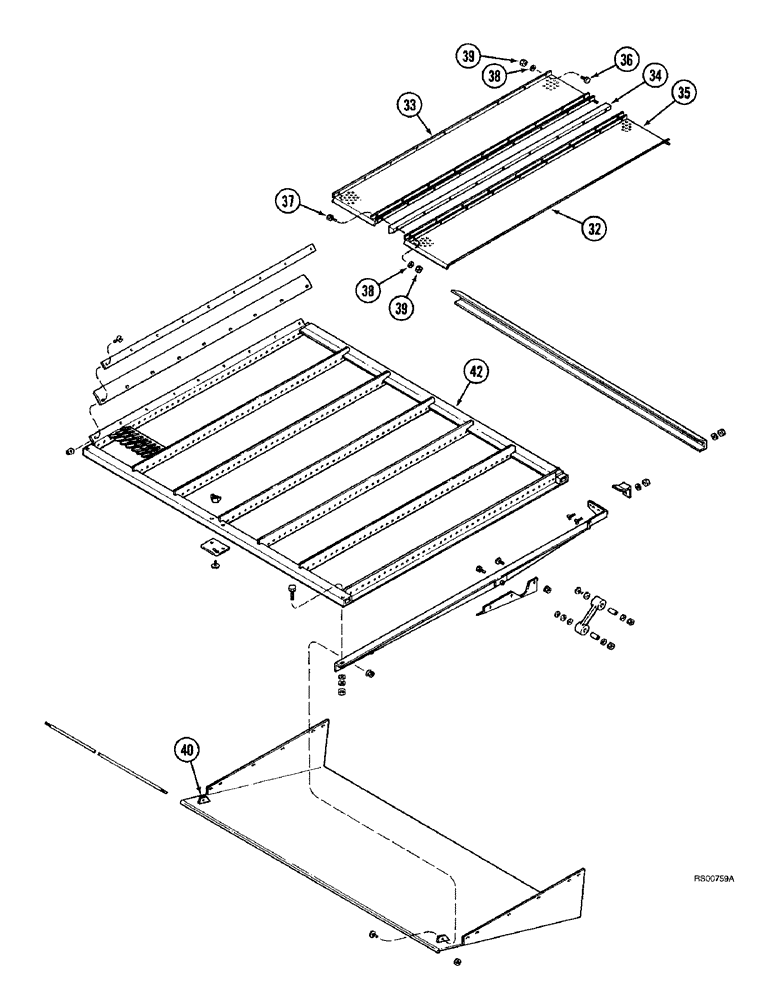

Схема запчастей Case IH 1680 - (9B-50) - SHOE SIEVE (CONTD) (14) - ROTOR, CONCANVES & SIEVE
42
34
40
39
32
36
35
37
38
39
38
33

Артикул

Название

Примечание

Количество

32

1319282C1

SCREEN

- perforated, side section

2шт.

For use with sieve assembly 193960C2, See Figure 9B-48, item 14.

1шт.

33

1319283C1

SCREEN

- perforated, center section

4шт.

For use with sieve assembly 193960C2, See Figure 9B-48, item 14.

1шт.

34

1319284C1

BAR

- wood spacer

1шт.

For use with sieve assembly 193960C2, See Figure 9B-48, item 14.

1шт.

35

1319300C1

BAR

- screen fastener backing (Use with 193960C2)

10шт.

36

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

36шт.

38

120375

NUT,Hex, 1/4" - 20, Gr 5

45шт.

39

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

45шт.

40

1319219C1

PLATE

BAR - shoe return pan filler

2шт.

1319277C91

PACKAGE

PARTS ACCESSORY - alfalfa

1шт.

Consists of item 11 on Figure 9B-48, items 32 through 39 on this Figure and item 61 on Figure 9B-54.

1шт.

37

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

9шт.

Выбрано товаров: 14
