Запчасти Case IH 1680 (9B-48) - SHOE SIEVE (14) - ROTOR, CONCANVES & SIEVE

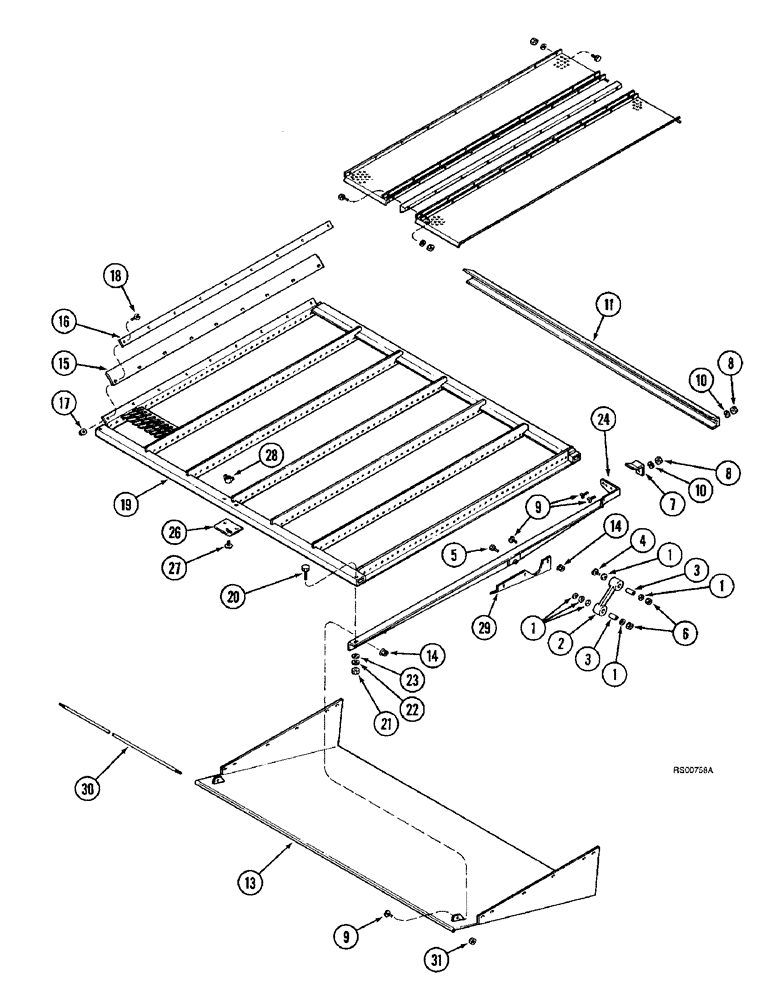

Схема запчастей Case IH 1680 - (9B-48) - SHOE SIEVE (14) - ROTOR, CONCANVES & SIEVE
16
13
31
6
11
7
1
21
8
10
15
30
26
3
22
1
9
23
20
29
4
9
2
28
24
5
18
1
19
27
1
14
17
3
8
10
14

Артикул

Название

Примечание

Количество

1

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

- flat, special, 41/64 x 1-1/2 x 1/8 inch

12шт.

2

175160C91

LEVER

HANGER ASSEMBLY - shoe front, Includes: Ref. 3

2шт.

3

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

- shoe front hanger

2шт.

4

133-3

CARRIAGE BOLT,Short Nk, 5/8" - 11 x 3 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 5/8"-11 x 3 1/4", G5

2шт.

5

426-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

- hex, 5/8 NC x 4-1/2 inch, G8

2шт.

6

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

4шт.

7

182684C3

CLIP

- shoe, front support

2шт.

8

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

8шт.

9

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

26шт.

10

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

11

1319239C1

ANGLE

BRACKET - shoe, front

1шт.

13

1319209C1

BOTTOM

- shoe return pan

1шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

18шт.

15

192192C1

SEALING STRIP

- shoe sieve

2шт.

16

192193C1

BAR

- shoe sieve seal

2шт.

17

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

18шт.

18

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

BOLT - serrated slotted truss head, 1/4 NC x 1/2 inch

18шт.

19

193960C2

SIEVE

- shoe, 1-1/8 inch slat

1шт.

19

186820C2

GRAIN SIEVE

SIEVE - shoe, 1/10 inch round holes

1шт.

19

186821C2

GRAIN SIEVE

SIEVE - shoe, 7/32 inch round holes

1шт.

19

186822C2

GRAIN SIEVE

SIEVE - shoe, 3/8 inch round holes

1шт.

19

186823C2

GRAIN SIEVE

SIEVE - shoe, 1/2 inch round holes

1шт.

19

1302233C2

GRAIN SIEVE

SIEVE - shoe, 1-5/8 inch close slat

1шт.

20

326-632

BOLT,Hex, 3/8" - 16 x 2", Gr 8

2шт.

21

429-106

NUT,3/8"-16, G8

- hex, 3/8 inch NC, grade 8

2шт.

22

495-81129

WASHER,13/32" x 3/4" x .120"

- flat, 13/32 x 3/4 x 7/64 inch

2шт.

23

492-11038

LOCK WASHER,3/8"

2шт.

24

1302071C3

SUPPORT

- shoe side, right-hand

1шт.

24

1302070C3

SUPPORT

- shoe side, left-hand, not shown

1шт.

26

186675C1

ADJUSTING PLATE

- shoe lever

1шт.

27

412-48

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 1/2", Gr 2

BOLT - carriage, 1/4 NC x 1/2 inch, grade 2

1шт.

28

126177

WING NUT

NUT - wing, 1/4 inch NC

1шт.

29

1302335C2

SUPPORT

- forward shoe, left-hand

1шт.

29

1302336C2

SUPPORT

- forward shoe, right-hand

1шт.

30

1319216C1

ROD

- return pan bottom

1шт.

31

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

Выбрано товаров: 36
