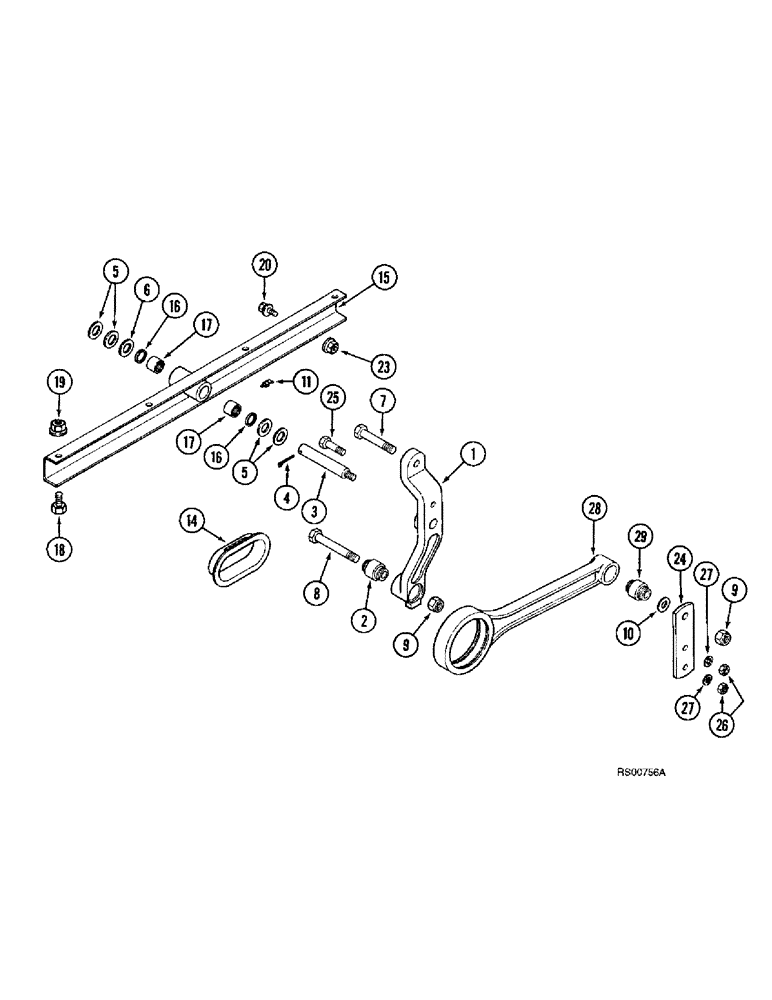

Запчасти Case IH 1680 (9B-44) - CHAFFER DRIVE HANGER LEVER AND SUPPORT (14) - ROTOR, CONCANVES & SIEVE
№
Артикул
Название
Примечание
Количество
1
1321374C91
LEVER ASSY.
LEVER ASSEMBLY - chaffer drive hanger, Includes: Ref. 2 & 3
2шт.
2
186597C1
BUSHING,16mm ID x 38.23mm OD x 44.7mm L
- chaffer drive hanger arm
1шт.
3
186740C1
PIN,22.25mm OD x 147.32mm L
SHAFT - hanger arm
1шт.
4
432-1232
COTTER PIN,3/16" OD x 2" L
3/16" x 2"
2шт.
5
495-81057
WASHER,23.01mm ID x 38.1mm OD x 3.4mm Thk
- flat, 29/32 x 1-1/2 x 7/64 inch
6шт.
6
495-81056
WASHER,29/32" x 1 1/2" x 3/64
- flat, 29/32 x 1-1/2 x 3/64 inch
4шт.
8
426-1072
BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8
- hex, 5/8 NC x 4-1/2 inch, G8
2шт.
9
232-41110
NUT,5/8"-11, GC
NUT, LOCK, 5/8"-11, GC
4шт.
10
495-81026
WASHER,21/32" x 1 1/2" x .060"
- flat, 21/32 x 1-1/2 x 3/64 inch
1шт.
11
219-90
LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF
FITTING - grease, 45 degree, 1/4-28 special taper x 13/16 inch, left-hand side
2шт.
14
1302644C2
SEAL
- chaffer rail, front pivot
2шт.
15
186651C92
SUPPORT
- front hanger, Includes: Ref. 16 & 17
2шт.
16
372756R91
OIL SEAL,20.45mm ID x 28.68mm OD x 3.17mm Thk
- support bearing
4шт.
17
G10642
NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 19.05mm W
BEARING - needle
4шт.
18
413-816
BOLT,Hex, 1/2" - 13 x 1", Gr 5
12шт.
19
231-5148
FLANGE NUT,Flg, USR, 1/2"-13
12шт.
20
409-7512
BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl
- hex serrated flange, 5/16 NC x 3/4 inch
4шт.
23
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
NUT - hex serrated flange, 5/16 inch NC
4шт.
24
186752C1
BAR
- pitman stablizer
2шт.
25
413-828
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5
2шт.
26
425-108
NUT,1/2" - 13, Gr 5
NUT, , Hex 1/2"-13, G5
4шт.
27
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, 1/2"
4шт.
28
186738C91
PITMAN
ASSEMBLY - shaker shaft, Includes: Ref. 29
2шт.
29
186597C1
BUSHING,16mm ID x 38.23mm OD x 44.7mm L
- chaffer drive hanger arm
1шт.
Выбрано товаров: 25
