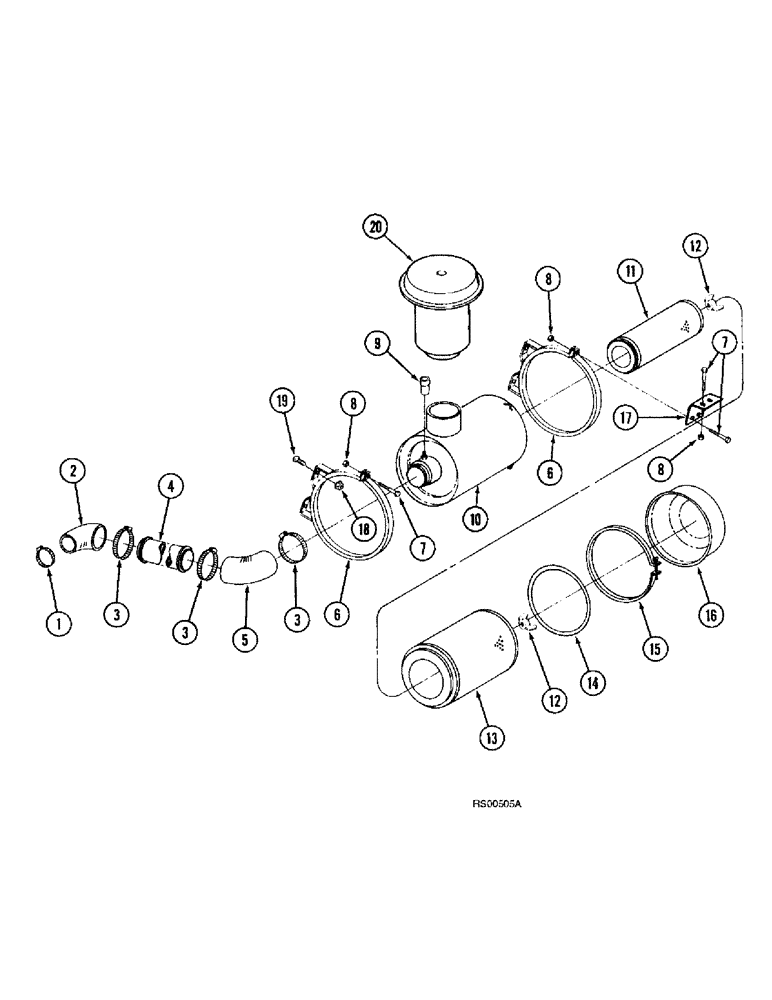

Запчасти Case IH 1680 (2-14) - AIR CLEANER SYSTEM, DTI-466C DIESEL ENGINE, WITH 84586C91 AIR CLEANER ASSEMBLY (01) - ENGINE

1

146569C1

CLAMP

- hose, No. 56 type F

1шт.

2

548222R1

INTAKE AIR HOSE,3.00" ID, 4.00" ID x 4.25"

ELBOW - inlet engine

1шт.

3

146570C1

CLAMP

- hose, No. 72 type F

3шт.

4

1275739C1

AIR INTAKE TUBE,4" OD, 360 mm Length

TUBE - air cleaner outlet

1шт.

5

218899R1

ELBOW

HOSE - elbow

1шт.

6

A56089

SUPPORT

BAND - air cleaner mounting, replaces 259922C91 band

2шт.

7

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

3шт.

8

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

9

582214C1

INDICATOR

- air restriction

1шт.

84586C91

AIR CLEANER

CLEANER ASSEMBLY - air, no longer available, for service order 1541611C1 cleaner assembly, parts list shown on Figure 2-16, Includes: Ref. 10 - 16

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - cleaner

1шт.

11

932390C1

AIR FILTER

ELEMENT - safety, secondary

1шт.

12

L35499

NUT

- wing

2шт.

13

932391C2

AIR FILTER

ELEMENT - primary

1шт.

14

N6661

O-RING,10.62" ID x 0.27" Width

- sealing

1шт.

15

L30936

CLAMP

- body, replaces 891128R91 clamp

1шт.

16

1275837C1

HOUSING

CUP - air cleaner

1шт.

17

1319562C1

SUPPORT

- air cleaner

1шт.

18

231-5146

FLANGE NUT,3/8"-16

4шт.

19

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

4шт.

20

1275728C3

PRECLEANER

- air induction

1шт.
