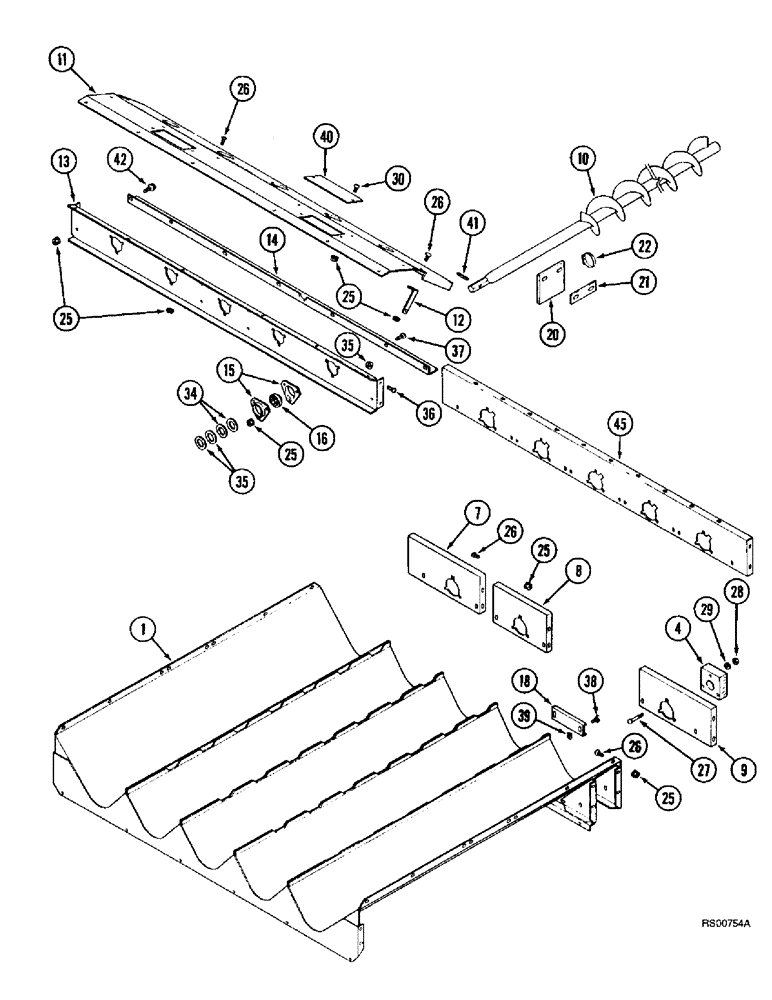

Запчасти Case IH 1680 (9B-40) - AUGER BED (14) - ROTOR, CONCANVES & SIEVE

1

191645C5

TROUGH ASSY.

TROUGH - auger

1шт.

4

193414C2

BOARD

- front auger bearing

5шт.

7

191660C1

SUPPORT

- auger front, left hand

1шт.

Ref. 45, 1345014C3 auger support, one piece, may be used to service Refs. 7, 8 and 9.

1шт.

8

191659C1

SUPPORT

- auger front, center

3шт.

Ref. 45, 1345014C3 auger support, one piece, may be used to service Refs. 7, 8 and 9.

1шт.

9

191661C1

SUPPORT

- auger front, right hand

1шт.

Ref. 45, 1345014C3 auger support, one piece, may be used to service Refs. 7, 8 and 9.

1шт.

10

1308541C1

AUGER

- right hand rotation

5шт.

11

1321372C1

FILLER

PANEL - filler, rotor to auger drive

1шт.

12

193554C1

SUPPORT

- pan

2шт.

13

1309226C1

SUPPORT

- auger drive gear

1шт.

14

188360C1

STIFFENER

ANGLE - auger support stiffener

1шт.

15

571424R1

FLANGE

- bearing

10шт.

16

195293C91

BALL BEARING,0.89" ID x 2.04" OD x 1"

BEARING - auger drive

5шт.

18

185068C1

COVER

- auger trough clean out

5шт.

20

1302112C1

STRIP

PLATE - auger bed grain spreader

1шт.

21

1302113C1

BAR

- grain spreader plate

1шт.

22

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

CLAMP, HOSE, , Adjustable #28, 1.31/2.25 Type F Worm

2шт.

25

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

26

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

1шт.

27

433-636

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 5

BOLT - carriage, 3/8 NC x 2-1/4 inch

15шт.

28

9411655

LOCK NUT,3/8"-16, GB

NUT - hex, self locking, 3/8 inch NC

15шт.

29

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

15шт.

30

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

13шт.

33

495-81191

WASHER,1 5/32" x 2" x .060"

- flat, 1-5/32 x 2 x 3/64 inch

10шт.

34

496-21106

WASHER,1 1/16" x 2" x .209", HDN

- flat, 1-1/16 x 2 x 13/64 inch, Hardened

10шт.

35

231-5146

FLANGE NUT,3/8"-16

1шт.

36

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

4шт.

37

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch

10шт.

38

166667C1

THUMB SCREW,1/4" - 20 x 0.62"

BOLT - wing

10шт.

39

564791R1

SPRING NUT

- Tinnerman, 1/4 inch NC

10шт.

40

1319548C1

BAR

COVER - grain sensor

2шт.

41

38-32032

PIN,7.92mm OD x 50.8mm L

5шт.

42

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, self locking, special, 3/8 NC x 1 inch

2шт.

45

1345014C3

SUPPORT

- auger, front

1шт.

Ref. 45, 1345014C3 auger support, one piece, may be used to service Refs. 7, 8 and 9.

1шт.
