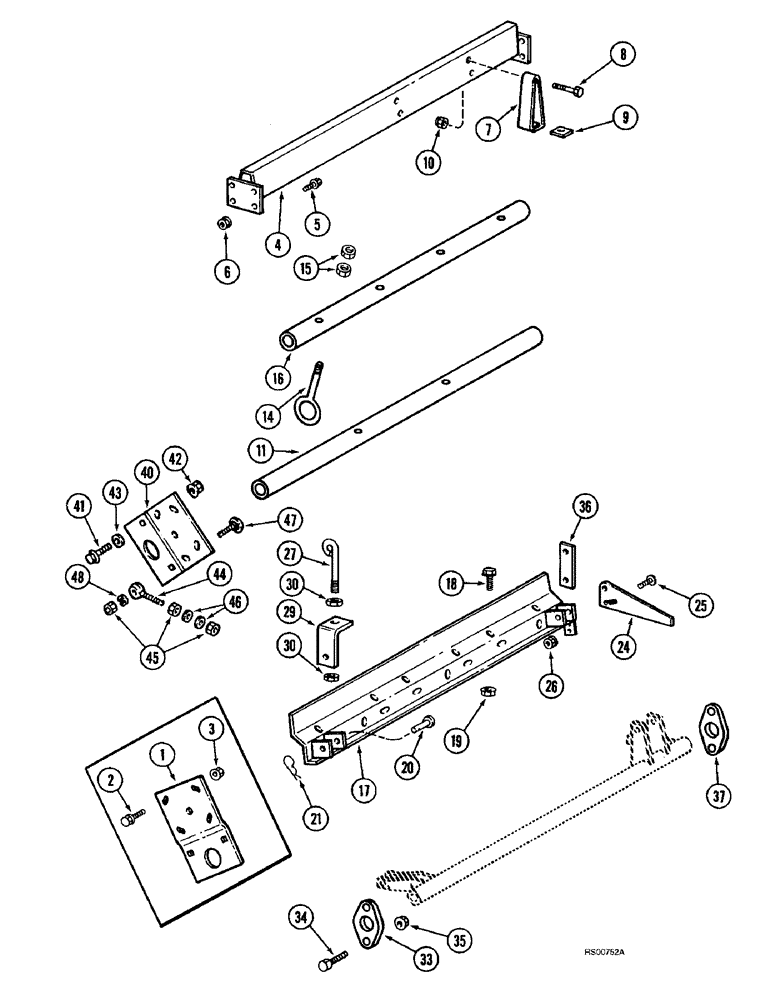

Запчасти Case IH 1680 (9B-36) - CONCAVES, ANCHOR SUPPORTS (14) - ROTOR, CONCANVES & SIEVE

1

1338041C2

SUPPORT

- concave anchor, prior to P.I.N. JJC0028498

2шт.

2

1302142C1

BOLT,Flng, 1/2" - 13 x 1-1/4"

BOLT - hex flange, special, 1/2 NC x 1-1/4 inch, prior to P.I.N. JJC0028498

10шт.

3

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

Prior to P.I.N. JJC0028498 Flg, USR, 1/2"-13

10шт.

4

1317229C1

SUPPORT

- Concave, RH

1шт.

5

1302142C1

BOLT,Flng, 1/2" - 13 x 1-1/4"

BOLT - hex flange, special, 1/2 NC x 1-1/4 inch

6шт.

6

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

6шт.

7

1317233C1

SUPPORT

- concave strap

2шт.

8

426-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

- hex, 1/2 NC x 3 inch, grade 8

2шт.

9

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

- flat, 17/32 x 1-1/4 x 3/16 inch, hardened

2шт.

10

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

2шт.

11

195255C1

PIPE

- concave control

1шт.

14

1317280C1

BOLT,1/2" - 13 x 152mm, Full Thd

EYEBOLT - concave

6шт.

15

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

12шт.

16

193790C3

PIPE

- concave control

1шт.

17

1318433C1

SUPPORT

- concave anchor

1шт.

18

410-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 8

- hex serrated flange, 3/8 NC x 1 inch, grade 8

12шт.

19

231-5146

FLANGE NUT,3/8"-16

12шт.

20

439-1823

HEADED PIN,12.7mm OD x 22.23mm L

PIN - headed, 1/2 x 1-7/16 inch, grade 2

2шт.

21

586591R1

COTTER PIN

PIN - cotter, hair, 1/8 inch

2шт.

24

1318880C1

SUPPORT

- concave indicator

1шт.

25

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

BOLT - serrated slotted truss head, 1/4 NC x 1/2 inch

2шт.

26

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

27

1317348C1

BOLT,1/2" - 13 x 114mm, Cl 5, Full Thd

EYEBOLT - concave adjusting

1шт.

29

1318894C2

SUPPORT

- concave adjusting

1шт.

30

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

33

1319251C2

SUPPORT

HUB - concave control shaft

2шт.

34

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

35

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

36

1318893C2

BAR

- concave control

1шт.

37

188351C1

HUB

- concave control shaft, front

2шт.

40

1338041C2

SUPPORT

- concave anchor, PIN JJC0028498 and after

2шт.

41

1338052C1

SCREW,Hex, 5/8" - 11 x 1 1/2", W/ Scotch Grip

BOLT - self-locking, hex flange, special, 5/8 NC x 1-1/2 inch, PIN JJC0028498 and after

5шт.

42

1338079C1

FLANGE NUT

- self-locking, hex flange, special, 5/8 inch NC, PIN JJC0028498 and after

5шт.

43

396-31066

WASHER,21/32" x 1 5/16" x .188", HDN

- flat, 21/32 x 1-5/16 x 3/16 inch, PIN JJC0028498 and after

10шт.

44

177662C2

EYEBOLT

- anchor support, PIN JJC0028498 and after

2шт.

45

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, PIN JJC0028498 and after 1/2"-13, G5

6шт.

46

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened, PIN JJC0028498 and after

4шт.

47

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - carriage, 1/2 NC x 1-1/2 inch, PIN JJC0028498 and after

2шт.

48

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , PIN JJC0028498 and after 1/2"

2шт.
