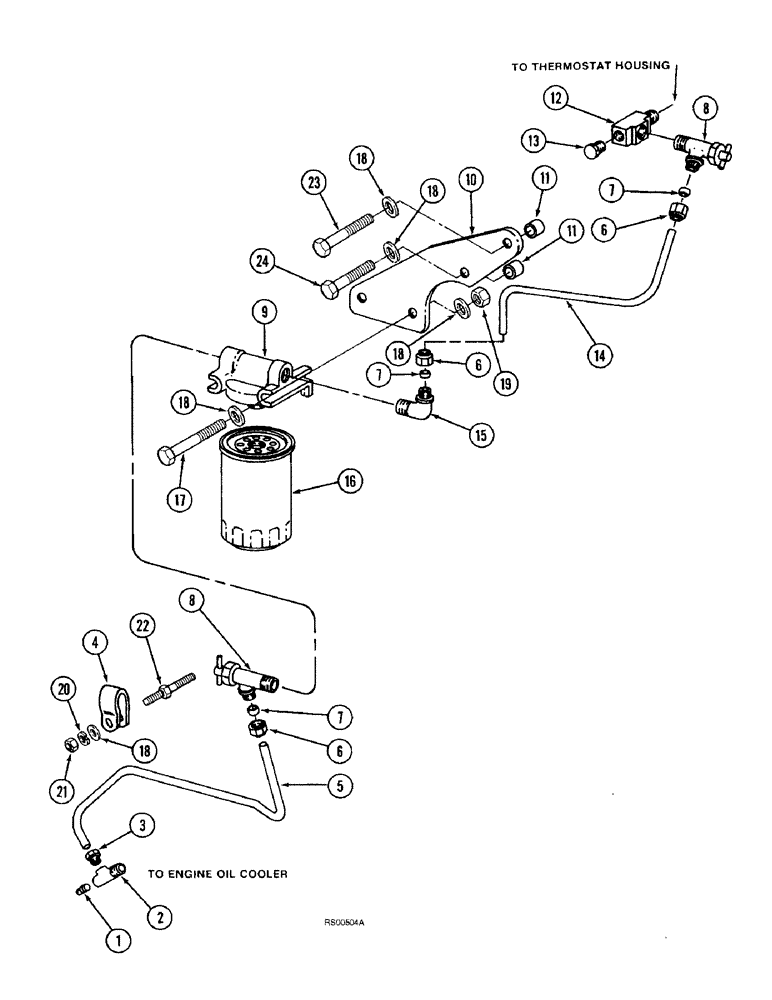

Запчасти Case IH 1680 (2-12) - COOLANT FILTER AND CONDITIONER, DTI-466C DIESEL ENGINE (01) - ENGINE

1

217-84

PLUG,Hex Hd, 1/8"-27, Brass

- hex, 1/8 inch PT

1шт.

2

690592C1

TEE,3/8" x 1/4" - 18 NPT x 1/8" - 27 NPT

- oil cooler

1шт.

3

222-1004

TUBE NUT,5/8" - 18

NUT - inverted flared tube, 3/8 inch NC

1шт.

4

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

1шт.

5

NSS

NOT SOLD SEPARAT

TUBE - 610 mm (24 inch) long, cut from 995063R1 bulk tube, see below

1шт.

6

222-114

NUT,5/8"-24

NUT - hex, 3/8 tube OD x 5/8-24 inch

3шт.

7

222-104

SLEEVE,3/8" Tube

- 3/8 inch tube OD

3шт.

8

121894C1

FAUCET,3/8" - 18 NPTF x 5/8" - 24

VALVE - shut-off

2шт.

Used with Motorola alternator

1шт.

8

1809708C1

VALVE

- shutoff

1шт.

Used with Bosch alternator

1шт.

9

1800029C1

HEAD

ER - coolant filter

1шт.

Used with Motorola alternator

1шт.

9

1810502C91

HEAD ASSY.

HEADER - coolant filter

1шт.

Used with Bosch alternator

1шт.

1810561C1

SLEEVE

- header

1шт.

Used with Bosch alternator

1шт.

238-5009

O-RING,0.07" Thk x 0.208" ID, -9, Cl 5, 75 Duro

-009, 70 Duro, .208" ID x .070" Thk

1шт.

Used with Bosch alternator

1шт.

18530R1

LOCK PIN,1/8" x 1 1/2", Slotted

Pin, 1/8" x 1 1/2", Slotted

1шт.

Used with Bosch alternator

1шт.

10

1800030C1

BRACKET

- mounting, coolant filter

1шт.

11

603046R1

SPACER,3/8" X-Strng Pipe x 7/8"

- pipe, 3/8 x 13/16 inch

2шт.

12

444150

TEE,3/8"-18 NPTF Fem x 3/8"-18 NPTF Male Run

- pipe, 3/8-18 PT

1шт.

13

217-87

PLUG,Hex Hd, 3/8"-18 NPTF, Brass

- hex, 3/8 inch PT

1шт.

14

NSS

NOT SOLD SEPARAT

TUBE - 381 mm (15 inch) long, cut from 995063R1 bulk tube, see below

1шт.

15

222-48

ELBOW,90º, 13/16"-18 Fem x 3/8"-18 NPTF

- 90 degree, compression, 3/8 tube OD x 3/8 inch PT

1шт.

15

222-28

HYD CONNECTOR,5/8"-24 x 3/8" NPTF W/Nut

FITTING - flex tube, 3/8 x 3/8 inch NPT

1шт.

Use when installing Motorola to Bosch alternator conversion kit 1979358C1

1шт.

16

A77544

FILTER

- water conditioning, precharge, replaces A151931 filter

1шт.

17

326-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 8

2шт.

18

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

7шт.

19

329-106

NUT,3/8"-16, G8

2шт.

20

492-11038

LOCK WASHER,3/8"

1шт.

21

329-116

NUT,3/8"-24, G8

1шт.

22

690206C1

STUD,3/8" - 24 x 2 1/4", Grade 8

- 3/8 NC x 3/8 inch NF

1шт.

23

326-664

BOLT,Hex, 3/8" - 16 x 4", Gr 8

- hex, 3/8 NC x 4 inch, grade 8

1шт.

24

326-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 8

1шт.

995063R1

TUBE

- bulk, 15240 mm (600 inch) long, sold by the foot

1шт.
