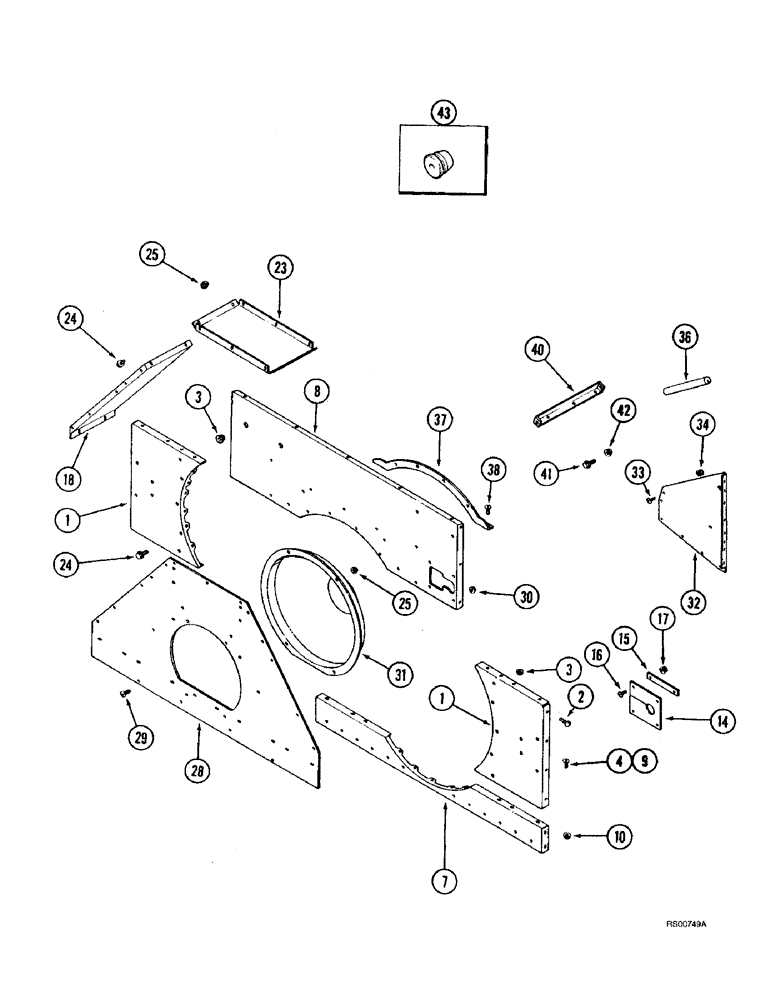

Запчасти Case IH 1680 (9B-30) - CAGE, REAR (14) - ROTOR, CONCANVES & SIEVE

1

191269C4

SUPPORT

- rotor cage, rear

2шт.

2

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

8шт.

3

231-5146

FLANGE NUT,3/8"-16

40шт.

4

1302160C1

SCREW,Truss HD, 3/8" - 16 x 3/4"

LOCK, Sltd Truss Hd, 3/8"-16 x 3/4"

8шт.

7

182931C1

SUPPORT

- lower cage, rear

1шт.

8

193392C2

SUPPORT

- rear upper rotor

1шт.

9

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

11шт.

10

231-5146

FLANGE NUT,3/8"-16

11шт.

14

191191C2

GASKET,6.35mm Thk

SEAL - dust, drive line

1шт.

15

191192C1

BAR

- dust seal

2шт.

16

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

4шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

18

193393C1

COVER

- discharge side

2шт.

23

193170C1

COVER

- discharge top

1шт.

24

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

7шт.

24

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

3шт.

25

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

7шт.

28

193967C1

PLATE

- discharge back

1шт.

29

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

1шт.

30

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

31

182550C2

HOUSING

RETAINER - rotor gear housing

1шт.

32

191398C2

SHEET

SUPPORT - gear housing inner

1шт.

33

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

4шт.

34

231-5146

FLANGE NUT,3/8"-16

1шт.

36

191498C1

SEALING STRIP

SEAL - 528 mm (20-13/16 inch) long

1шт.

37

1308696C1

SUPPORT

- rear upper cage

1шт.

38

1302160C1

SCREW,Truss HD, 3/8" - 16 x 3/4"

LOCK, Sltd Truss Hd, 3/8"-16 x 3/4"

7шт.

40

182634C3

SUPPORT

STIFFENER - cage grate

1шт.

41

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

- hex flange, special, 1 inch

2шт.

42

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

43

195803C1

GROMMET

- 3/8 inch ID

1шт.

2

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

24шт.
