Запчасти Case IH 1680 (9B-28) - CAGE, FRONT (14) - ROTOR, CONCANVES & SIEVE

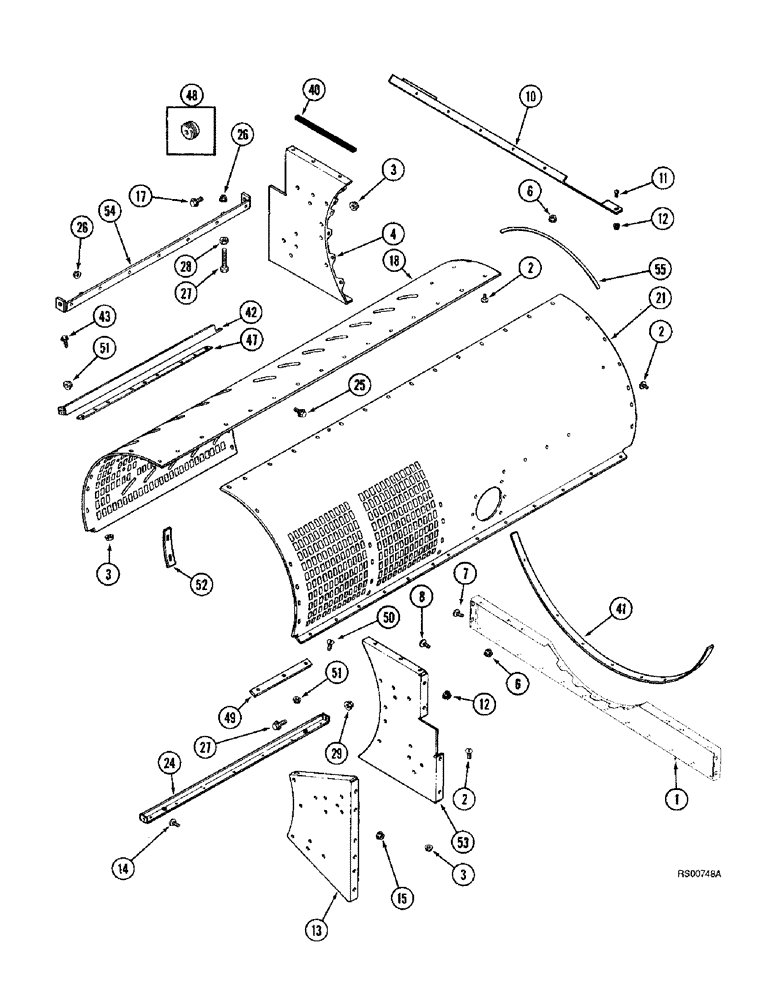

Схема запчастей Case IH 1680 - (9B-28) - CAGE, FRONT (14) - ROTOR, CONCANVES & SIEVE
12
1
3
25
54
6
53
2
15
42
51
4
3
27
28
26
50
29
8
51
2
12
3
17
43
2
47
21
52
6
49
11
27
10
55
24
7
14
41
26
48
13
18

Артикул

Название

Примечание

Количество

1

192385C1

SUPPORT

- lower seal

1шт.

2

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

10шт.

3

231-5146

FLANGE NUT,3/8"-16

10шт.

4

1338053C2

SUPPORT

- rotor cage, left-hand front, replaces 193896C3 support

1шт.

6

231-5146

FLANGE NUT,3/8"-16

12шт.

7

1302160C1

SCREW,Truss HD, 3/8" - 16 x 3/4"

LOCK, Sltd Truss Hd, 3/8"-16 x 3/4"

4шт.

8

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

6шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

6шт.

10

188372C1

SUPPORT

- front grain tank

1шт.

11

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

9шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

9шт.

13

1338057C1

SUPPORT

- cage, intermediate, right-hand, replaces 191298C3 support

2шт.

13

1338042C1

SUPPORT

- cage, intermediate, with adjusting plate, right-hand

1шт.

14

1302160C1

SCREW,Truss HD, 3/8" - 16 x 3/4"

LOCK, Sltd Truss Hd, 3/8"-16 x 3/4"

18шт.

15

231-5146

FLANGE NUT,3/8"-16

18шт.

17

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

- hex flange, special, 1 inch

2шт.

18

1318729C2

CAGE

SUPPORT - rotor, left-hand

1шт.

19

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

14шт.

20

231-5146

FLANGE NUT,3/8"-16

14шт.

21

1321661C1

SUPPORT

- rotor, right-hand

1шт.

22

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

23шт.

23

231-5146

FLANGE NUT,3/8"-16

23шт.

24

188333C1

SUPPORT

- cage, right-hand, front

1шт.

25

1319250C1

LOCK BOLT,Hex, Flg, 3/8" - 16 x 1", W/ Scotch Grip

BOLT - hex flange, special, 3/8 NC x 1 inch

14шт.

26

231-5146

FLANGE NUT,3/8"-16

14шт.

27

931008R1

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5, Full Thd

- hex, 1/2 NC x 3-1/2 inch

2шт.

28

329-148

NUT,Jam, 1/2"-13, G8

- hex, jam, 1/2 inch NC, grade 8

2шт.

29

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

40

NSS

NOT SOLD SEPARAT

SEAL - grain tank support, see below

2шт.

41

186750C1

SUPPORT

- cage filler

1шт.

42

185386C1

SUPPORT

- cage, left-hand

1шт.

43

1319250C1

LOCK BOLT,Hex, Flg, 3/8" - 16 x 1", W/ Scotch Grip

BOLT - hex flange, special, 3/8 NC x 1 inch

1шт.

44

231-5146

FLANGE NUT,3/8"-16

1шт.

47

183323C1

STRAP

BAR - cage grate

1шт.

48

198822C1

GROMMET,6.35mm ID x 41.1mm OD x 26.9mm Thk

- 1/4 inch ID

1шт.

48

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

- 5/8 inch ID

1шт.

48

195803C1

GROMMET

- 3/8 inch ID

1шт.

49

186785C2

REINFORCEMENT

BAR - cage reinforcement, front

1шт.

50

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

- hex flange, special, 1 inch

1шт.

51

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

52

1318900C1

SUPPORT

- cage, left-hand front

1шт.

53

1338054C1

SUPPORT

- cage, right-hand front, replaces 193897C3 support

1шт.

54

1309191C1

SUPPORT

- cage, left-hand

1шт.

55

1309111C1

SEAL,19mm W x 725mm L

- rubber, 725 mm (28-9/16 inch) long, front grain tank support

1шт.

73220C1

FILLING STRIP

SEAL - bulk, adhesive-backed, 13 (1/2) x 19 (3/4) x 1219 mm (48 inch) long

1шт.

Выбрано товаров: 45
