Запчасти Case IH 1680 (9B-26) - CONE (14) - ROTOR, CONCANVES & SIEVE

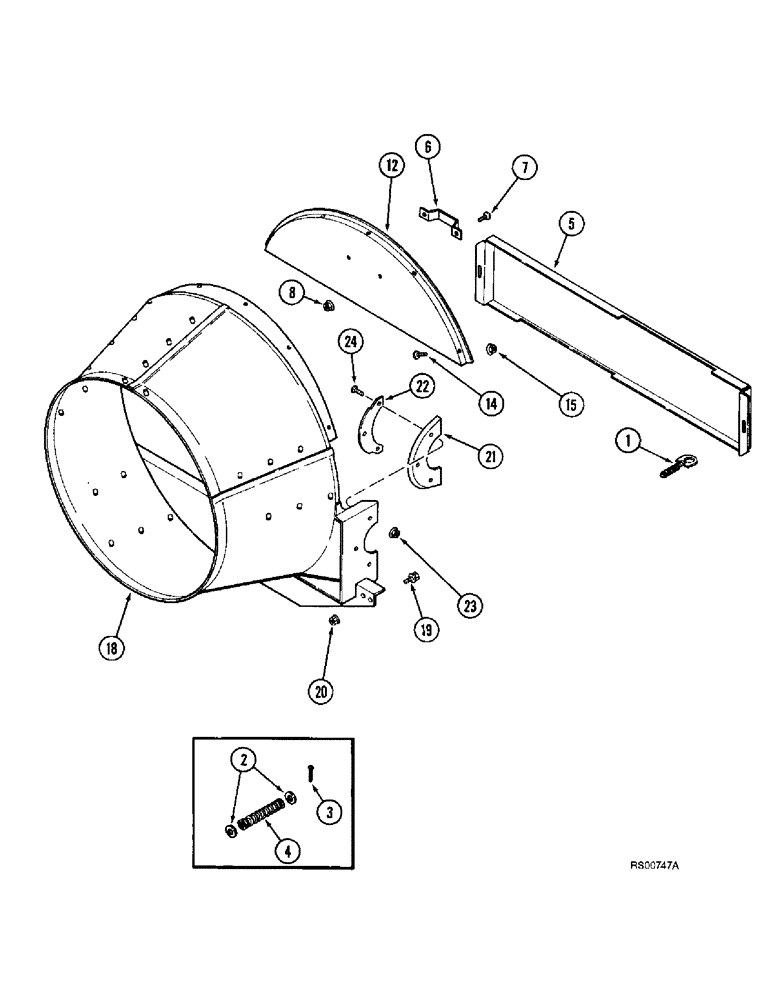

Схема запчастей Case IH 1680 - (9B-26) - CONE (14) - ROTOR, CONCANVES & SIEVE
14
1
8
15
5
23
20
18
24
22
7
19
12
21
6

Артикул

Название

Примечание

Количество

1

188029C1

LATCH

- separator, front door, replaces 454502R1 latch

2шт.

2

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16"), If used 3/8", SAE

4шт.

3

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), , If used 1/8" x 3/4"

2шт.

4

M296

SPRING

- rod latch, if used

2шт.

5

193608C3

SHEET

PANEL - rotor, front

1шт.

6

160638C1

HANDLE

- door

1шт.

7

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

2шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

12

193607C3

SUPPORT

DOOR - rotor, front, support, replaces 182974C93 door

1шт.

14

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

6шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

6шт.

18

1309384C2

HOUSING ASSY.

CONE - transition, rice models only, if used, Includes: Ref. 18A

1шт.

18

1317778C2

CONE

- transition, corn and grain models only, if used, Includes: Ref. 18A

1шт.

18

198102A1

CONE

- transition, includes bolt, rice models only, if used, Includes: Ref. 18A

1шт.

18

194049A1

CONE

- transition, includes bolt, corn and grain models only, if used, Includes: Ref. 18A

1шт.

18a

413-88

BOLT,Hex, 1/2" - 13 x 1/2", Gr 5

- hex, 1/2 NC x 1/2 inch, not shown

1шт.

19

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

4шт.

20

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

Rice models only Flg, USR, 1/2"-13

4шт.

20

231-5146

FLANGE NUT,3/8"-16

Corn and grain models only Flg, USR, 3/8"-16

4шт.

21

195202C1

SEAL

- feeder

2шт.

22

195409C1

PLATE

- with weld bolt, seal backup

2шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

6шт.

24

1324026C1

BOLT,Torx Hd, 5/16" - 18 x 28.58mm

BOLT - special, back-up plate

6шт.

Выбрано товаров: 23
