Запчасти Case IH 1680 (9B-24) - ROTOR, SPECIALTY CROP (CONTD) (14) - ROTOR, CONCANVES & SIEVE

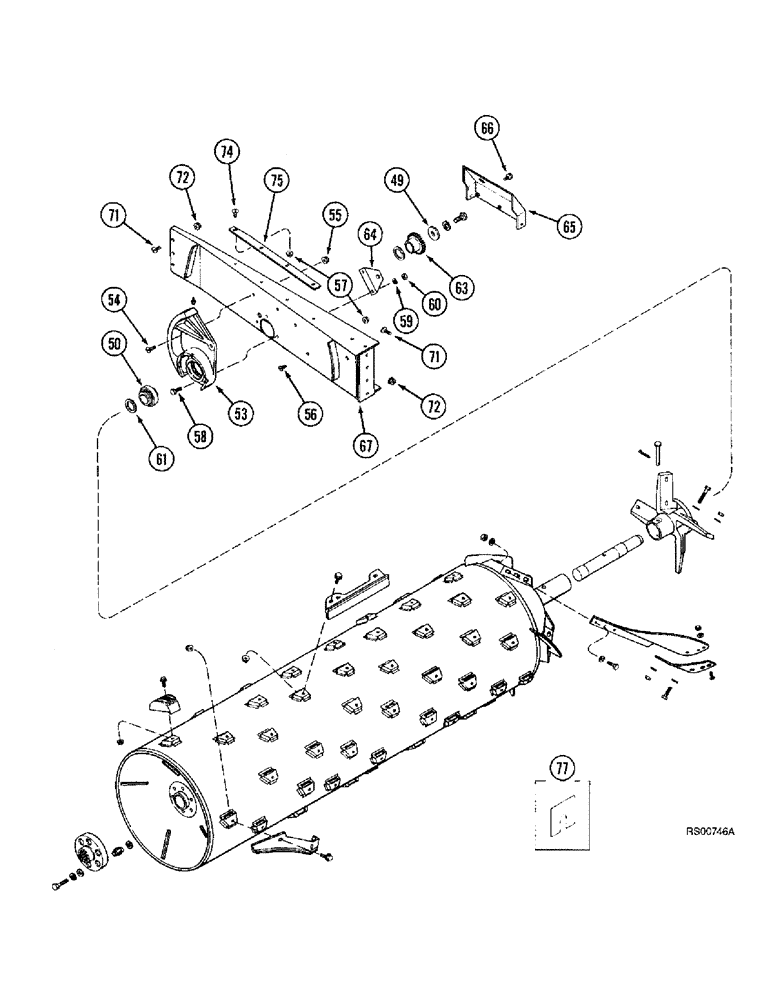

Схема запчастей Case IH 1680 - (9B-24) - ROTOR, SPECIALTY CROP (CONTD) (14) - ROTOR, CONCANVES & SIEVE
75
49
63
50
56
71
55
61
74
59
67
71
57
53
65
60
54
72
64
58
72
66
77

Артикул

Название

Примечание

Количество

49

70330C1

WASHER,19.84mm ID x 63.5mm OD x 6.35mm Thk

- flat, special, 25/32 x 2-1/2 x 1/4 inch

1шт.

50

193282C91

BEARING ASSY,50.8 mm ID x 100 mm OD x 55.5 mm

BEARING - rotor front

1шт.

53

1309076C1

BEARING HOUSING

- rotor front bearing

1шт.

54

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

BOLT - serrated slotted truss head, 3/8 NC x 1-1/4 inch

2шт.

55

231-5146

FLANGE NUT,3/8"-16

2шт.

56

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch

2шт.

57

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

58

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

3шт.

59

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

60

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

61

183449C1

WASHER,51.56mm ID x 69.85mm OD x 0.76mm Thk

WASHER - flat, special

1шт.

62

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

63

1979965C1

ROTOR

- multi-position tachometer, replaces 198527C1 rotor

1шт.

64

1301239C1

BRACKET

- rotor tachometer

1шт.

65

182845C4

SHIELD

- sensor, replaces 182844C2 shield

1шт.

66

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

3шт.

67

193384C5

SUPPORT ASSY.

SUPPORT - front bearing

1шт.

71

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

8шт.

72

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

73

1308967C1

BAR

- front door hold down

1шт.

74

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch

4шт.

75

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

1324208C1

SHIM KIT

KIT - shim, if used, Includes: Ref. 77

1шт.

77

NSS

NOT SOLD SEPARAT

SHIM - 0.010 inch

28шт.

77

NSS

NOT SOLD SEPARAT

SHIM - 0.030 inch

28шт.

77

NSS

NOT SOLD SEPARAT

SHIM - 0.053 inch

28шт.

77

NSS

NOT SOLD SEPARAT

SHIM - 0.093 inch

28шт.

Выбрано товаров: 27
