Запчасти Case IH 1680 (9B-22) - ROTOR, SPECIALTY CROP (14) - ROTOR, CONCANVES & SIEVE

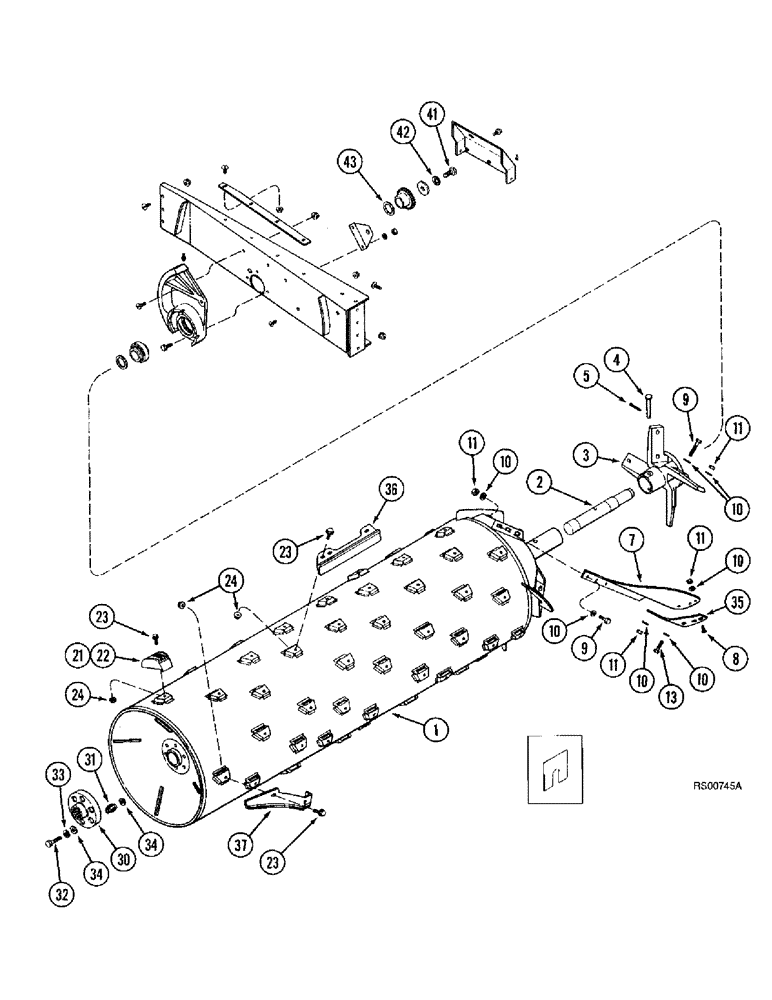

Схема запчастей Case IH 1680 - (9B-22) - ROTOR, SPECIALTY CROP (14) - ROTOR, CONCANVES & SIEVE
10
10
1
4
30
36
34
11
23
5
37
34
10
11
33
13
23
11
35
8
2
9
42
32
10
24
10
24
7
43
41
10
3
21
31
23
11
9
22

Артикул

Название

Примечание

Количество

1347123C3

ROTOR ASSY.

ROTOR ASSEMBLY - threshing, all crops except rice, replaces 1327673C92 rotor assembly, Includes: Ref. 1 - 35

1шт.

1347438C1

ROTOR

ASSEMBLY - threshing, rice, replaces 1317406C92 rotor assembly, Includes: Ref. 1 - 35

1шт.

1

NSS

NOT SOLD SEPARAT

ROTOR - threshing

1шт.

2

191545C2

SHAFT

- rotor, front

1шт.

3

184460C1

IMPELLER

- rotor, 2 arm, corn and grain, not shown

1шт.

3

188371C3

TURBINE

IMPELLER - rotor, 4 arm, bean, shown

1шт.

3

1302166C4

IMPELLER

- rotor, 2 arm, rice

1шт.

4

439-51272

HEADED PIN,3/4" x 4 1/2", G5

PIN - headed, 3/4 x 4-1/2 inch

1шт.

5

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

1957445C3

SET OF BLADES

KIT - impeller blade, Includes: Ref. 7 - 13

2шт.

7

NSS

NOT SOLD SEPARAT

BLADE - impeller

2шт.

8

361-45024

HEX SOC SCREW,1/2" - 13 x 1-1/2"

BOLT - hex socket, 1/2 NC x 1-1/2 inch

6шт.

9

426-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

- hex, 1/2 NC x 1-3/4 inch, grade 8

6шт.

10

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

- flat, 17/32 x 1-1/4 x 3/16 inch, hardened

26шт.

11

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

16шт.

12

326-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

2шт.

13

426-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

- hex, 1/2 NC x 3 inch, grade 8

2шт.

21

1309175C1

BAR

- rasp, with spike

32шт.

22

1309336C1

BAR

- rasp, without spike (All crops except rice)

44шт.

22

1968743C2

BAR

- rasp, without spike, chrome (Custom Cut)

44шт.

23

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

1шт.

24

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex flange, self-locking, special, 1/2 inch NC, grade 8

1шт.

30

185166C91

HUB

COUPLING - rotor drive, no longer available, for service order 1345307C1 coupling

1шт.

30

1345307C1

COUPLING

- rotor drive

1шт.

31

180703C1

PACKAGE,SERVICE

KIT - bushing, set of 6, used with 185166C91 coupling only

1шт.

32

326-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

6шт.

33

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

34

540468R1

WASHER,13.49mm ID x 38.1mm OD x 3.05mm Thk

- flat, hardened, special, 17/32 x 1-1/2 x 1/8 inch

12шт.

35

1309186C3

SUPPORT

- wear, chrome, bean

4шт.

36

1968969C3

BAR

- separator, chrome, replaces 1318976C1 bar

4шт.

37

1327676C1

BAR

ANGLE - kicker

2шт.

37

1968968C2

BAR

ANGLE - kicker, bean

2шт.

41

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

1шт.

42

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

43

S65975

WASHER,51.56mm ID x 69.85mm OD x 1.58mm Thk

- flat, 2-1/32 x 2-3/4 x 1/16 inch

1шт.

Выбрано товаров: 35
