Запчасти Case IH 1680 (9B-18) - ROTOR, CORN AND GRAIN, 184464C2 (14) - ROTOR, CONCANVES & SIEVE

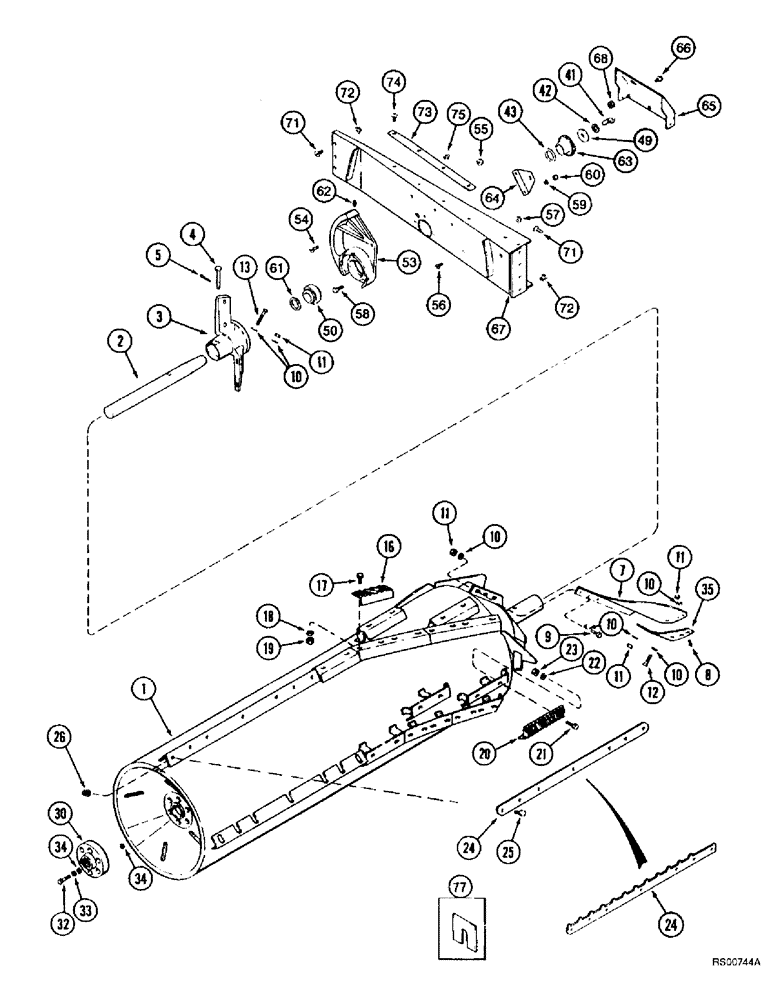

Схема запчастей Case IH 1680 - (9B-18) - ROTOR, CORN AND GRAIN, 184464C2 (14) - ROTOR, CONCANVES & SIEVE
18
24
5
19
75
34
72
21
65
22
35
67
59
4
17
10
60
55
10
73
72
63
13
7
66
57
9
56
10
11
68
12
26
64
10
42
23
20
25
3
11
54
30
62
24
10
50
11
34
58
16
32
71
53
41
77
49
2
43
61
74
33
8
71
11
1

Артикул

Название

Примечание

Количество

184464C2

ROTOR ASSY.

ROTOR ASSEMBLY - threshing, straight rear bar, Includes: Ref. 1 - 35

1шт.

1

NSS

NOT SOLD SEPARAT

ROTOR - threshing

1шт.

2

191545C2

SHAFT

- rotor, front

1шт.

3

184460C1

IMPELLER

- rotor, 2 arm

1шт.

4

439-51272

HEADED PIN,3/4" x 4 1/2", G5

PIN - headed, 3/4 x 4-1/2 inch

1шт.

5

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

1957445C3

SET OF BLADES

KIT - impeller blade, Includes: Ref. 7 - 13

1шт.

7

NSS

NOT SOLD SEPARAT

BLADE - impeller

2шт.

8

361-45024

HEX SOC SCREW,1/2" - 13 x 1-1/2"

BOLT - hex socket, 1/2 NC x 1-1/2 inch

6шт.

9

426-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

- hex, 1/2 NC x 1-3/4 inch, grade 8

6шт.

10

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

- flat, 17/32 x 1-1/4 x 3/16 inch, hardened

26шт.

11

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

16шт.

12

326-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

2шт.

13

426-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

- hex, 1/2 NC x 3 inch, grade 8

2шт.

16

1308830C2

RASP BAR

BAR - helical, rasp, 120 degree

16шт.

16

1324581C3

RASP BAR

BAR - helical, rasp, 120 degree, chrome

16шт.

Not part of rotor assembly and must be purchased separately.

1шт.

16

1994892C1

RASP BAR

BAR - helical, smooth

16шт.

Not part of rotor assembly and must be purchased separately.

1шт.

17

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

32шт.

18

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

32шт.

19

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

32шт.

20

1308668C1

RASP BAR

BAR - straight, rasp

12шт.

20

1324582C2

RASP BAR

BAR - straight, rasp, chrome

12шт.

Not part of rotor assembly and must be purchased separately.

1шт.

20

1994890C1

RASP BAR

BAR - straight, smooth

12шт.

Not part of rotor assembly and must be purchased separately.

1шт.

21

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

24шт.

22

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

24шт.

23

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

24шт.

24

1303038C2

BAR

- rotor, rear straight

4шт.

24

1324580C2

BAR

- rotor, rear straight, chrome

4шт.

Not part of rotor assembly and must be purchased separately.

1шт.

24

1302103C3

BAR

- rotor, with teeth

4шт.

25

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

- hex serrated flange, 3/8 NC x 1-1/4 inch

28шт.

26

231-5146

FLANGE NUT,3/8"-16

28шт.

30

1345307C1

COUPLING

- rotor drive

1шт.

32

426-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

- hex, 1/2 NC x 3 inch, grade 8

6шт.

33

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

34

540468R1

WASHER,13.49mm ID x 38.1mm OD x 3.05mm Thk

- flat, hardened, special, 17/32 x 1-1/2 x 1/8 inch

12шт.

35

1309186C2

BAR

- wear, chrome

2шт.

41

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

1шт.

42

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

43

495-81097

WASHER,51.59mm ID x 69.85mm OD x 2.29mm Thk

- flat, 2-1/32 x 2-3/4 x 1/16 inch

1шт.

49

70330C1

WASHER,19.84mm ID x 63.5mm OD x 6.35mm Thk

- flat, special, 25/32 x 2-1/2 x 1/4 inch

1шт.

50

193282C91

BEARING ASSY,50.8 mm ID x 100 mm OD x 55.5 mm

BEARING - rotor front

1шт.

53

1309076C1

BEARING HOUSING

- rotor front bearing

1шт.

54

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

BOLT - serrated slotted truss head, 3/8 NC x 1-1/4 inch

2шт.

55

231-5146

FLANGE NUT,3/8"-16

2шт.

56

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch

2шт.

57

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

58

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

3шт.

59

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

60

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

61

183449C1

WASHER,51.56mm ID x 69.85mm OD x 0.76mm Thk

WASHER - flat, special

1шт.

62

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

63

1979965C1

ROTOR

- multi-position tachometer

1шт.

64

1301239C1

BRACKET

- rotor tachometer

1шт.

65

182845C4

SHIELD

- sensor

1шт.

66

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

3шт.

67

193384C5

SUPPORT ASSY.

SUPPORT - front bearing

1шт.

68

131-872

SPRING NUT,Ret, 3/8"-16

- hex, 3/8 inch NC

3шт.

71

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

8шт.

72

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

73

1308967C1

BAR

- front door hold down

1шт.

74

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch

4шт.

75

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

1324208C1

SHIM KIT

KIT - shim, Includes: Ref. 77

1шт.

77

NSS

NOT SOLD SEPARAT

SHIM - 0.010 inch

28шт.

77

NSS

NOT SOLD SEPARAT

SHIM - 0.030 inch

28шт.

77

NSS

NOT SOLD SEPARAT

SHIM - 0.053 inch

28шт.

77

NSS

NOT SOLD SEPARAT

SHIM - 0.093 inch

28шт.

Выбрано товаров: 72
