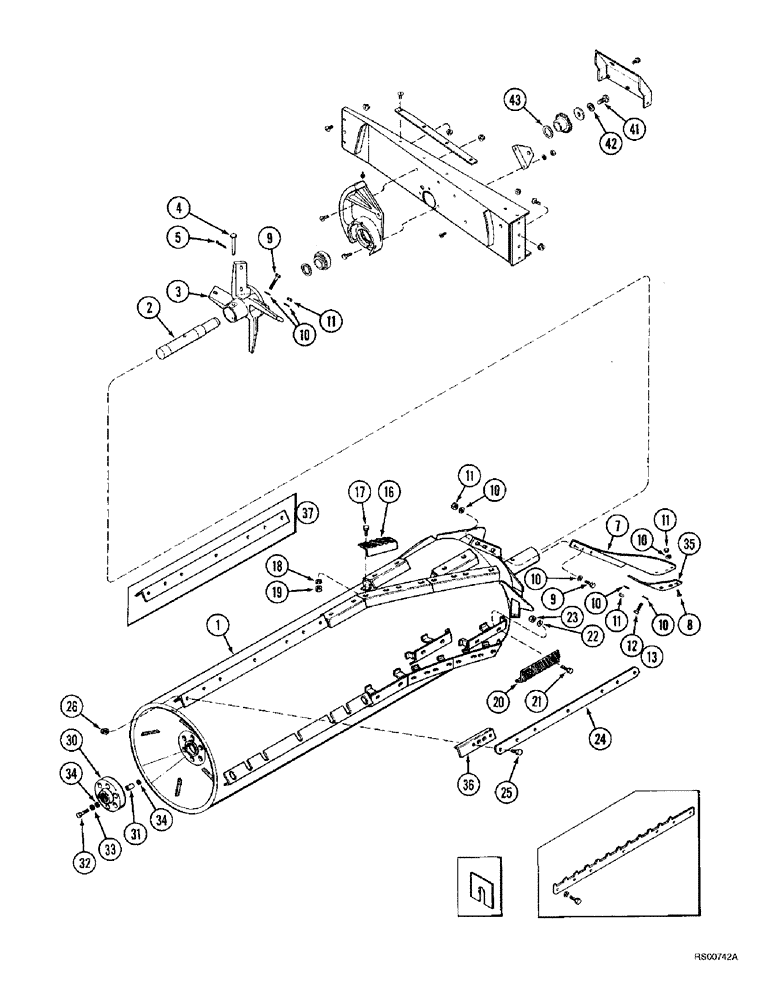

Запчасти Case IH 1680 (9B-14) - ROTOR, CORN AND GRAIN, 181954C96 (14) - ROTOR, CONCANVES & SIEVE

1

181954C96

ROTOR

ASSEMBLY - threshing, no longer available, for service order 184464C2 rotor assembly, Figure 9B-18, Includes: Ref. 2 - 37, except those marked individually

1шт.

2

191545C2

SHAFT

- rotor, front

1шт.

3

188371C3

TURBINE

IMPELLER - rotor, 4 arm, front

1шт.

4

439-51272

HEADED PIN,3/4" x 4 1/2", G5

PIN - headed, 3/4 x 4-1/2 inch

1шт.

5

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

1957445C3

SET OF BLADES

KIT - impeller blade, Includes: Ref. 7 - 13

2шт.

7

NSS

NOT SOLD SEPARAT

BLADE - impeller

2шт.

8

361-45024

HEX SOC SCREW,1/2" - 13 x 1-1/2"

BOLT - hex socket, 1/2 NC x 1-1/2 inch

6шт.

9

426-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

- hex, 1/2 NC x 1-3/4 inch, grade 8

6шт.

10

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

- flat, 17/32 x 1-1/4 x 3/16 inch, hardened

26шт.

11

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

16шт.

12

326-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

2шт.

13

426-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

- hex, 1/2 NC x 3 inch, grade 8

2шт.

16

1308830C2

RASP BAR

BAR - helical, rasp, 120 degree

16шт.

16

1324581C3

RASP BAR

BAR - helical, rasp, 120 degree, chrome

16шт.

Not part of rotor assembly and must be purchased separately.

1шт.

16

1994892C1

RASP BAR

BAR - helical, smooth

16шт.

Not part of rotor assembly and must be purchased separately.

1шт.

17

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

32шт.

18

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

32шт.

19

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

32шт.

20

1308668C1

RASP BAR

BAR - straight, rasp

12шт.

20

1324582C2

RASP BAR

BAR - straight, rasp, chrome

12шт.

Not part of rotor assembly and must be purchased separately.

1шт.

20

1994890C1

RASP BAR

BAR - straight, smooth

12шт.

Not part of rotor assembly and must be purchased separately.

1шт.

21

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

24шт.

22

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

24шт.

23

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

24шт.

24

1303038C2

BAR

- rotor, rear straight

4шт.

24

1324580C2

BAR

- rotor, rear straight, chrome

4шт.

Not part of rotor assembly and must be purchased separately.

1шт.

25

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

- hex serrated flange, 3/8 NC x 1-1/4 inch

28шт.

26

231-5146

FLANGE NUT,3/8"-16

28шт.

30

1345307C1

COUPLING

- rotor drive, replaces 185166C91

1шт.

31

180703C1

PACKAGE,SERVICE

KIT - bushing, set of 6 used with 185166C91 coupling only

1шт.

32

326-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

Used with 185166C91 coupling only Hex, 1/2"-13 x 2 3/4", G8

6шт.

32

426-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

- hex, 1/2 NC x 3 inch, grade 8, Used with 1345307C1 coupling

6шт.

33

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

34

540468R1

WASHER,13.49mm ID x 38.1mm OD x 3.05mm Thk

- flat, hardened, special, 17/32 x 1-1/2 x 1/8 inch

12шт.

35

183264C3

BAR

- wear

4шт.

35

1309186C3

SUPPORT

- wear, chrome

4шт.

Not part of rotor assembly and must be purchased separately.

1шт.

36

183335C3

SUPPORT

BRACKET - rotor extension

2шт.

37

1324031C1

PACKAGE

KIT - grain rotor separator angle bar support, set of 4 supports

1шт.

41

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

1шт.

42

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

43

S65975

WASHER,51.56mm ID x 69.85mm OD x 1.58mm Thk

- flat, 2-1/32 x 2-3/4 x 1/16 inch

1шт.
