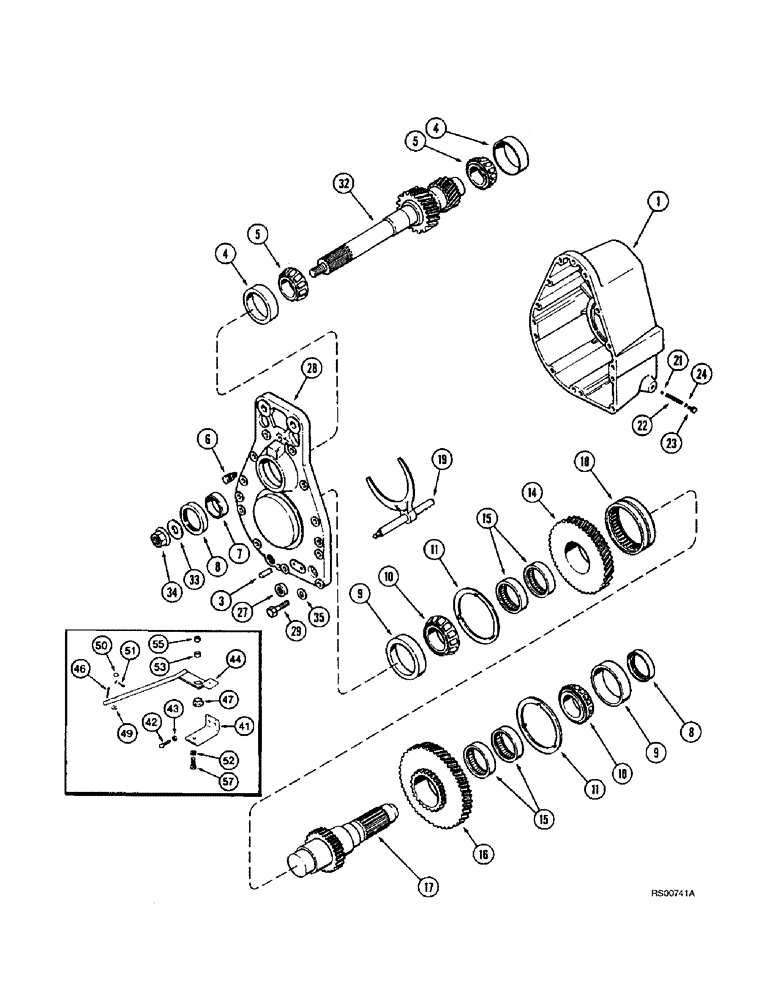

Запчасти Case IH 1680 (9B-12) - ROTOR DRIVE GEAR HOUSING, 1315328C4 (14) - ROTOR, CONCANVES & SIEVE

1315328C4

GEARBOX

HOUSING ASSEMBLY - gear, rotor drive, Includes: Ref. 1 - 35

1шт.

1315328C4R

REMAN-ROTOR DRIVE

REMAN - Rotor Drive 2 speed

1шт.

1

194064C91

HOUSING ASSY.

HOUSING ASSEMBLY - rotor gear, Includes: Ref. 3

1шт.

3

37-1820

DOWEL,1/2" x 1 1/4"

PIN - dowel, 1/2 x 1-1/4 inch, hardened

2шт.

4

ST863

BEARING CUP,93.22mm OD x 23.81mm W

CUP - tapered roller bearing

2шт.

5

ST783A

TAPERED BEARING,2" ID x 3.6718" OD x 1.1875"

CONE - tapered roller bearing

2шт.

6

152127H1

BREATHER,1/8"-27, Short

- 1/8 inch PT

1шт.

7

194047C1

BUSHING,49.16mm ID x 63.5mm OD x 21.02mm L

- input shaft

1шт.

8

194051C1

SEAL,63.42mm ID x 82.8mm OD x 11mm Thk

- oil

2шт.

9

22396V

BEARING, CUP,112.739mm OD x 30.37mm W

CUP - tapered roller bearing

2шт.

10

13367DC

ROLLER BEARING

CONE - tapered roller bearing

2шт.

11

194057C1

THRUST WASHER,127mm ID x 152.4mm OD x 1.6mm Thk

WASHER - thrust

2шт.

14

193826C1

PINION

GEAR - driven, 51 teeth

1шт.

15

619085C91

BEARING, NEEDLE,Needle, 76.19mm ID x 89.04mm OD x 19.05mm W

BEARING - needle

4шт.

16

193824C1

GEAR

GEAR - driven, 58 teeth

1шт.

17

194059C1

SHAFT

- rotor drive output

1шт.

18

194069C1

COLLAR

- shift

1шт.

19

100400A1

SHIFTER FORK

FORK - shift

1шт.

21

211-1014

BALL,7/16" Dia

- chrome alloy steel, 7/16 inch, grade 24

1шт.

22

107234C1

SPRING

- compression

1шт.

23

129998

PLUG,1/2" - 20 ORB

Incl. Ref. 24 Hex Hd, 1/2"-20 ORB

1шт.

27

G10450

OIL SEAL,19.05mm ID x 31.85mm OD x 6.35mm Thk

- oil

1шт.

28

194039C3

COVER

- rotor gear housing

1шт.

29

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

11шт.

32

1330280C1

SHAFT

- input

1шт.

33

370255R2

WASHER,22.63mm ID x 47.75mm OD x 4.18mm Thk

- flat, 57/64 x 1-7/8 x 7/32 inch, hardened

1шт.

34

1315288C1

FLANGE NUT

- hex, self-locking, special, 7/8 inch NC

1шт.

35

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

1шт.

41

100395A1

SUPPORT

- gear housing pivot

1шт.

42

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

43

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

44

100398A1

LEVER ASSY.

LEVER - rotor drive shift

1шт.

46

432-1216

COTTER PIN,3/16" x 1"

2шт.

47

1979265C1

BUSHING

- shift lever

1шт.

49

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

50

439-5521

HEADED PIN,5/16" x 1 5/16"

PIN - headed, 5/16 x 1-5/16 inch

1шт.

51

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

52

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

53

1979327C1

SPACER

- lever

1шт.

55

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

1шт.

57

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

24

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.
