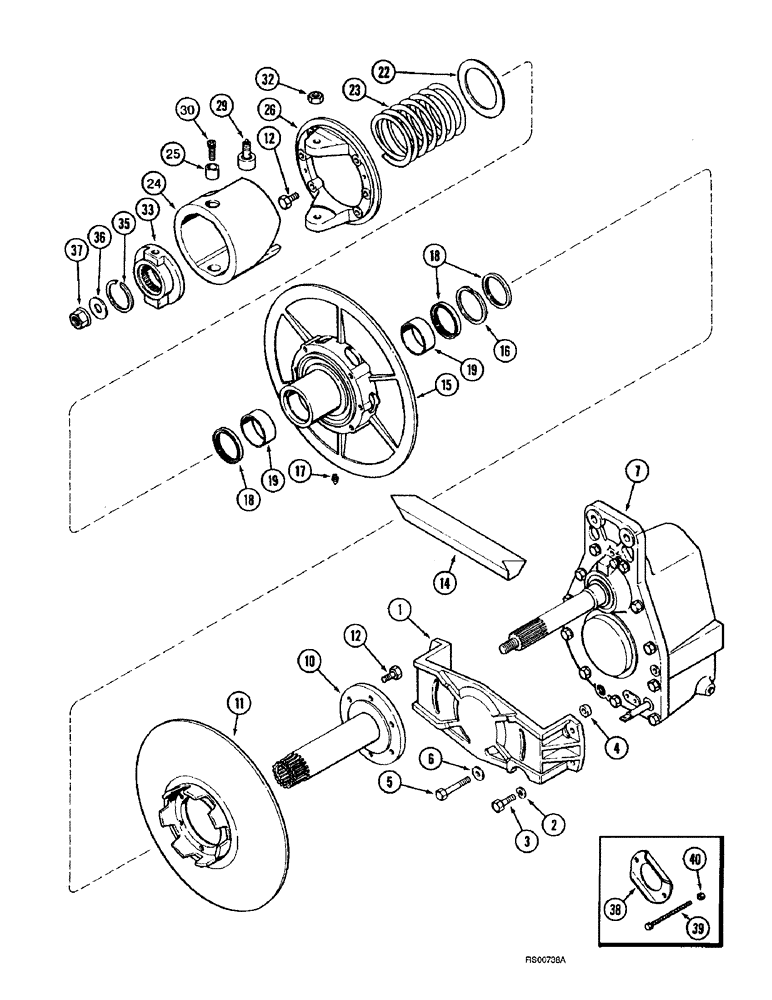

Запчасти Case IH 1680 (9B-06) - ROTOR DRIVE PULLEY AND CAM, P.I.N. JJC0028498 AND AFTER (14) - ROTOR, CONCANVES & SIEVE

1

194058C1

SUPPORT

- rear gear housing

1шт.

2

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

3

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

4

194077C1

SPACER

- gear housing

2шт.

5

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

2шт.

6

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

- flat, 17/32 x 1-1/4 x 3/16 inch, hardened

2шт.

7

REF

INSTRUCTION

HOUSING ASSEMBLY - gear, rotor drive, See Figure 9B-10 or 9B-12 for correct assembly

1шт.

10

1315291C2

HUB

- fixed variable pulley, welded, if used

1шт.

10

184489C1

HUB

- fixed variable pulley, machine forged, if used

1шт.

11

1315292C2

PULLEY

- fixed variable

1шт.

12

310-1824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

- hex, self-locking, 1/2 NC x 1-1/2 inch, grade 8

8шт.

14

193945C2

V-BELT,2554.68 mm L

Rotor variable drive, Over center 2554.68 mm L

1шт.

15

1315294C3

PULLEY

ASSEMBLY - adjustable variable, Includes: Ref. 16 - 19

1шт.

16

537602R1

RING

- pulley retaining

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

188839C92

BUSHING,69.85mm ID x 74.64mm OD x 31.75mm L

KIT - repair, bushing and seal, variable pulley, Includes: Ref. 18 & 19

1шт.

18

193965C91

SEAL

- pulley

3шт.

19

NSS

NOT SOLD SEPARAT

BUSHING - pulley

2шт.

22

1315521C1

THRUST BEARING

WASHER - thrust

1шт.

23

193936C2

SPRING

- rotor drive torque sensing

1шт.

184478C1

CAM

ASSEMBLY - follower, torque sensing, Includes: Ref. 24 & 25

1шт.

24

NSS

NOT SOLD SEPARAT

CAM - torque sensing

1шт.

25

193941C1

BUSHING,22.23mm ID x 25.41mm OD x 15.88mm L

- yoke pivot

2шт.

26

1315344C2

HUB

- cam follower

1шт.

29

1315343C1

BEARING,38.1 mm OD x 22.22 mm

- cam follower

2шт.

30

194167C1

SCREW,5/8 - 11" x 1"

BOLT - cam follower yoke pivot

2шт.

32

425-1110

NUT,5/8"-18, G5

2шт.

33

1315297C2

HUB,20T

CAM - torque sensing

1шт.

35

360171R1

SNAP RING,M66.67 x 3.23mm Thk, Ext

- retaining

1шт.

36

370255R2

WASHER,22.63mm ID x 47.75mm OD x 4.18mm Thk

- flat, 57/64 x 1-7/8 x 7/32 inch, hardened

1шт.

37

1315288C1

FLANGE NUT

- hex, self-locking, special, 7/8 inch NC

1шт.

38

1315304C2

PLATE

- torque spring

1шт.

39

186365C1

BOLT

BOLT - torque sensing spring

2шт.

40

425-106

NUT,3/8"-16, Cl 5

1шт.
