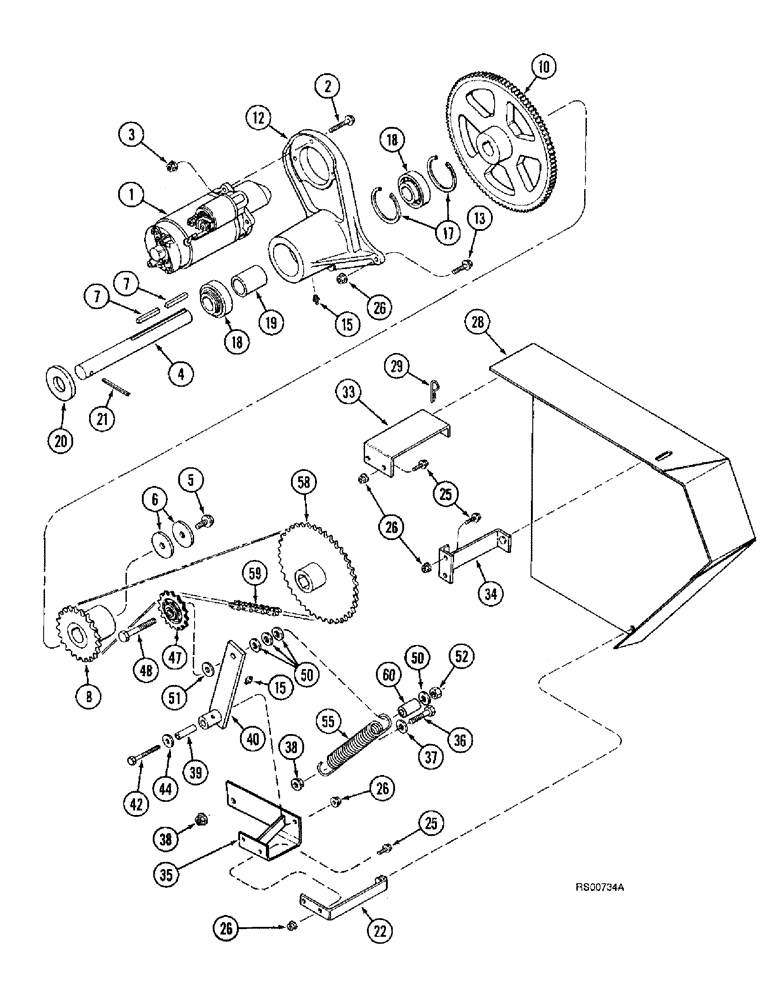

Запчасти Case IH 1680 (9A-46) - FEEDER REVERSER, WITHOUT ROCK TRAP (13) - FEEDER

1

245927C91

STARTING MOTOR

MOTOR ASSEMBLY - feeder reverser, parts list Figure 4-50

1шт.

1

245927C93R

REMAN-STARTER

REMANUFACTURED STARTING MOTOR

1шт.

1

245927C93C

CORE-STARTER

Return Number, STARTING MOTOR

1шт.

2

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

BOLT - hex, 3/8 NC x 2-1/4 inch

3шт.

3

231-5146

FLANGE NUT,3/8"-16

NUT, Flg, USR, 3/8"-16

3шт.

4

1321534C1

SHAFT

SHAFT - reverser

1шт.

5

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

BOLT - hex serrated flange, 1/2 NC x 1 inch

1шт.

6

495-91167

WASHER,13.49mm ID x 50.8mm OD x 3.4mm Thk

WASHER - flat, 17/32 x 2 x 7/64 inch

2шт.

7

Q51

KEY,3/8" Sq x 2 1/2", Par

KEY, 3/8" Sq x 2 1/2", Par

2шт.

8

1329717C1

SPROCKET

SPROCKET - drive, 20 teeth

1шт.

10

1321537C92

PINION,320mm OD, W/ Ring Gear

FLYWHEEL - feeder reverser motor

1шт.

12

1321539C1

HOUSING

HOUSING - shaft

1шт.

13

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

BOLT, Hex Flg, 3/8"-16 x 1 1/2", Serr

2шт.

15

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

2шт.

17

100-21315

SNAP RING,3.156", Int, #315

Ring, Snap, 3.156", Int, #315

2шт.

18

597537R91

BEARING ASSY,38.1mm ID x 80mm OD x 18mm W

BEARING - ball

2шт.

19

1321523C1

SPACER

SPACER - bearing

1шт.

20

896-16036

WASHER,39mm ID x 78mm OD x 7mm Thk

WASHER - flat, 39 x 78 x 7 mm, hardened

1шт.

21

38-33248

PIN,1/2" x 3", Coiled

Pin, 1/2" x 3", Coiled

1шт.

22

1321780C2

SUPPORT

SUPPORT - shield

1шт.

25

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

BOLT - hex, self-locking, special, 3/8 NC x 1 inch

1шт.

26

231-5146

FLANGE NUT,3/8"-16

NUT, Flg, USR, 3/8"-16

1шт.

28

120866A1

GUARD

SHIELD - feeder reverser, includes decal, replaces 1321516C2 shield

1шт.

29

480523R1

HAIR PIN COTTER

HAIR PIN COTTER

3шт.

33

1329840C1

BRACKET

BRACKET - support, rear

1шт.

34

1329838C2

BRACKET

BRACKET - support, front

1шт.

35

1957648C2

SUPPORT

SUPPORT - idler bar, replaces 1321929C2 support

1шт.

36

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

BOLT, Hex, 1/2"-13 x 2", G5

1шт.

37

496-21053

WASHER,17/32" x 1 1/16" x .134"

WASHER - flat, 17/32 x 1-1/16 x 1/8 inch, hardened

1шт.

38

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

NUT, Flg, USR, 1/2"-13

2шт.

39

221338H1

SPACER,10.3mm ID x 15.88mm OD x 50.8mm L

SPACER - 5/8 x 2 inch

1шт.

40

1321933C3

SUPPORT

SUPPORT - idler

1шт.

42

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

BOLT, Hex, 3/8"-16 x 3", G5

1шт.

44

25553R1

WASHER,13/32" x 1 1/8" x .134", HDN

WASHER - flat, 13/32 x 1-1/8 x 9/64 inch

1шт.

47

629972R91

DRIVE SPROCKET,15T

SPROCKET - idler, 15 teeth

1шт.

48

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

BOLT - hex, 5/8 NC x 3-3/4 inch

1шт.

48

425-1010

NUT,5/8"-11, G5

NUT, 5/8"-11, G5

1шт.

50

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

WASHER, 21/32" x 1 5/16" x .150", HDN

4шт.

51

396-31066

WASHER,21/32" x 1 5/16" x .188", HDN

WASHER - flat, 21/32 x 1-5/16 x 3/16 inch

1шт.

52

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

55

1330032C1

SPRING

SPRING - return, idler

1шт.

58

1329720C2

SPROCKET

SPROCKET - driven, 40 teeth

1шт.

59

1321524C94

CHAIN,60, 76 Links x 19.05mm = 1447.8mm

CHAIN - drive, 57 inch long, 76 links

1шт.

60

UA17298

SPACER,7/8" Tube x 1 1/16"

SPACER - 7/8 x 1-1/16 inch

1шт.
