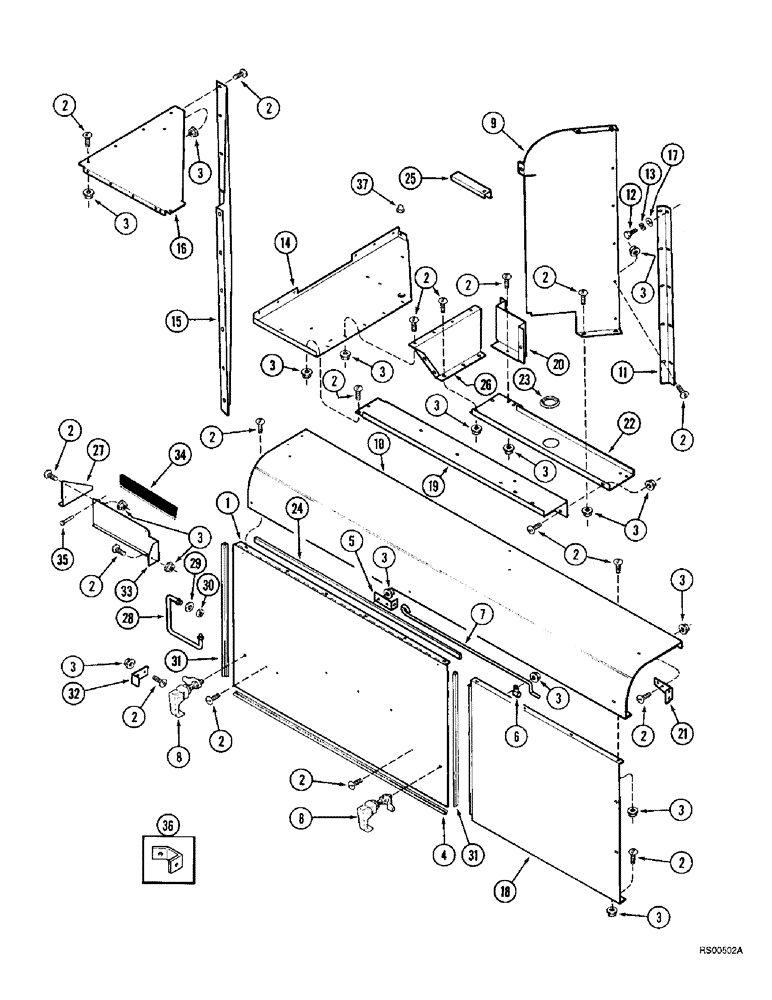

Запчасти Case IH 1680 (2-08) - ROTARY AIR SCREEN CHUTE (01) - ENGINE

1

1321245C1

DOOR

- radiator access

1шт.

2

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

84шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

92шт.

4

1319691C1

SEAL

SEAL - 1180 mm (46-1/2 inch) long, radiator access door, bottom

1шт.

5

1319697C1

SUPPORT

- rod mounting

1шт.

6

362123R1

CLIP

- retaining

1шт.

7

183444C1

ROD

- tank lower door, left-hand

1шт.

8

1302494C2

LATCH

- access door

2шт.

9

1317996C1

GUARD

DEFLECTOR - screen chute

1шт.

10

1319809C1

CHUTE (DOWNWARD)

CHUTE - top sheet

1шт.

11

1317733C1

SUPPORT

- deflector

1шт.

12

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

19шт.

13

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

14

1970105C2

SHEET

SUPPORT - bottom, rear, replaces 1319678C1 support

1шт.

15

1319680C2

SUPPORT

- rear sheet

1шт.

16

1319681C1

PLATE

SHEET - upper

1шт.

17

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

11шт.

18

1321287C1

SUPPORT

PANEL - side front, front

1шт.

19

1319674C5

SUPPORT

CHUTE - bottom, rear outer

1шт.

20

1319705C1

SKIRT

- oil cooler

1шт.

21

1317704C1

SUPPORT

- bracket

1шт.

22

1319704C1

PLATE

SHEET - radiator clean out

1шт.

23

1302758C1

PLUG

- plastic, 89 mm OD

1шт.

24

NSS

NOT SOLD SEPARAT

SEAL - 953 mm (37-1/2 inch) long, cut from 1338148CX bulk seal, see below, door hinge

1шт.

25

1321146C1

SKIRT

- oil cooler, upper

1шт.

26

1319682C1

PLATE

SUPPORT - lower front

1шт.

27

1968546C1

SUPPORT

BRACKET - chute, discharge side, prior to P.I.N. JJC0038001

1шт.

27

1968548C1

SUPPORT

BRACKET - chute, discharge side, P.I.N. JJC0038001 and after

1шт.

28

1321939C2

ROD

BAR - assist handle

1шт.

29

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

2шт.

30

832-41312

NUT,M12 x 1.75, Cl 10

NUT - hex, self-locking, 12 mm - 1.75, class 10

2шт.

31

1319817C1

STRIP

SEAL - radiator door

2шт.

32

1317718C1

BRACKET

- door lock

1шт.

33

1968548C1

SUPPORT

BRACKET - chute, discharge side, replaces 1968546C1 bracket

1шт.

34

194231C2

BRUSH, COMMUTATOR

BRUSH - block off

1шт.

35

151-507

RIVET,Pop, 1/8" x .575"

- break mandrel, 1/8 x 1/2 inch

2шт.

36

561915R1

BRACKET

- support

1шт.

37

195800C1

GROMMET

- protective

1шт.

1338148CX

SEAL

- bulk, foam, adhesive-backed, 15240 mm (600 inch) long, sold by the foot

1шт.
