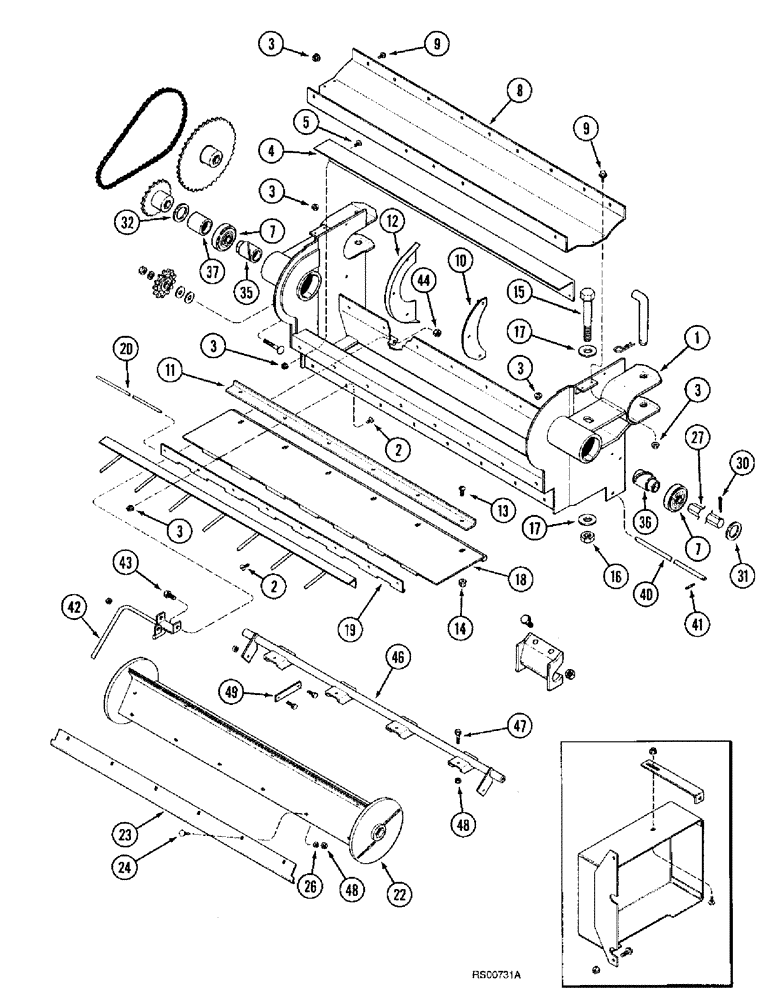

Запчасти Case IH 1680 (9A-40) - ROCK TRAP (13) - FEEDER

1

1327627C4

HOUSING

- rock trap

1шт.

2

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

6шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

44шт.

4

1320278C1

BRACKET

ANGLE - wear

1шт.

5

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

16шт.

7

179665C91

BALL BEARING,38.1mm Hex x 85mm OD x 30mm W

BEARING - ball

2шт.

8

1327926C4

COVER

- beater housing

1шт.

9

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch

8шт.

10

1320254C1

PLATE

- backup seal

2шт.

11

1324881C1

ANGLE

SEAL - angle

1шт.

12

195202C1

SEAL

- feeder

2шт.

13

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

6шт.

14

231-5146

FLANGE NUT,3/8"-16

12шт.

15

326-16104

BOLT,Hex, 1" - 8 x 6-1/2", Gr 8

2шт.

16

232-41316

NUT,1"-8, GC

NUT, LOCK, 1"-8, GC

2шт.

17

396-31106

WASHER,1.06" ID x 2" OD x 0.22" Thk

- flat, 1-1/16 x 2 x 7/32 inch, hardened

4шт.

1324908C1

DOOR

ASSEMBLY - rock trap, Includes: Ref. 18 - 20

1шт.

18

NSS

NOT SOLD SEPARAT

DOOR - trap, rock

1шт.

Ref: #18 - 1324908c1 Door/A Rock trap.

1шт.

19

1320119C1

HINGE

- door

1шт.

20

1320120C1

ROD

- hinge

1шт.

22

1319832C1

BEATER

- feed

1шт.

23

1324437C1

EXTENSION

- blade, beater

3шт.

23

1320922C2

BLADE

- serrated

3шт.

24

434-624

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

BOLT - carriage, 3/8 NC x 1-1/2 inch

18шт.

26

492-11038

LOCK WASHER,3/8"

18шт.

27

1320129C2

SHAFT

- beater

1шт.

30

432-2040

COTTER PIN,5/16" x 2 1/2"

Pin, Split (Cotter), 5/16" x 2 1/2"

2шт.

31

495-81092

WASHER,1-7/8" ID x 2-1/2" OD x 1/16" Thk

- flat, 1-25/32 x 2-1/2 x 3/64 inch

1шт.

32

95-81150

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

- flat, 1-13/16 x 2-1/2 x 1/8 inch

1шт.

35

1320268C1

SPACER

- sprocket, left-hand

1шт.

36

1320269C1

SPACER

- sprocket, right-hand

1шт.

37

162172C1

SPACER

- 1-13/16 x 2-1/4 x 1-15/16 inch

1шт.

40

1320115C1

ROD

- door latch

1шт.

41

432-1216

COTTER PIN,3/16" x 1"

2шт.

42

188915A1

HANDLE

- door, left-hand, replaces 1324752C1 handle

1шт.

Ref. 42 - The correct handle for the rock trap is 1324752C2. 188915A1 is used on 2144/2166.

1шт.

43

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

44

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

2шт.

46

1324764C1

SUPPORT TUBE,999 mm Length

TUBE - door, left-hand

1шт.

47

174608C2

BOLT,Hex, 3/8" - 16 x 1 1/2"

- hex, special, 3/8 NC x 1-1/2 inch

4шт.

48

425-106

NUT,3/8"-16, Cl 5

30шт.

49

1320128C1

LINK

- connecting

2шт.
