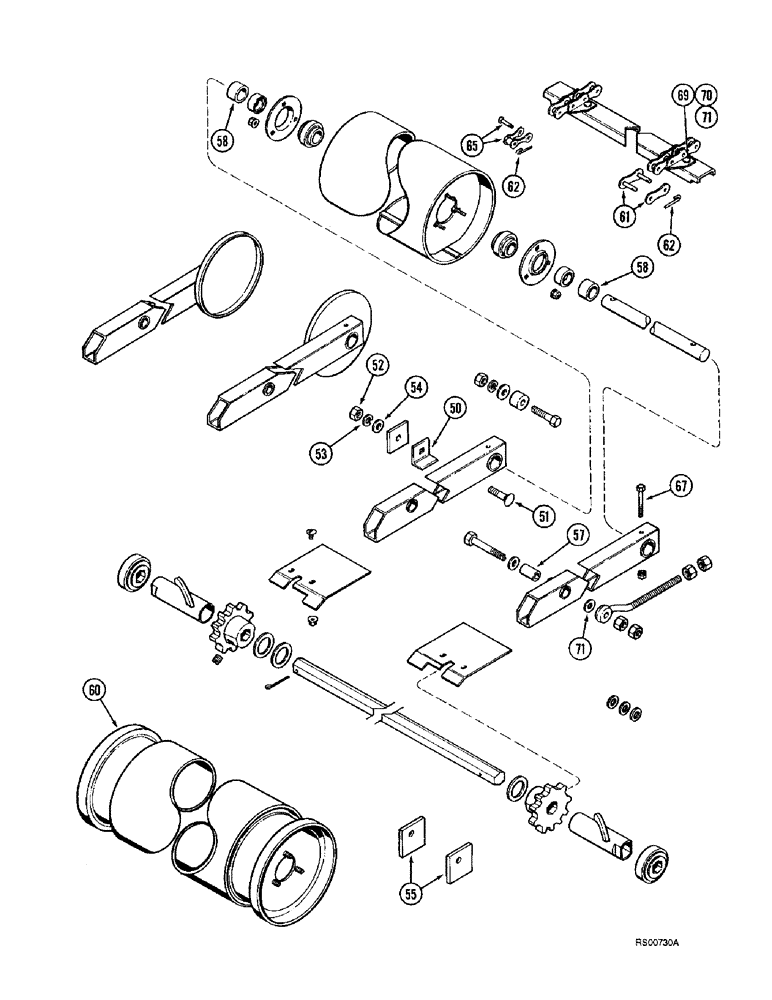

Запчасти Case IH 1680 (9A-38) - FEEDER CONVEYOR (CONTD) (13) - FEEDER

50

1345418C1

ANGLE

- stop bar, without stone retarder

2шт.

51

433-1036

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 5

BOLT - carriage, 5/8 NC x 2-1/4 inch

2шт.

52

425-1010

NUT,5/8"-11, G5

2шт.

53

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

54

498-81008

SQ HOLE WASHER,41/64" x 1 1/4" x .060", Sq Hole

- square hole, 21/32 x 1-1/4 x 1/16 inch

2шт.

55

187225C1

BAR

- upper stop adjusting, with stone retarder

2шт.

57

187217C1

SPACER,7/8" Tube x 1 13/16"

- 7/8 x 1-13/16 inch

2шт.

58

11449P

SPACER,1 1/4" Pipe x 1/2"

- bearing, 1-1/4 x 1/2 inch

2шт.

60

187196C2

DRUM

- conveyor, with stone retarder

1шт.

61

182090C1

LINK,Chain, 41.4mm Pitch

LINK ASSEMBLY - chain (C550 chain) (Includes S pin), Includes: Ref. 62

1шт.

61

1324281C1

LINK,A557, Links x 41.4mm = mm

LINK ASSEMBLY - chain (A557 chain) (Includes S pin), Includes: Ref. 62

1шт.

62

23442R1

PIN,2.36mm OD

- roller S Type, No. 550 chain

1шт.

62

1329837C2

PIN,2.63mm OD

- S type, roller, No. 557 chain

1шт.

65

182127C1

LINK,41.4mm Pitch

- offset, includes pin (C550 chain)

1шт.

65

1324835C1

OFFSET LINK

LINK - offset, includes pin (A557 chain)

1шт.

66

182094C1

LINK,Chain, Link, 41.4mm

- connecting, includes pin (C550 chain)

1шт.

66

1324294C1

LINK,40.893mm Pitch

LINK - connecting, includes pin (A557 chain)

1шт.

67

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

69

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

70

1306680C1

FLANGE NUT

NUT - hex flange, self-locking, special, 3/8 inch NC

1шт.

71

60870R1

WASHER

- flat, 9/16 x 1-1/4 x 3/64 inch

1шт.
