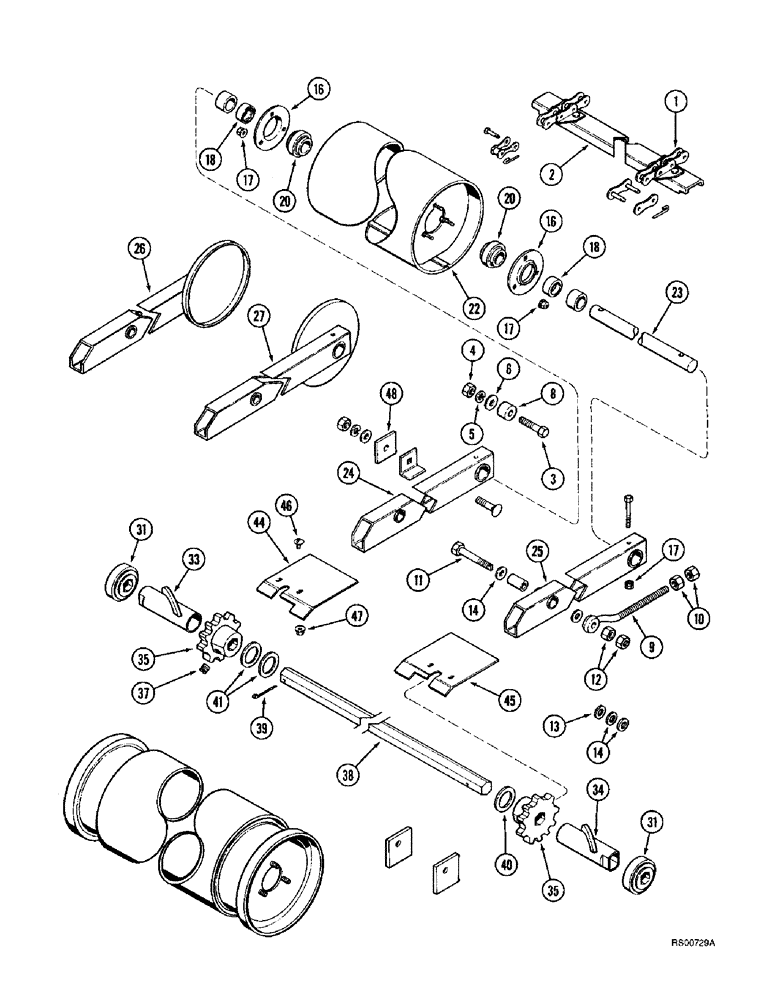

Запчасти Case IH 1680 (9A-36) - FEEDER CONVEYOR (13) - FEEDER

1

117867A1

CHAIN (AG)

CHAIN ASSEMBLY - conveyor, with 10 serrated slats, 60 inch feeder, rice combines only, replaces 1324273C1 chain assembly

1шт.

1

117872A1

CHAIN,Feeder

CHAIN ASSEMBLY - conveyer, with 12 smooth slats, 54-1/2 inch feeder, corn and grain combines, replaces 1324271C91 chain assembly

1шт.

1

117866A1

CHAIN (AG)

CHAIN ASSEMBLY - conveyer, with 9 serrated slats, 54-1/2 inch feeder, corn, grain and rice combines, replaces 1957592C1 chain assembly

1шт.

2

1313191C1

SLAT

- conveyor, for 54-1/2 inch feeder, corn and grain combines, replaces 1313420C2 slat

1шт.

2

1300288C1

CONNECTING STRIP

SLAT - conveyor, for 60 inch feeder, rice combines

1шт.

3

189709C1

BOLT,Hex, 1/2" - 13 x 3"

- hex, special

2шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

6

495-81162

WASHER,17/32" x 1 1/2" x .179"

- flat, 17/32 x 1-1/2 x 11/64 inch

2шт.

8

197211C1

SPACER

- stop, drum

2шт.

9

176508C1

BOLT,5/8" - 11 x 228.60mm

- tightening, special

2шт.

10

425-1010

NUT,5/8"-11, G5

4шт.

11

187218C2

BOLT

BOLT - hex, special, 5/8 NC x 4-1/2 inch

2шт.

12

425-1010

NUT,5/8"-11, G5

4шт.

13

495-81026

WASHER,21/32" x 1 1/2" x .060"

- flat, 21/32 x 1-1/2 x 3/64 inch

1шт.

14

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

2шт.

16

1330461C1

FLANGED BEARING

- bearing, replaces 202909C1 flange

4шт.

17

1306680C1

FLANGE NUT

NUT - hex flange, self-locking, special, 3/8 inch NC

6шт.

18

557995R11

COLLAR

- bearing, with set screw

2шт.

20

619738R91

BALL BEARING,1.2505" ID x 62 mm OD x 1.4375"

- ball

2шт.

22

1957438C1

DRUM

- conveyor, without stone retarder, replaces 1319862C1 drum

1шт.

23

187208C2

ROD

SHAFT - drum,, feeder

1шт.

24

1338287C3

ARM

- drum, LH, with stone retarder, corn and grain combine replaces 1305103C2 arm

1шт.

25

1338288C3

ARM

- drum, RH, with stone retarder, corn and grain, replaces 1305103C2 arm

1шт.

26

1319875C5

ARM

- drum, left-hand, without stone retarder, rice combines

1шт.

27

1319876C5

ARM

- drum, right-hand, without stone retarder, rice combines

1шт.

31

179665C91

BALL BEARING,38.1mm Hex x 85mm OD x 30mm W

BEARING - ball, shaft

2шт.

33

178780C2

SPACER

- sprocket, left-hand

1шт.

34

178781C2

SPACER

- sprocket, right-hand

1шт.

35

1970248C1

SPROCKET ASSY.

SPROCKET - chain, conveyor

2шт.

37

197643C1

SET SCREW

- set, sprocket

4шт.

38

1321440C2

SHAFT

- conveyor

1шт.

39

432-2040

COTTER PIN,5/16" x 2 1/2"

Pin, Split (Cotter), 5/16" x 2 1/2"

2шт.

40

95-81150

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

- flat, 1-13/16 x 2-1/2 x 1/8 inch

1шт.

41

495-81092

WASHER,1-7/8" ID x 2-1/2" OD x 1/16" Thk

- flat, 1-25/32 x 2-1/2 x 3/64 inch

2шт.

44

185818C1

STRIPPER ASSY.

STRIPPER - pivot, left-hand

1шт.

45

185819C1

STRIPPER ASSY.

STRIPPER - pivot, right-hand

1шт.

46

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

4шт.

47

231-5146

FLANGE NUT,3/8"-16

4шт.

48

187347C1

PLATE

BAR - upper stop adjusting, without stone retarder

2шт.
