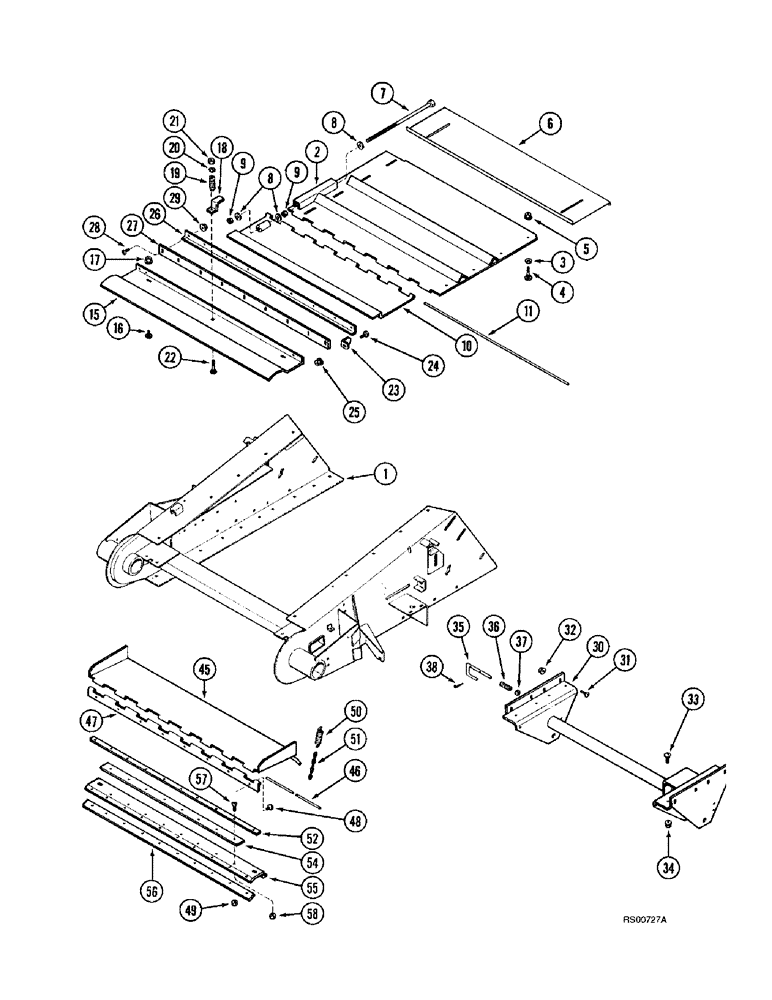

Запчасти Case IH 1680 (9A-32) - FEEDER COVERS AND LIFT BRACKET (13) - FEEDER

1

REF

INSTRUCTION

HOUSING - feeder, See Figure 9A-28, item 5

1шт.

2

186356A1

SHEET

COVER - upper, hinged, includes anti-skid pad, 54-1/2 inch feeder

1шт.

2

186357A1

SHEET

COVER - upper, hinged, includes anti-skid pad, 60 inch feeder

1шт.

3

185129C1

WASHER,13.46mm ID x 38.1mm OD x 4.57mm Thk

WASHER - flat, special, 17/32 x 1-1/2 x 3/16 inch

10шт.

4

415-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 8

BOLT - carriage, 1/2 NC x 1-1/4 inch, grade 8

10шт.

5

186862C1

ANGLE

NUT - hex flange, 1/2 inch NC

10шт.

6

1321639C1

PLATE

COVER - upper front

1шт.

7

1321504C1

SCREW,440mm L, W/ 3/4" - 10 Nut

ROD - adjusting, includes nut

1шт.

8

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

4шт.

9

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

3шт.

10

180556C91

DOOR

- feeder, includes decal

1шт.

11

175907C1

ROD

- hinge

1шт.

15

197523C3

COVER

- feeder top

1шт.

16

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - carriage, 1/2 NC x 1 inch

2шт.

17

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex flange, self-locking, special, 1/2 inch NC, grade 8

2шт.

18

184645C1

CLIP

- latch, door

1шт.

19

7422T

SPRING

- latch, door

1шт.

20

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

21

425-106

NUT,3/8"-16, Cl 5

2шт.

22

411-636

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 2

BOLT - carriage, 3/8 NC x 2-1/4 inch, grade 2

1шт.

23

1322144C1

ANGLE

- door stop

2шт.

24

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

2шт.

25

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

26

197527C2

ANGLE

- support, feeder top seal

1шт.

27

634248R2

SEAL,55mm W x 1175.96mm L

- feeder, top

1шт.

28

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch

9шт.

29

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

9шт.

30

1541618C1

SUPPORT ASSY.

BRACKET - lift, 54-1/2 inch feeder

1шт.

30

1541617C1

SUPPORT ASSY.

BRACKET - lift, 60 inch feeder

1шт.

31

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - carriage, 1/2 NC x 1-1/4 inch

1шт.

32

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex flange, self-locking, special, 1/2 inch NC, grade 8

8шт.

34

231-5146

FLANGE NUT,3/8"-16

8шт.

35

197849C1

ROD

- cylinder lift lock

1шт.

36

M296

SPRING

- rod, lock

1шт.

37

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

1шт.

38

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

45

193612C2

DOOR

- lower

1шт.

46

175931C1

ROD

- hinge, door

1шт.

47

193611C2

HINGE

- feed plate

1шт.

49

231-5146

FLANGE NUT,3/8"-16

8шт.

50

635503R1

SPRING,148.8mm Free Length

- latch, lower door

2шт.

51

167570C1

CHAIN,203.2mm L

- latch, lower door

2шт.

52

197526C1

SEALING STRIP

- seal, lower door

1шт.

54

1319964C1

STRIP

BAR - spacing, support

1шт.

55

1319960C1

SUPPORT

- feeder, lower rear

1шт.

56

1319962C1

SEAL

- rear, feeder

1шт.

57

443-11012

SCREW,Cross Flat Hd, #10-24 x 3/4"

- machine, flat Phillips, No. 10 NC x 3/4 inch

8шт.

58

196922C1

LOCK NUT

- hex, self-locking, No. 10

8шт.

33

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

8шт.

48

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

8шт.
