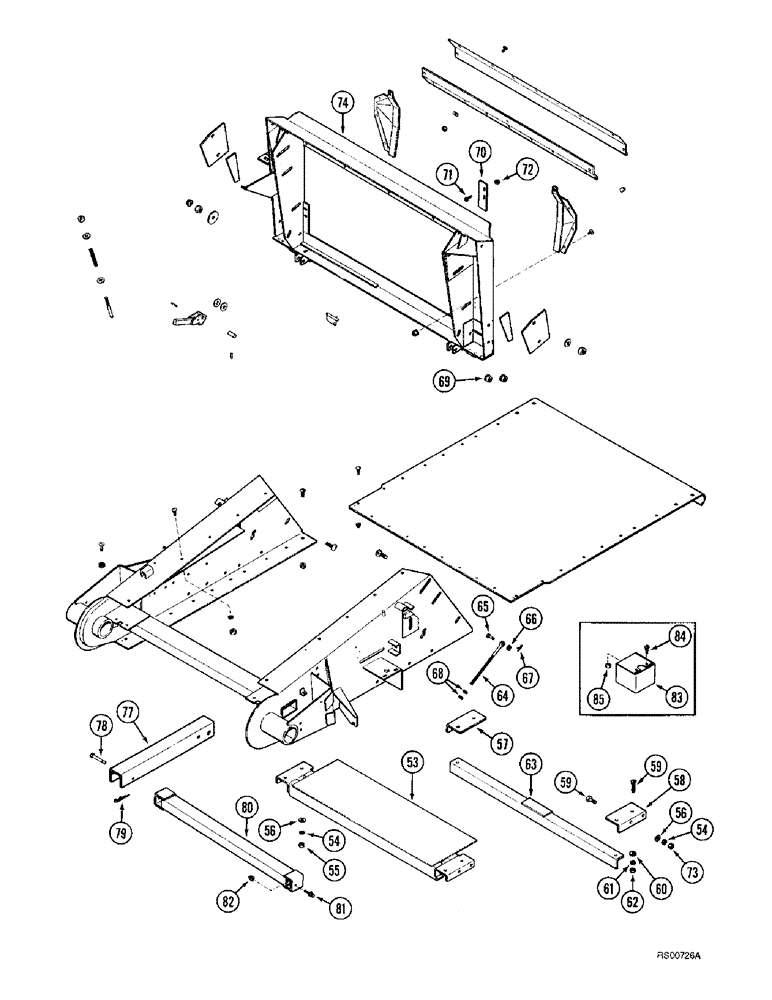

Запчасти Case IH 1680 (9A-30) - FEEDER HOUSING AND ADAPTER (CONTD) (13) - FEEDER

53

1345332C2

SUPPORT

- reinforcement, models with rock trap

1шт.

54

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

55

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

56

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

2шт.

57

175913C1

ANGLE

- adapter, models without rock trap

1шт.

58

175914C1

ANGLE

- adapter, models without rock trap

1шт.

59

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

60

498-81008

SQ HOLE WASHER,41/64" x 1 1/4" x .060", Sq Hole

- square hole, 21/32 x 1-1/4 x 1/16 inch

2шт.

61

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

62

425-1010

NUT,5/8"-11, G5

2шт.

63

1319745C1

SUPPORT ASSY.

STIFFENER - support, models without rock trap

1шт.

64

1321735C2

BOLT,1/2" - 13 x 310mm, Gr 8

EYEBOLT - adjusting

2шт.

65

439-5836

HEADED PIN,12.7mm OD x 57.15mm L

PIN - headed, 1/2 x 2-1/4 inch

2шт.

66

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

2шт.

67

432-1216

COTTER PIN,3/16" x 1"

2шт.

68

329-108

NUT,1/2"-13, G8

4шт.

69

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

70

181646C1

SUPPORT

PLATE - face wear, for rice models

2шт.

71

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch

4шт.

72

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

73

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

74

1321954C4

SHIELD

ADAPTER - feeder

1шт.

77

197554C3

CHANNEL

- lift cylinder lock

1шт.

78

439-1652

HEADED PIN,9.53mm OD x 82.55mm L

PIN - headed, 3/8 x 3-1/4 inch, grade 2

1шт.

79

586591R1

COTTER PIN

PIN - cotter, hair, 1/8 inch

1шт.

80

187213C1

SUPPORT

- rear lower, models with rock trap

1шт.

81

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

82

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

83

1327992C2

GUARD

SHIELD - sensor, feeder

1шт.

84

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

85

131-97

SPRING NUT,Tinn, U, 5/16"-18

- U-type, 5/16 inch NC

2шт.
