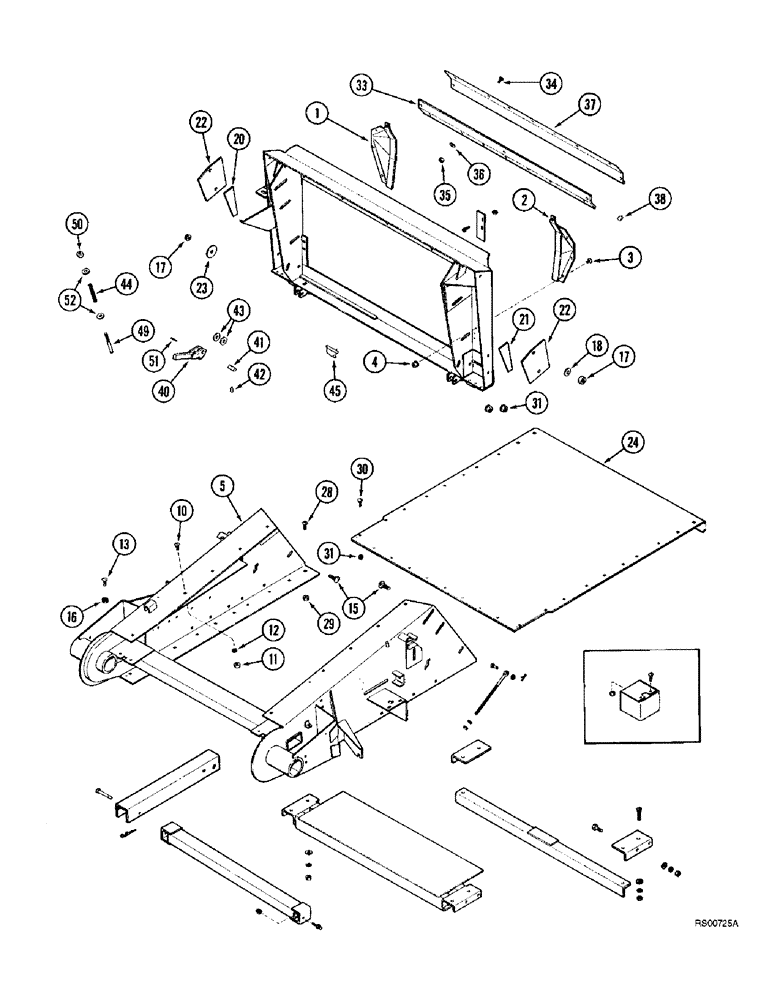

Запчасти Case IH 1680 (9A-28) - FEEDER HOUSING AND ADAPTER (13) - FEEDER

1

184853C1

DEFLECTOR

- front, left-hand

1шт.

2

184854C1

DEFLECTOR

- front, right-hand

1шт.

3

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

8шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

8шт.

5

1321459C92

HOUSING ASSY.

HOUSING - feeder, includes decal, for 54-1/2 inch feeder

1шт.

5

1321460C92

HOUSING ASSY.

HOUSING - feeder, includes decal, for 60 inch feeder

1шт.

10

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

2шт.

11

425-106

NUT,3/8"-16, Cl 5

2шт.

12

492-11038

LOCK WASHER,3/8"

2шт.

13

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

3шт.

14

498-81007

SQ HOLE WASHER,17/32" x 1 1/2" x .120", Sq Hole

- flat, square hole, 21/32 x 1-1/4 x 1/16 inch

6шт.

15

433-1028

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

BOLT - carriage, 5/8 NC x 1-3/4 inch

6шт.

16

231-5146

FLANGE NUT,3/8"-16

3шт.

17

231-14110

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

6шт.

18

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

4шт.

20

1327752C1

FOAM INSULATION

- side, left-hand

1шт.

21

1327753C1

FOAM INSULATION

- side, right-hand

1шт.

22

1327737C2

PLATE

COVER - side

2шт.

23

534939R1

WASHER

- flat, 21/32 x 2-1/2 x 7/64 inch

2шт.

24

1324572C1

PANEL

PLATE - lower, for 54-1/2 inch feeder

1шт.

Ref: #24 - 1324572c1 is not perforated

1шт.

24

1324574C1

PANEL

PLATE - lower, for 60 inch feeder

1шт.

28

415-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 8

BOLT - carriage, 1/2 NC x 1-1/4 inch, grade 8

4шт.

29

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex flange, self-locking, special, 1/2 inch NC, grade 8

4шт.

31

329-286

FLANGE NUT,Flg, 3/8"-16, G8

8шт.

33

1319473C1

COVER

- feeder, upper

1шт.

34

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

12шт.

35

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

12шт.

36

446363

WASHER,5/16"

- flat, 3/8 x 7/8 x 1/16 inch

12шт.

37

1319475C1

COVER

- adapter

1шт.

38

1321640C1

GROMMET

- cover

2шт.

40

179024C1

HINGE

HANDLE - lock, latch

2шт.

41

177141C1

PIN,15.88mm OD x 41mm L

- pivot, handle

2шт.

42

138-2005

PIN,1/4" x 1", Coiled

2шт.

43

495-81175

WASHER,21/32" x 1" x .120"

- flat, 21/32 x 1 x 7/64 inch

4шт.

44

367833R1

SPRING

- rod, latch

2шт.

45

1338021C1

PIN,7.94mm OD

- retaining

2шт.

49

177138C1

ROD

- latch

2шт.

50

231-1435

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

2шт.

51

38-1816

LOCK PIN,1/8" x 1", Slotted

Pin, 1/8" x 1", Slotted

2шт.

52

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

4шт.

30

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

8шт.
