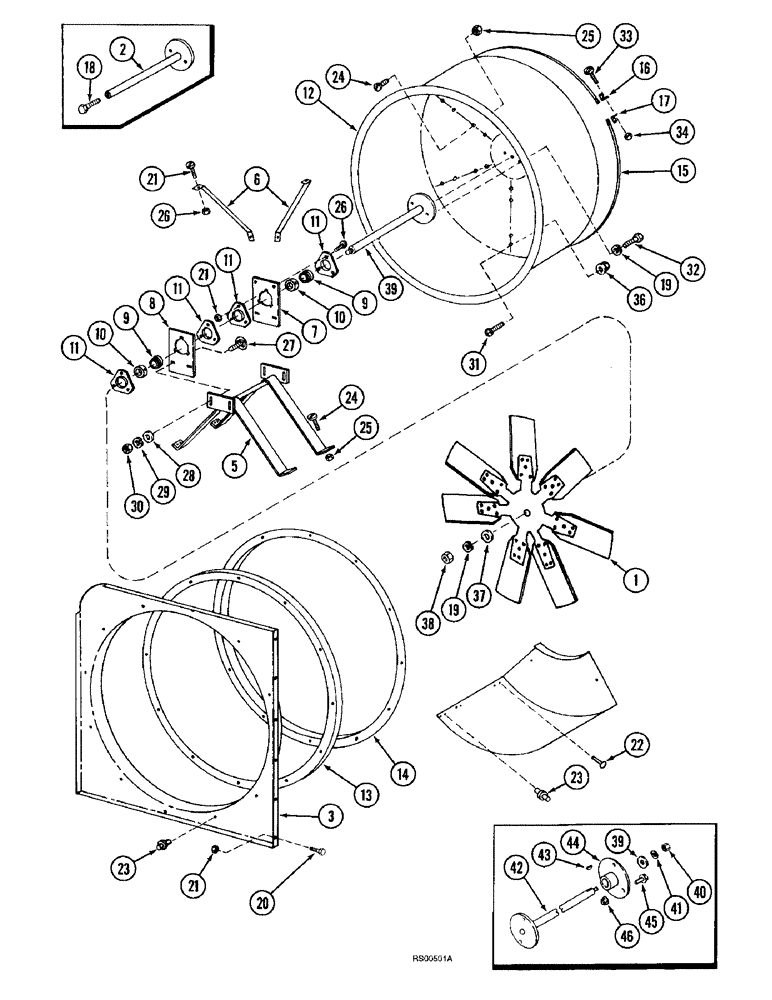

Запчасти Case IH 1680 (2-06) - ROTARY AIR SCREEN (01) - ENGINE

1

1315541C1

FAN

- rotary air screen, prior to P.I.N. JJC0038001

1шт.

1

1957272C2

FAN

- rotary air screen, P.I.N. JJC0038001 and after

1шт.

2

194228C2

SHAFT

- rotary air screen fan, prior to P.I.N. JJC0038001

1шт.

3

1319671C6

ADAPTER

SUPPORT - rotary air screen

1шт.

4

194224C1

BAFFLE ASSY.

BAFFLE - rotary air screen

1шт.

5

194226C2

SUPPORT

- bearing

1шт.

6

194221C2

STAY

SUPPORT - bearing

2шт.

7

164605C1

LARGE PLATE

SUPPORT - bearing flange

1шт.

8

164604C1

BAR

SUPPORT - bearing flange, front

1шт.

9

455957R92

BEARING ASSY,19.05mm ID x 47mm OD x 14mm W

- ball, rotary air screen

2шт.

10

455958R11

COLLAR,19.05mm ID x 32.94mm OD x 13.49mm W

- lock, bearing

2шт.

11

H333534

FLANGED BEARING

FLANGE - bearing

4шт.

12

1977217C1

SIEVE

- rotary screen, fine mesh, replaces 194222C1 and 1970451C1 regular mesh sieves

1шт.

13

1338011C1

SEALING RING

RETAINER - brush seal

1шт.

14

164627C1

RETAINER

FLANGE - brush seal

1шт.

15

164615C92

BRUSH, COMMUTATOR

BRUSH ASSEMBLY - rotary air screen (Includes items 33 and 34), Includes: Ref. 16 & 17

1шт.

16

164616C1

ANGLE

CLIP - brush, short

1шт.

17

164617C1

ANGLE

CLIP - brush, long

1шт.

18

26310R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8

- hex, 3/8 NC x 1 inch grade 8, prior to P.I.N. JJC0038001

1шт.

19

492-11038

LOCK WASHER,3/8"

3шт.

20

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

19шт.

20

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

21

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

30шт.

22

104235

RIVET,FH, 3/16" x 1/2"

4шт.

23

163485C1

RIVET

- pop, 3/16 x 13/32 inch

12шт.

24

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

BOLT - serrated slotted truss head, 1/4 NC x 1/2 inch

12шт.

25

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

20шт.

26

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch

10шт.

27

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

4шт.

28

495-81112

WASHER,.344" x 3/4" x .120"

- flat, 11/32 x 3/4 x 7/64 inch

4шт.

29

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

30

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

31

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

- machine, pan Phillips, No. 10 NC x 1/2 inch

12шт.

32

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

2шт.

33

470-11016

SCREW,Pan HD, #10 - 24 x 1"

- machine, pan head slotted, No. 10 NC x 1 inch

1шт.

34

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

1шт.

36

231-51409

SERRATED NUT,Flg, USR, #10-24

12шт.

37

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

38

125-10003

NUT,3/8"-16, G5, LH

P.I.N. JJC0038001 and after 3/8"-16, G5, LH

1шт.

1338452C1

SET OF PARTS

KIT - repair, fan hub and shaft, P.I.N. JJC0038001 and after, Includes: Ref. 39 - 46

1шт.

39

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

40

125-10002

SPECIAL NUT,3/8"-16, G5, LH

1шт.

41

632019R1

LOCK WASHER,3/8"

L.H. twist 3/8"

1шт.

42

1968544C2

SHAFT ASSY.

SHAFT - rotary air screen fan

1шт.

43

126-116

WOODRUFF KEY,#9, 3/16" x 3/4", HT

1шт.

44

1338442C1

HUB ASSY.

HUB - rotary screen fan

1шт.

45

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

3шт.

46

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

3шт.
