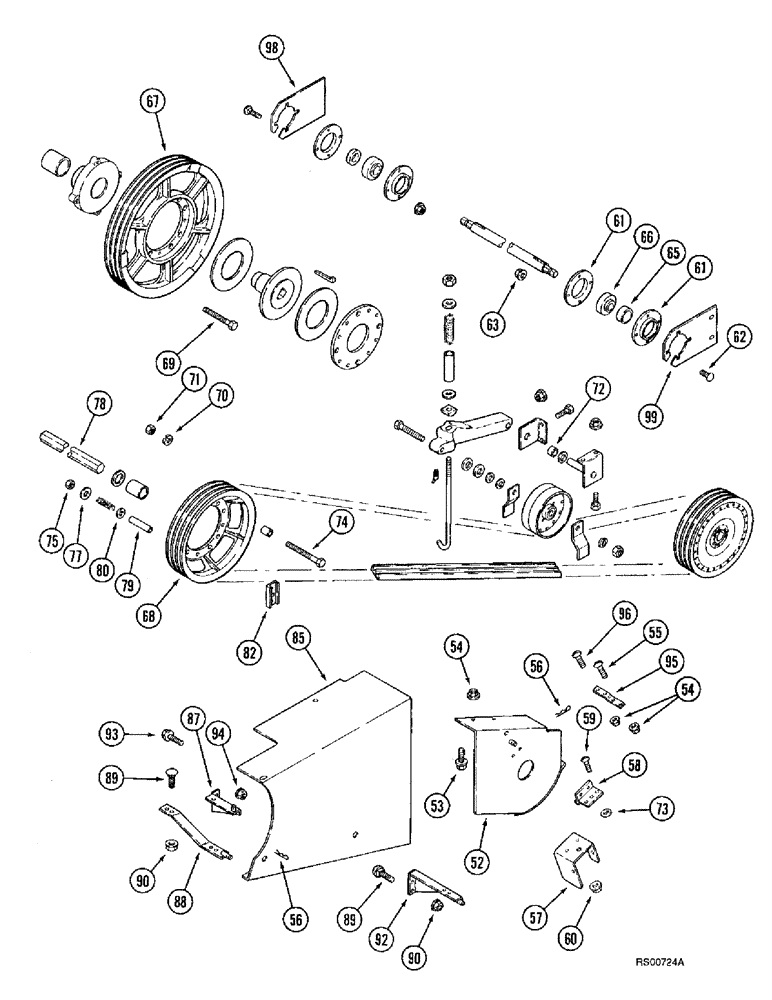

Запчасти Case IH 1680 (9A-26) - FEEDER JACKSHAFT DRIVE (CONTD) (13) - FEEDER

52

1321876C1

GUARD

SHIELD - jackshaft drive, front

1шт.

53

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

54

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

55

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

2шт.

56

480523R1

HAIR PIN COTTER

1шт.

57

1329953C1

SHIELD

- end

1шт.

58

10810R

HINGE

- shield

1шт.

59

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

4шт.

60

231-5146

FLANGE NUT,3/8"-16

4шт.

61

619333R1

FLANGED BEARING

- bearing, right-hand

2шт.

62

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - carriage, 1/2 NC x 1 inch

4шт.

63

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

65

664598R11

COLLAR

- lock, bearing

1шт.

66

664597R91

BALL BEARING,1.5005" ID x 90 mm OD x 1.625"

- ball, jackshaft, right-hand

1шт.

67

1305297C1

PULLEY

- driven, 22-9/16 inch OD, See Figure 9A-22, item 59

1шт.

68

1305288C1

PULLEY

- drive, 16-11/16 inch OD, feeder

1шт.

69

326-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 8

4шт.

70

492-11038

LOCK WASHER,3/8"

4шт.

71

329-106

NUT,3/8"-16, G8

4шт.

72

M74461

SPACER,26.6mm ID x 33.4mm OD x 19mm L

Support pin 1" Pipe x 3/4"

1шт.

73

151670C1

SHIM

SHIM - .036 inch

1шт.

74

1315319C1

BOLT,Hex, 3/8" - 16 x 6", Gr 8

- hex, special, 3/8 x 6 inch, grade 8

8шт.

75

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

8шт.

77

495-81143

WASHER,13/32" x 1 1/2" x .120"

16шт.

78

1321440C2

SHAFT

- conveyor, feeder

1шт.

79

1305370C3

SPACER

- spring clutch

8шт.

80

495-81129

WASHER,13/32" x 3/4" x .120"

- flat, 13/32 x 3/4 x 7/64 inch

8шт.

81

95-81150

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

- flat, 1-13/16 x 2-1/2 x 1/8 inch

1шт.

82

1315316C1

SUPPORT

- spring

2шт.

85

1321866C1

GUARD

SHIELD - jackshaft drive, 54-1/2 inch feeder

1шт.

85

1321883C1

GUARD

SHIELD - drive, 60 inch feeder

1шт.

86

480523R1

HAIR PIN COTTER

4шт.

87

1327780C1

SUPPORT

- shield, upper rear

1шт.

88

1321851C1

SUPPORT

- shield, lower rear

1шт.

89

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

2шт.

90

231-5146

FLANGE NUT,3/8"-16

2шт.

92

1321878C2

SUPPORT

- shield, lower front

1шт.

93

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

94

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

95

1321880C1

SUPPORT

- shield, front

1шт.

96

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

2шт.

97

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

98

1321628C2

SUPPORT

- jackshaft bearing, left-hand

1шт.

99

1321629C2

SUPPORT

- jackshaft bearing, right-hand

1шт.

101

194652C1

PIVOT

- rod

1шт.
